Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

Voltage Signal: Testing and Inspection

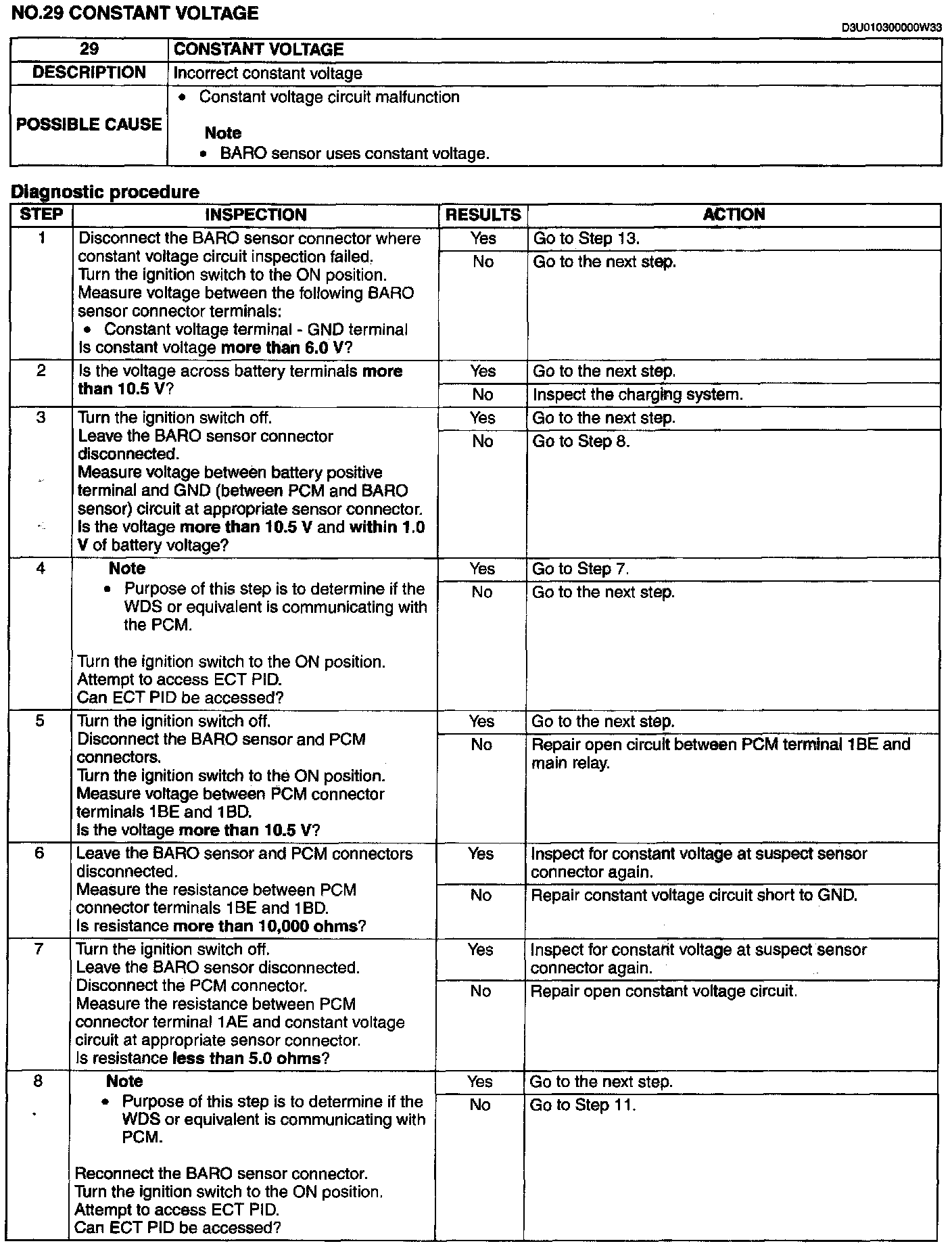

Step 1 - 8:

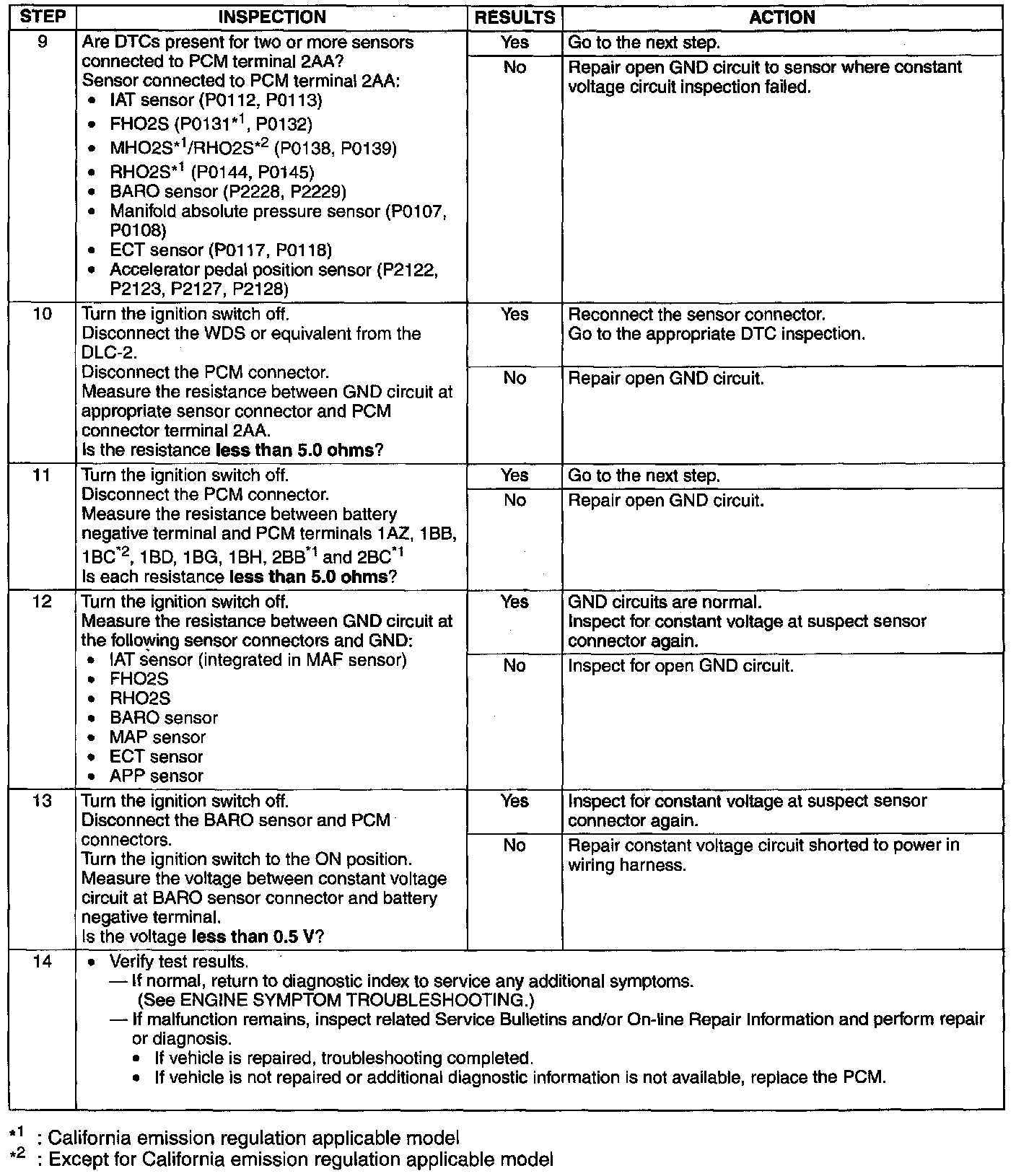

Step 9 - 14:
