Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Locations

Headlamp Control Module: Locations

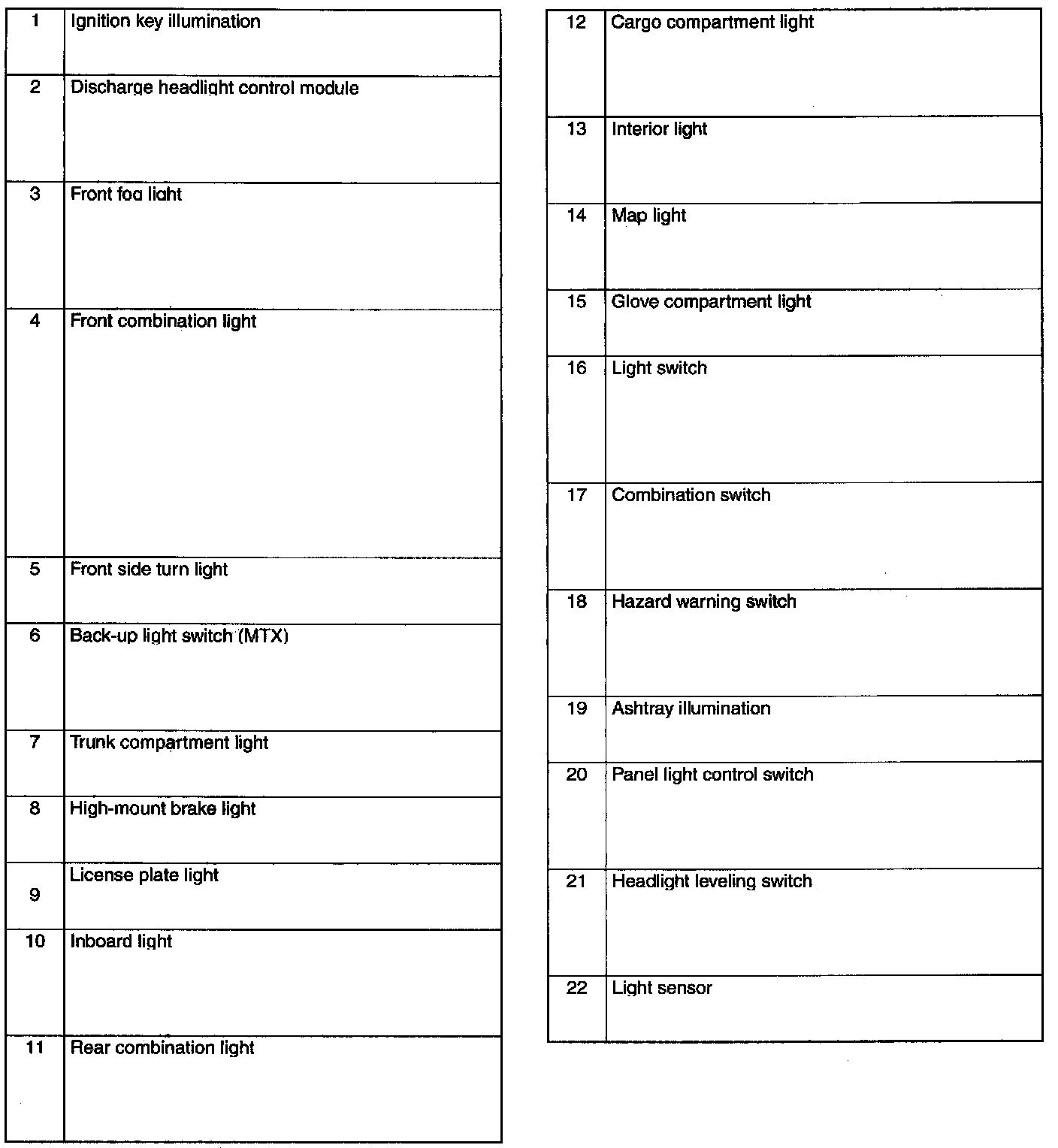

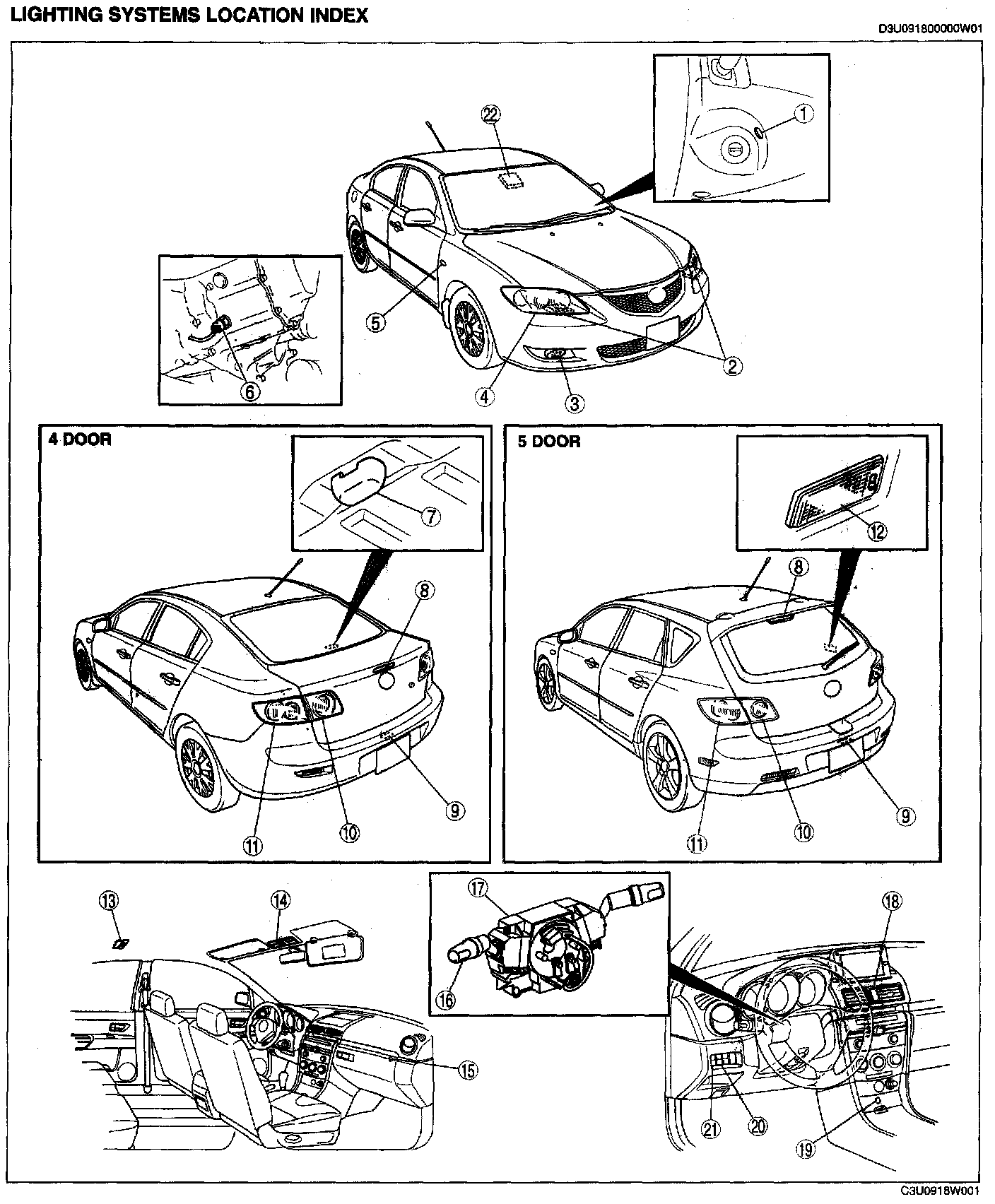

Lighting Systems Location Index Part 1:



Lighting Systems Location Index Part 2:

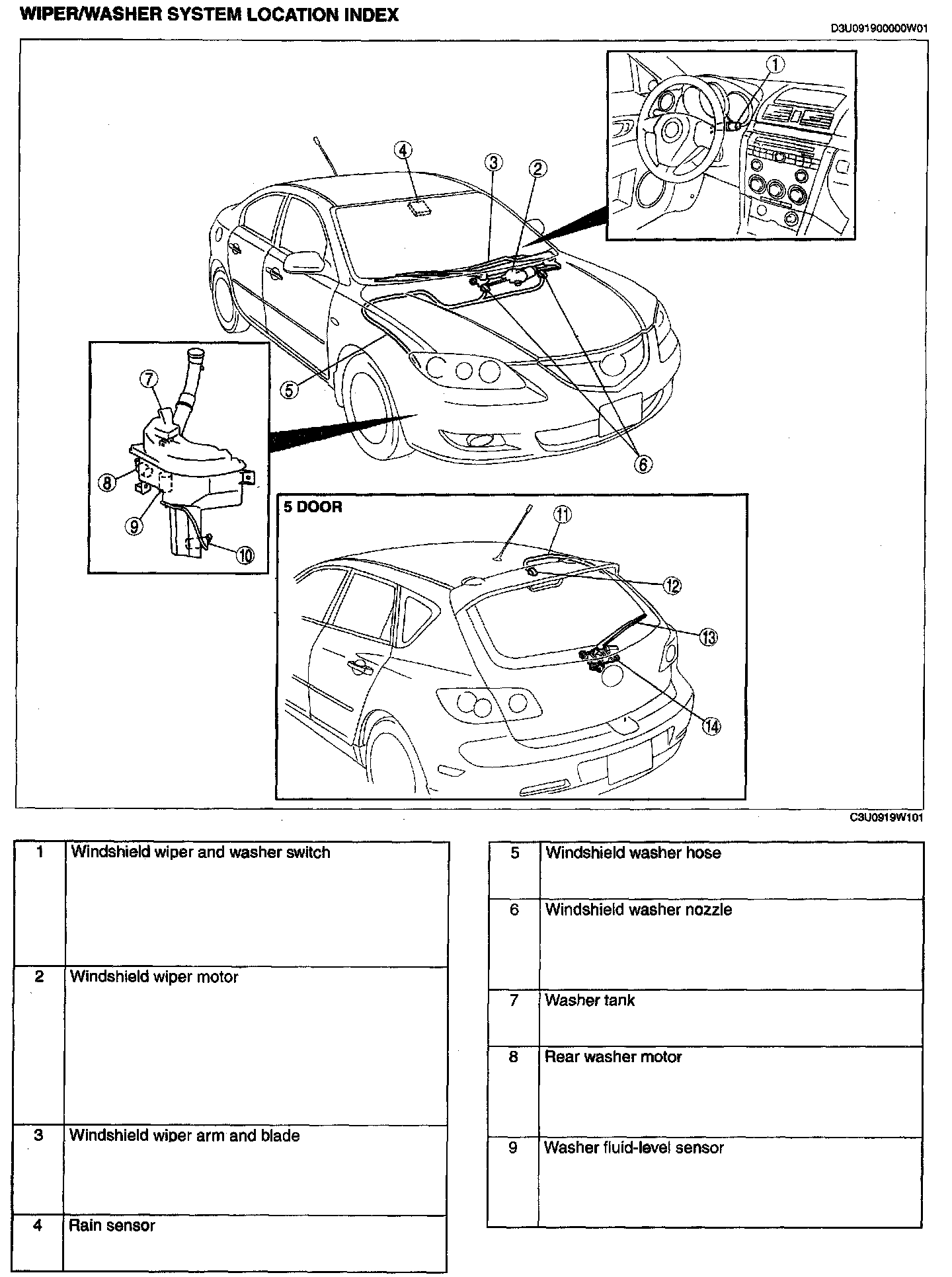

Wiper/Washer System Location Index Part 1:

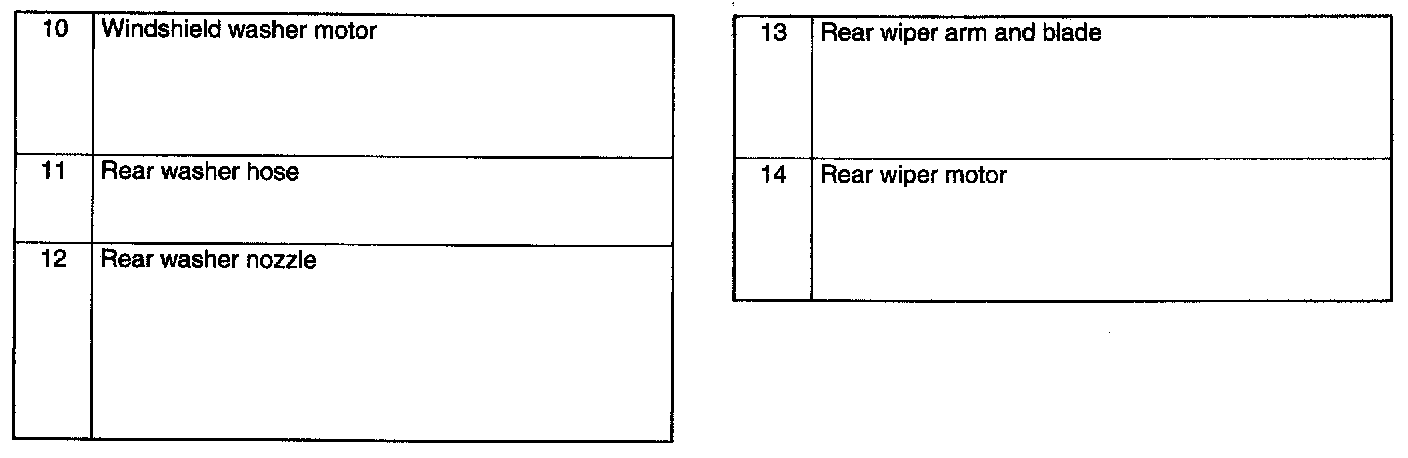

Wiper/Washer System Location Index Part 2:
