Mazda
>>
2004
>>
3 L4-2.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Connector Locations
Connector Locations

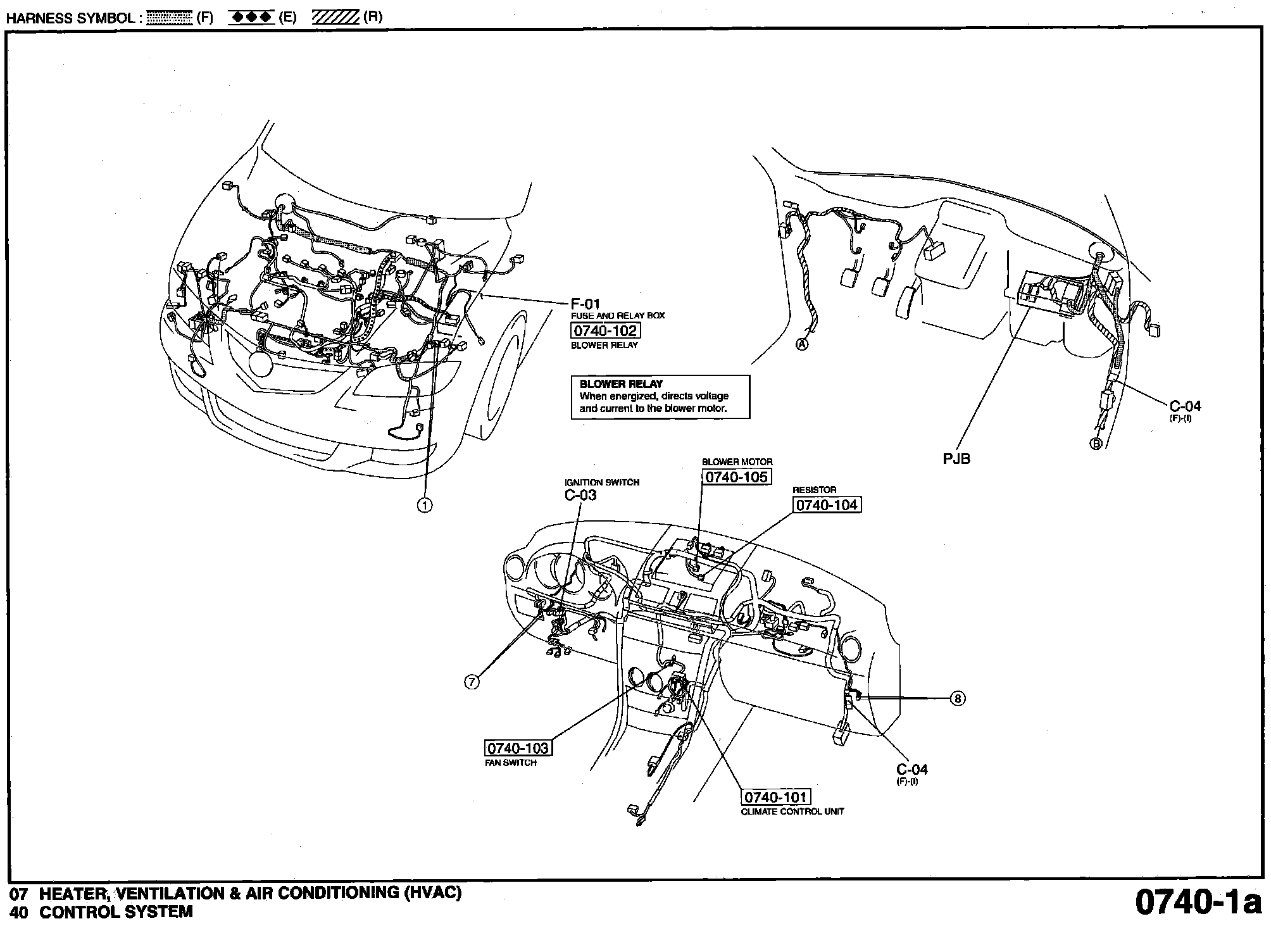

Routing View 0740-1a:
