Home
>>
Mazda
>>
2004
>>
3 L4-2.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Component Locations
Component Locations

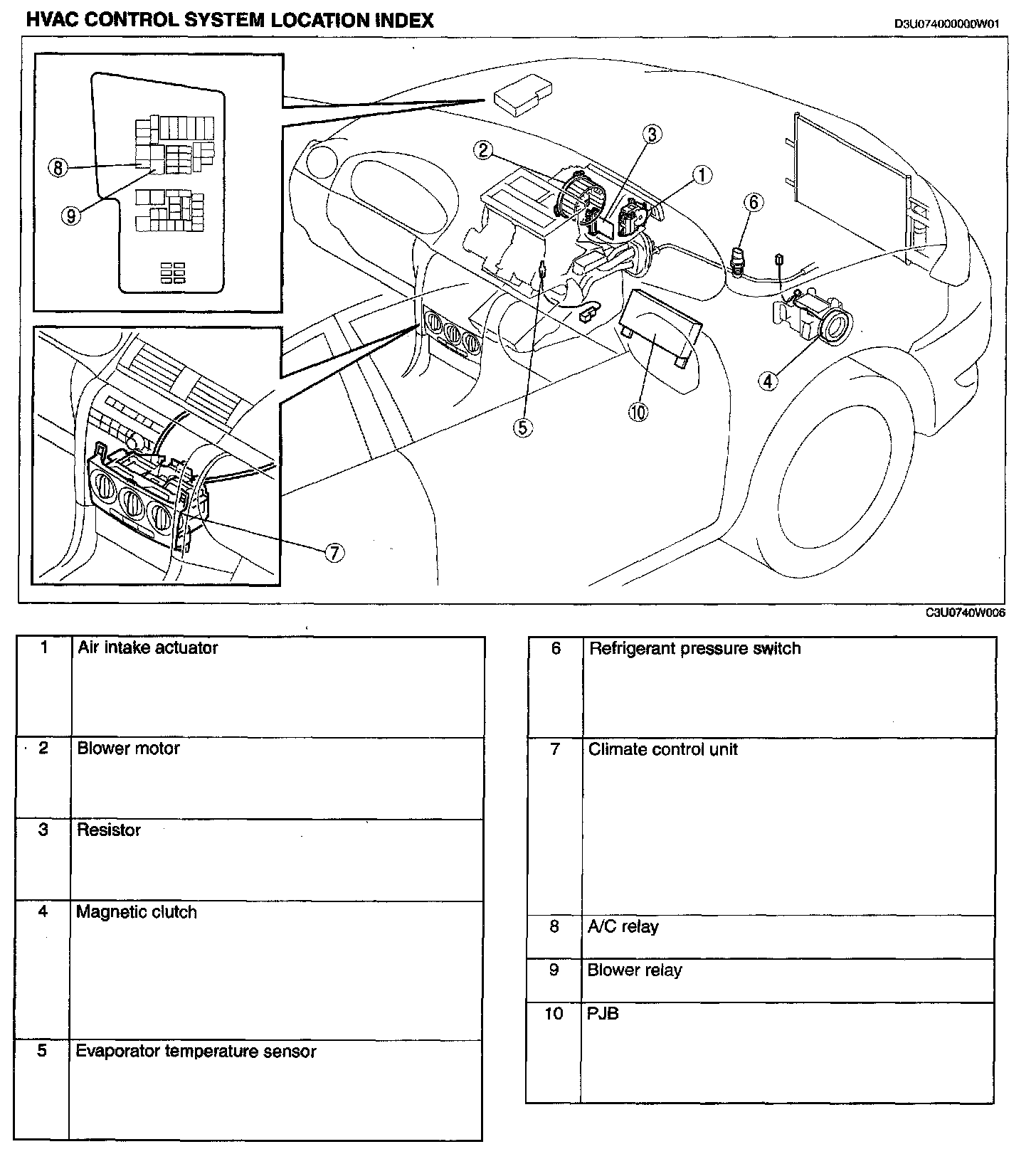

HVAC Control System Location Index:
