Home >> Mazda >> 2003 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> PID/Data Monitor Item Table

PID/Data Monitor Item Table

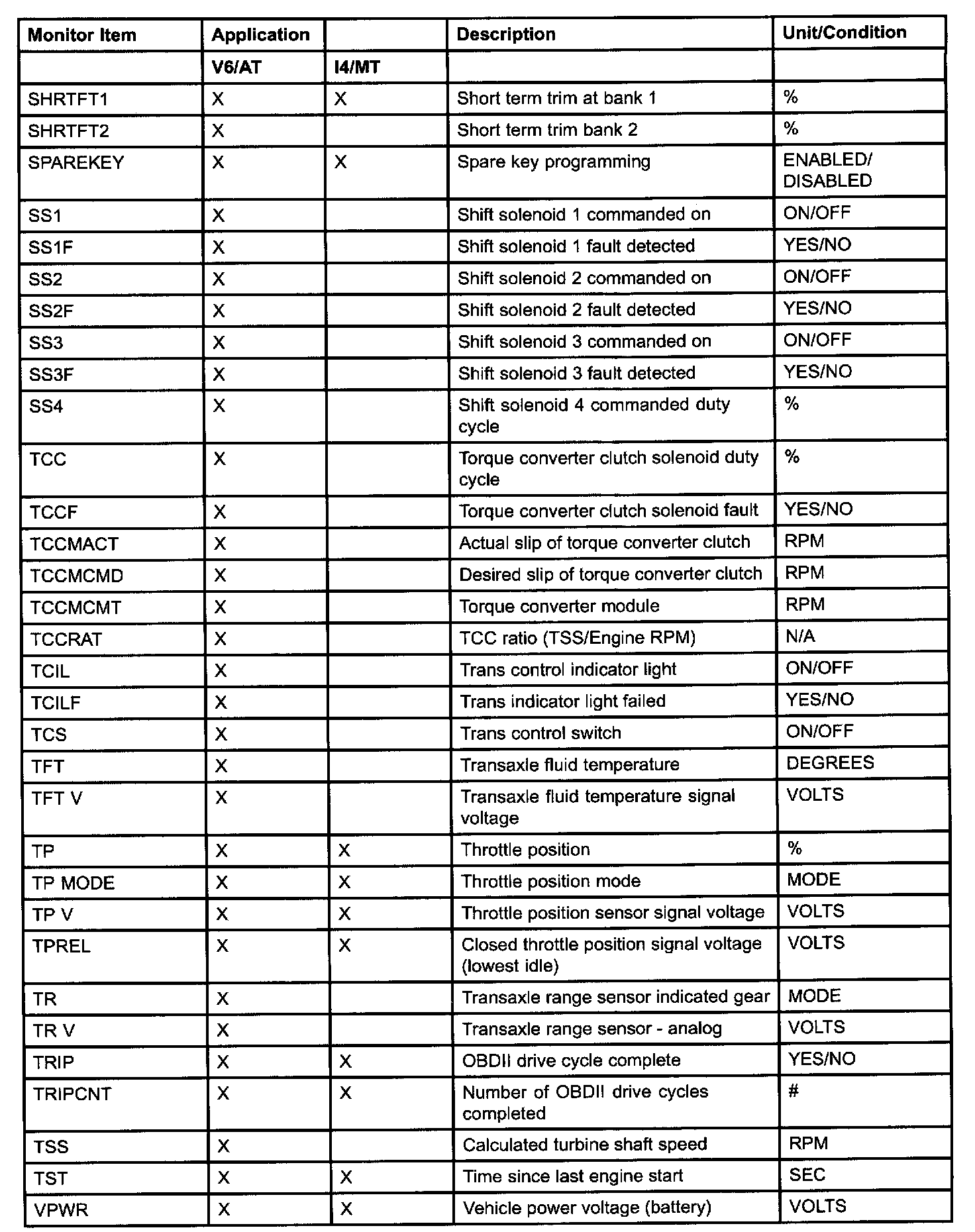

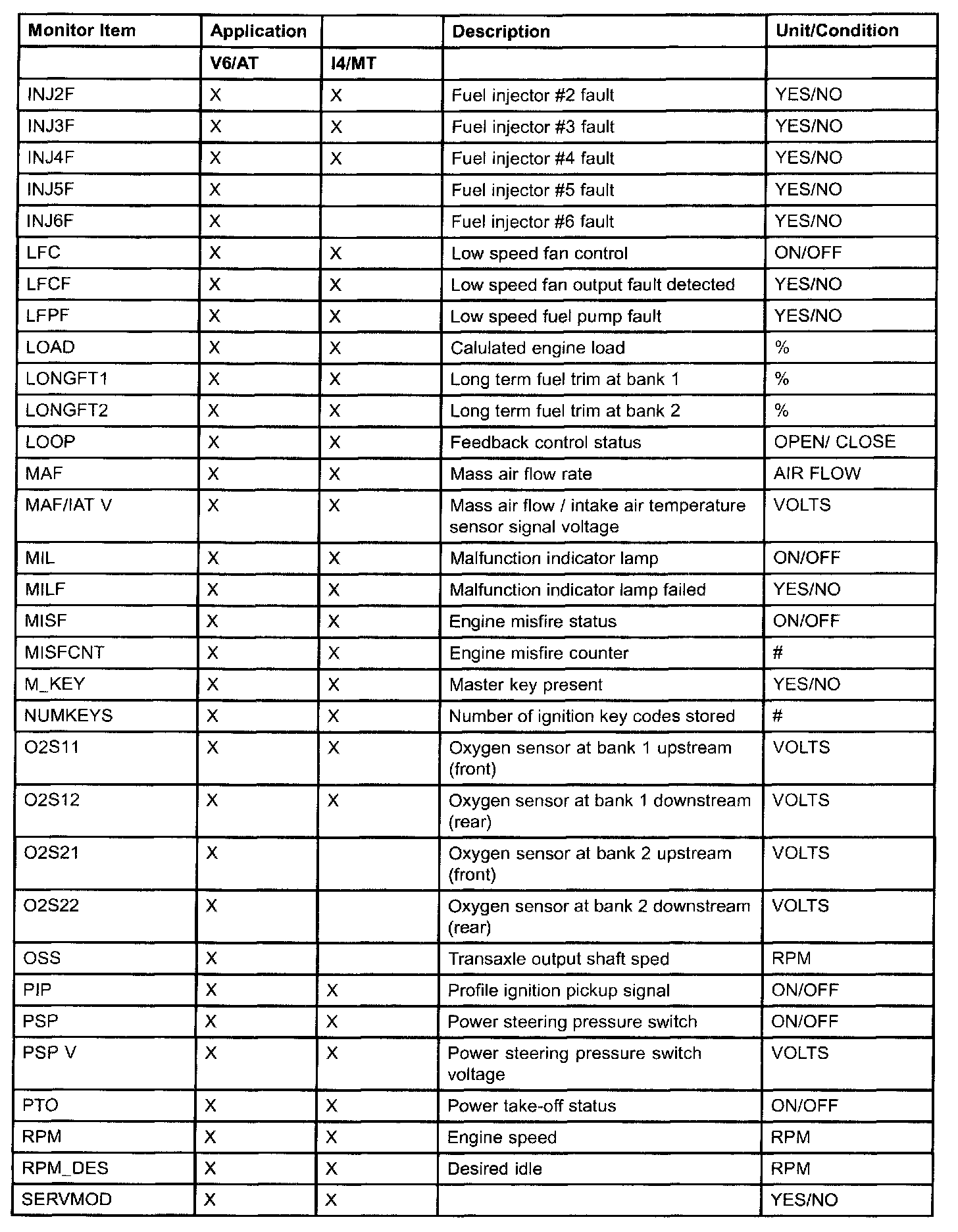

PID/Data Monitor Item Table Part 1:

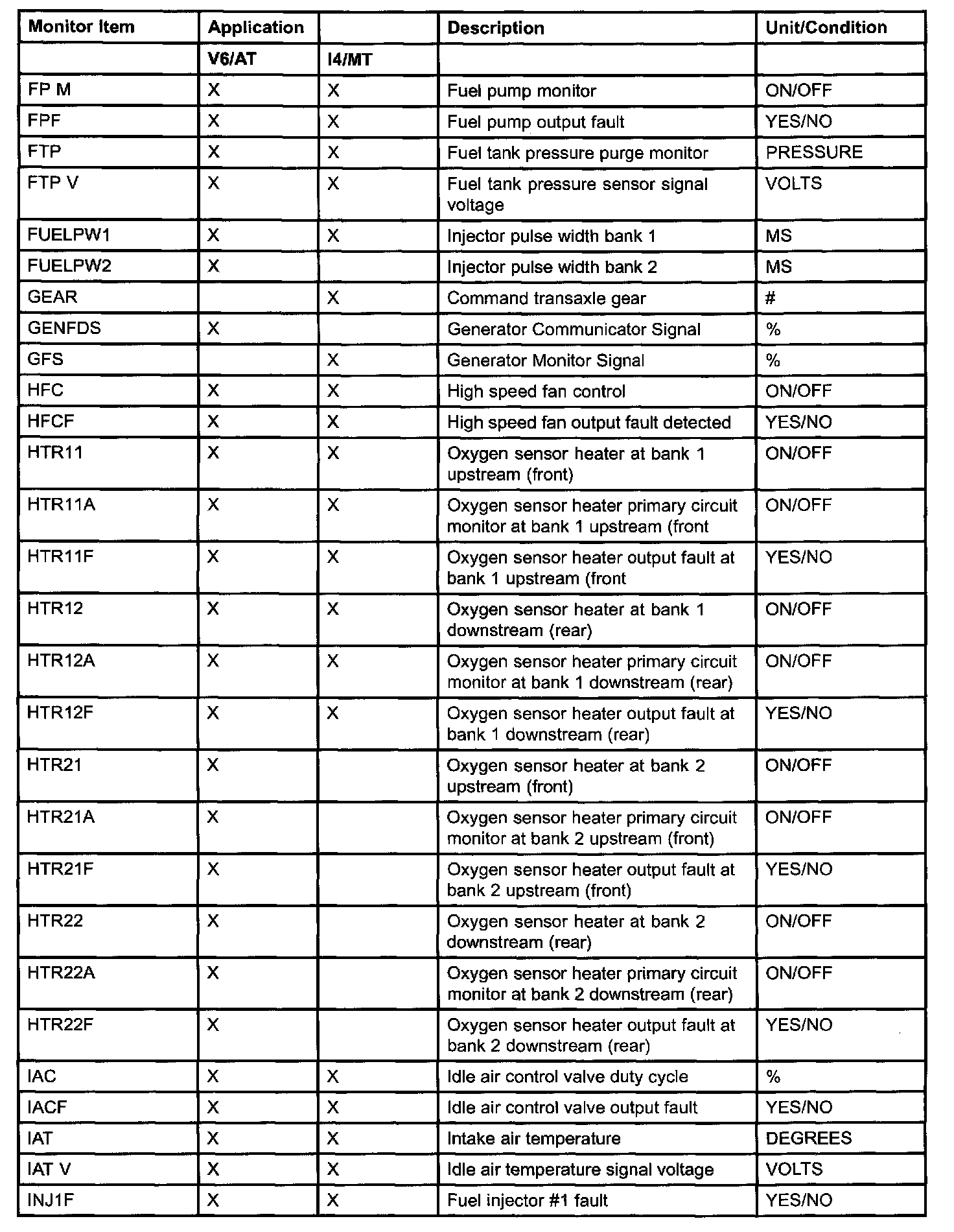

PID/Data Monitor Item Table Part 2:

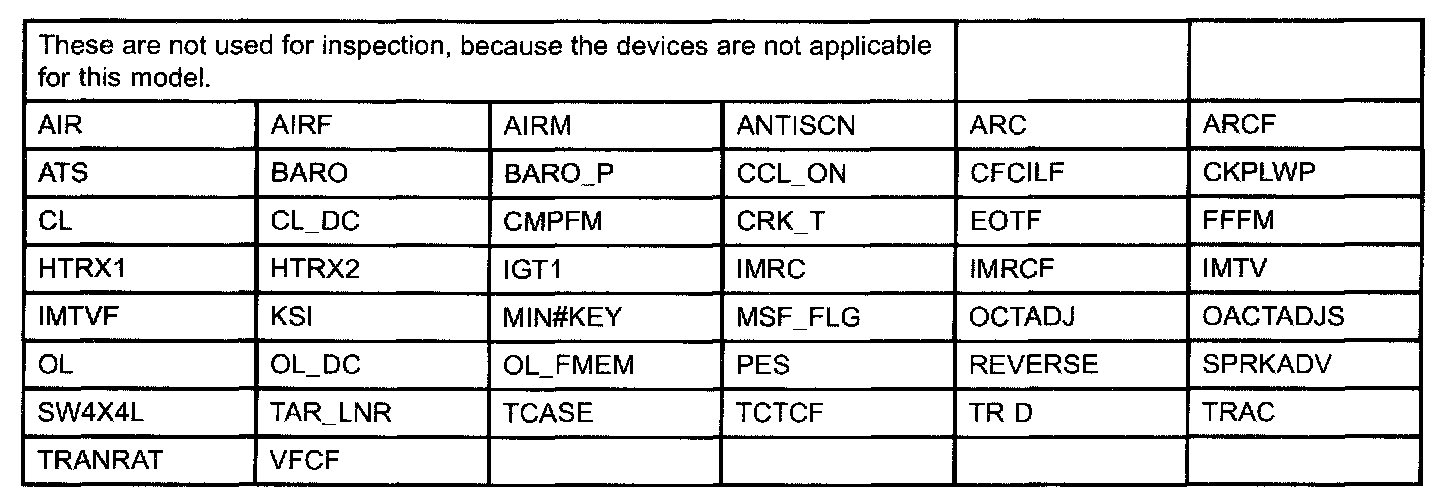

PID/Data Monitor Item Table Part 3:

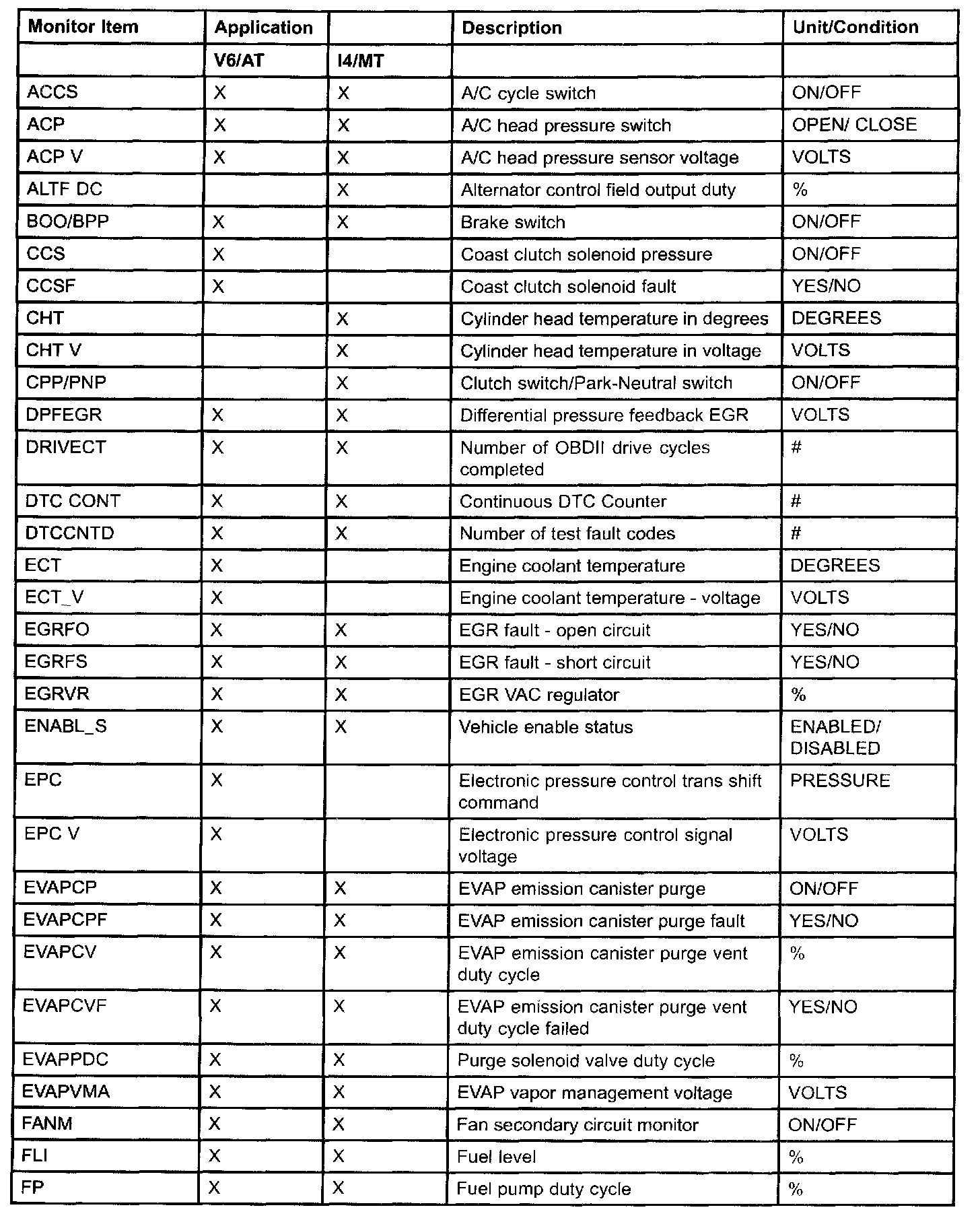

PID/Data Monitor Item Table Part 4:

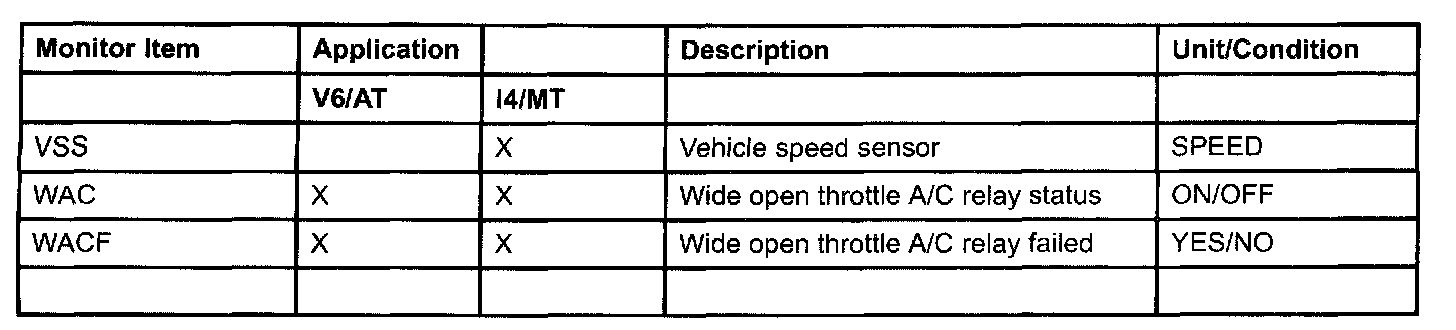

PID/Data Monitor Item Table Part 5:
