Home >> Mazda >> 2003 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Temperature Sensor >> Service and Repair

Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Removal and Installation

1. Remove the generator. Refer to GENERATOR 2.0L.

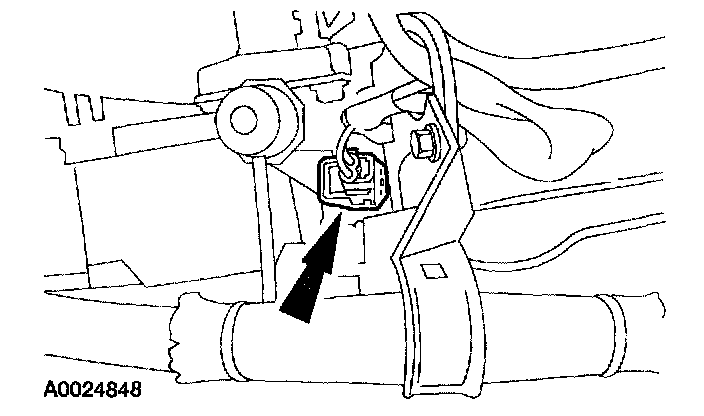

2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.




3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
