Camshaft Position Sensor: Service and Repair

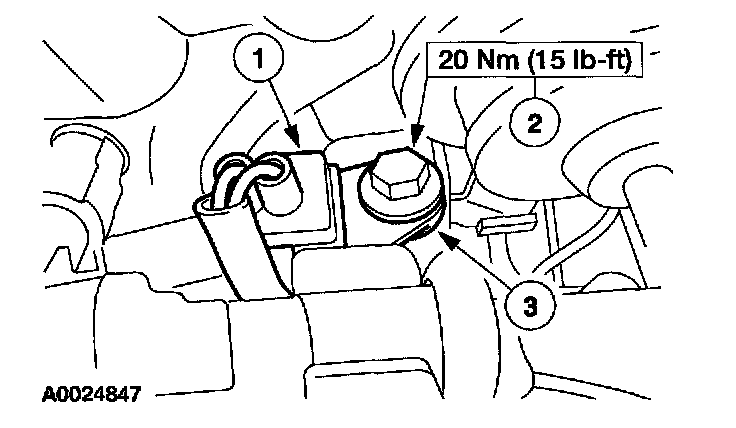

CAMSHAFT POSITION (CMP) SENSORRemoval and Installation
1. Remove the camshaft position (CMP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.
2. To install, reverse the removal procedure.
