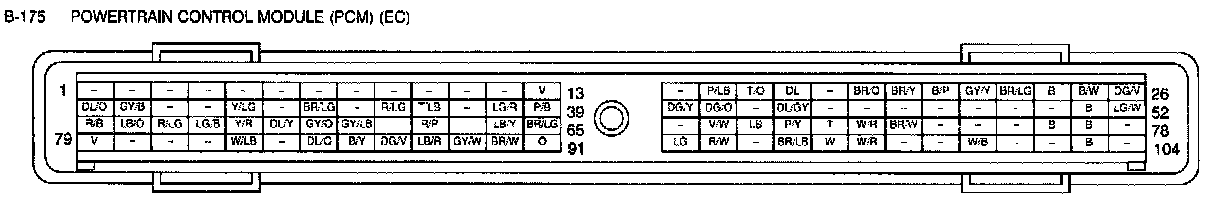

Engine Control Module

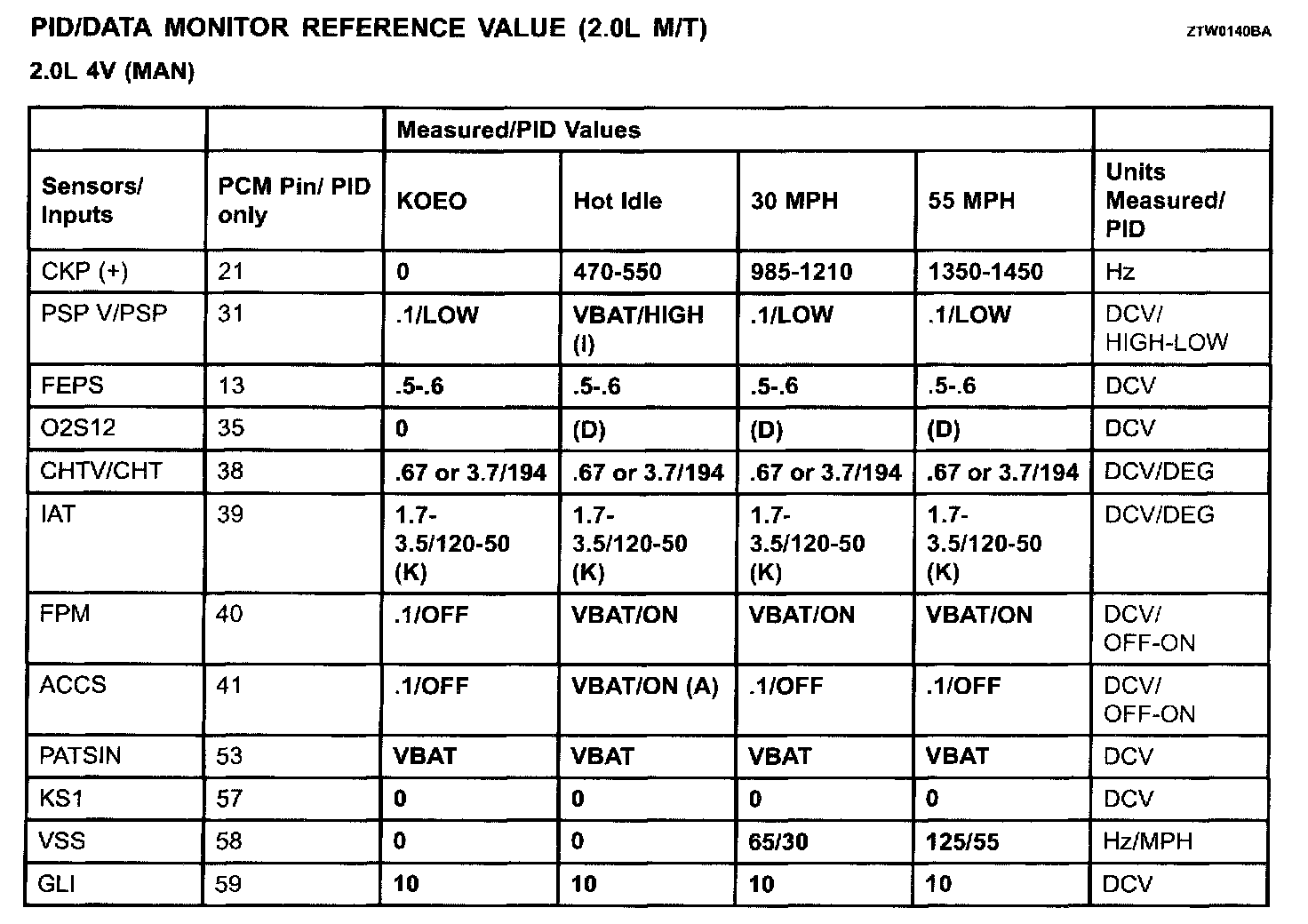

PID/Data Monitor Reference Value (2.0L M/T):






PID/Data Monitor Reference Value (2.0L M/T):

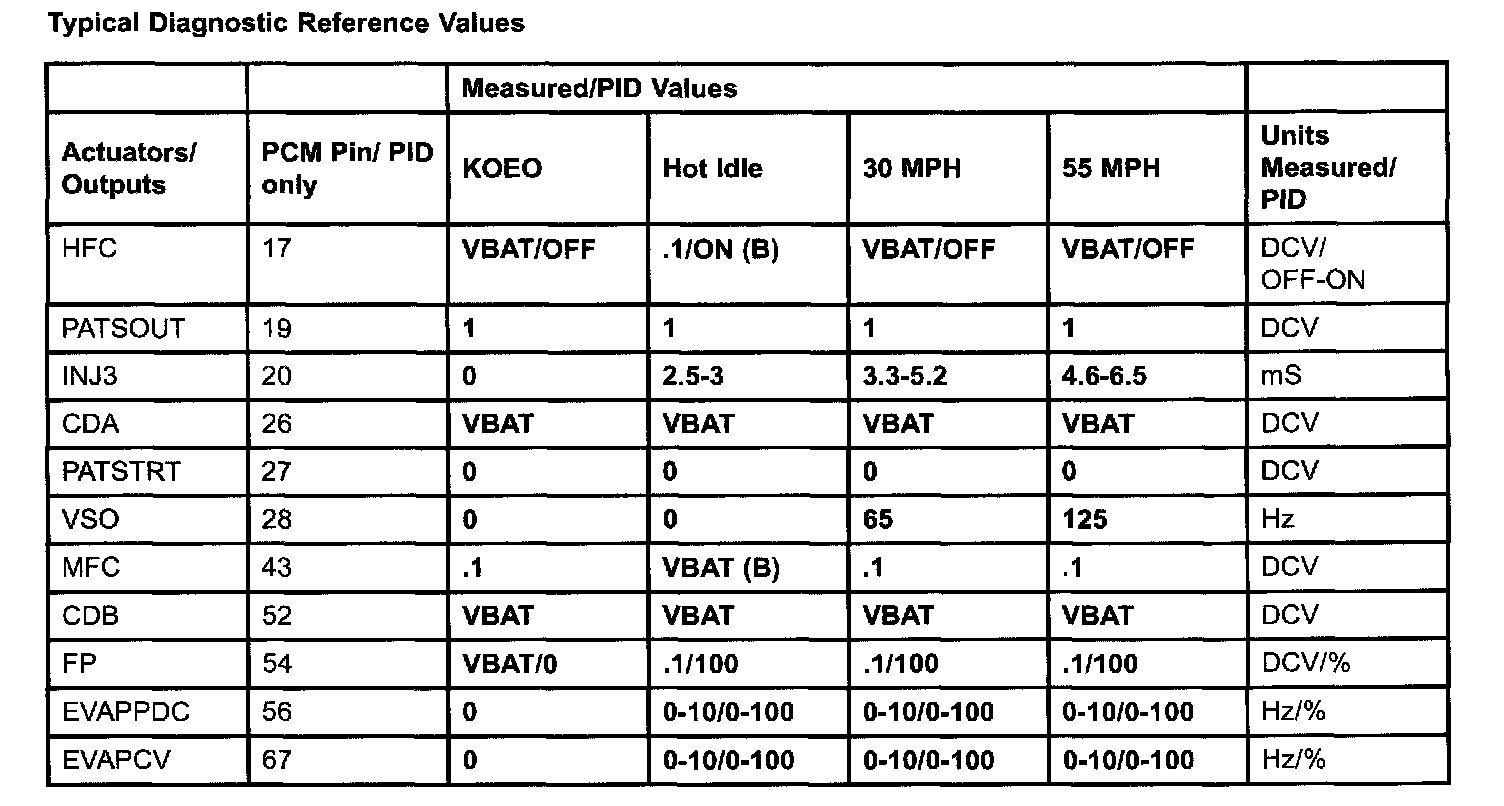

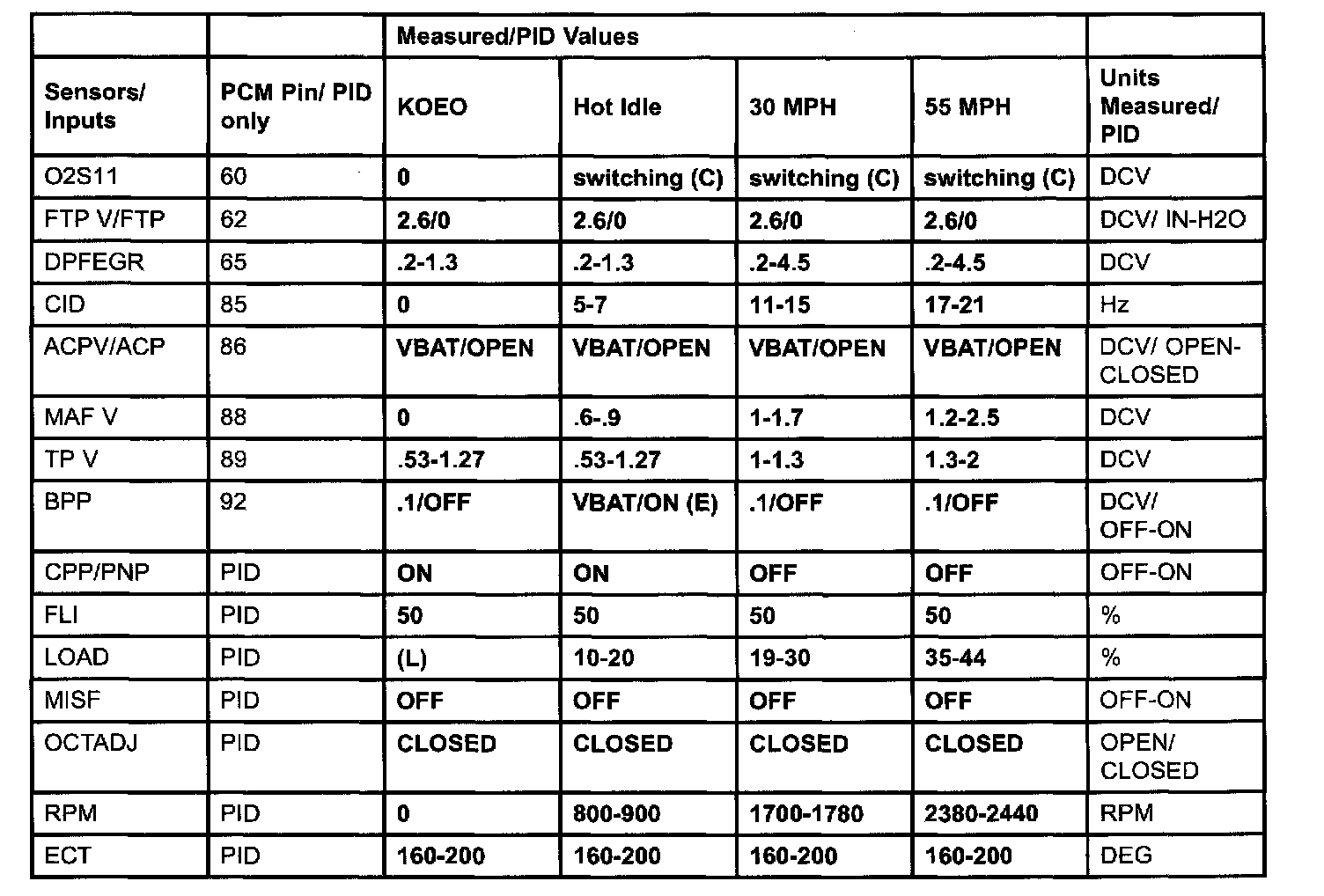

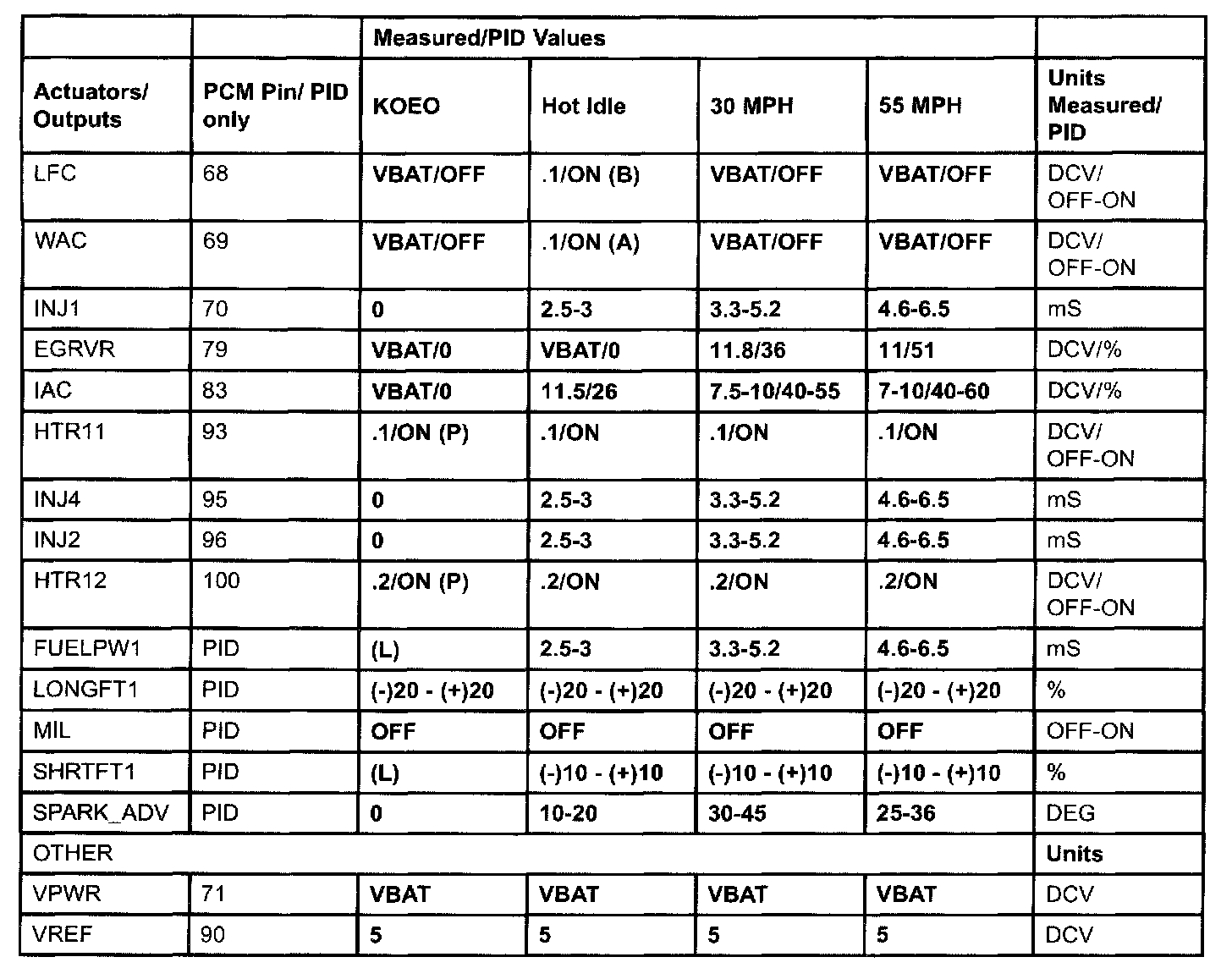

Typical Diagnostic Reference Values:






Typical Diagnostic Reference Values:

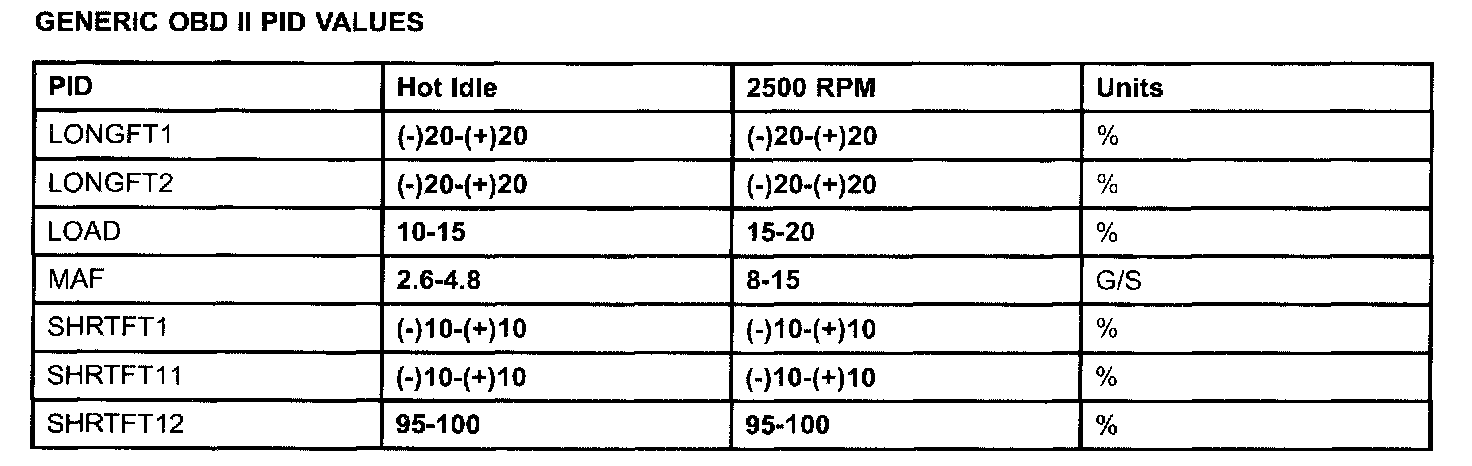

Generic OBD II PID Values:
