Oscilloscope Patterns and Waveforms

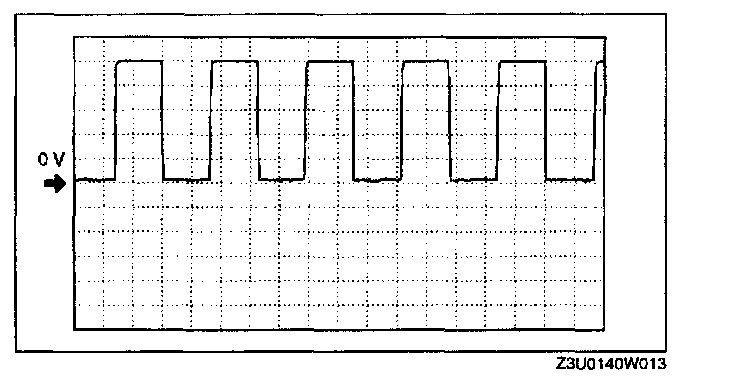

Vehicle speed signal
- PCM terminal: 58(+) - 103(-)
- Oscilloscope setting: 1 V/DIV(Y), 2.5 ms/DIV(X), DC range
- Vehicle condition: drive the vehicle with 32 km/h [20 mph]
