Vehicle Speed Sensor: Service and Repair

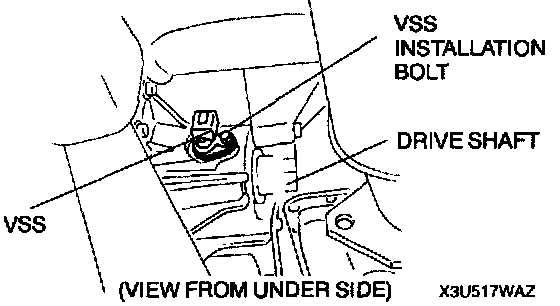

VEHICLE SPEEDOMETER SENSOR (VSS) REMOVAL/INSTALLATION [AT]
1. Disconnect the negative battery cable.
2. Disconnect the VSS connector.





3. Remove the VSS.
4. Apply ATF to a new O-ring and install it on a new VSS.
5. Install the VSS.
Tightening torque 7.9 - 10.7 Nm (80 - 110 kgf.cm, 69.5 - 95.4 inch lbs.)
6. Connect the VSS connector.
7. Connect the negative battery cable.
