Rear Wheel Alignment

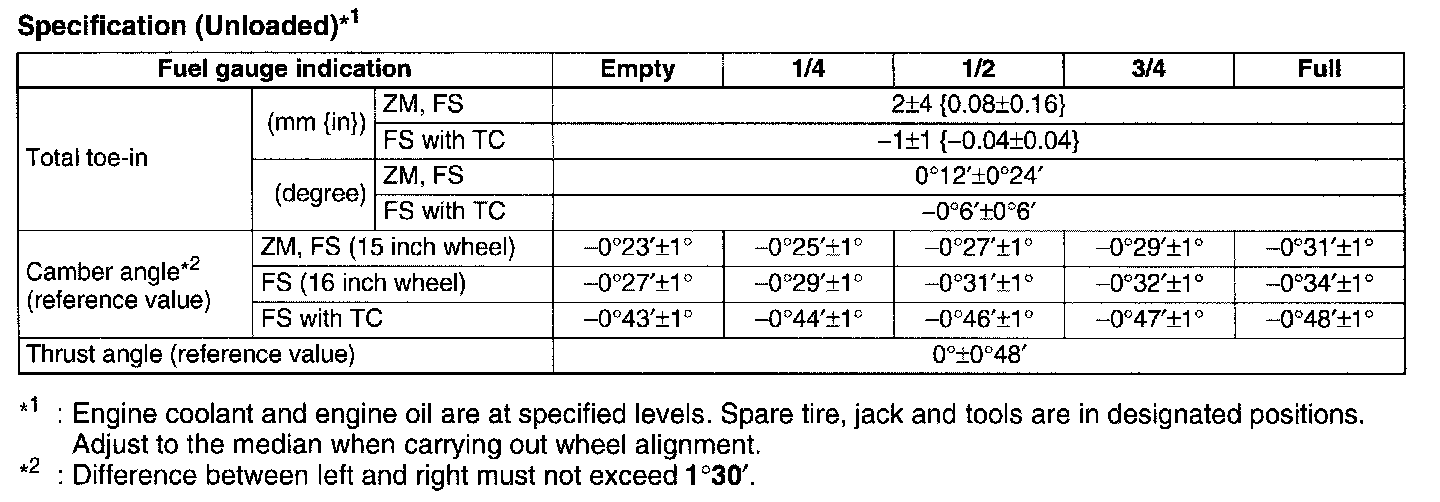

Total Toe-in Adjustment
1. Loosen the cam nut on the lateral link.

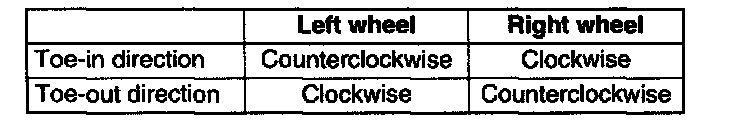

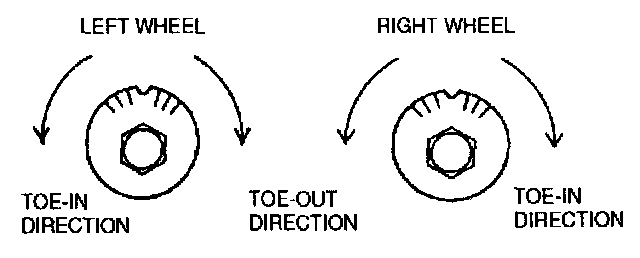

2. Turn the adjusting cam bolt as indicated to adjust the toe-in.

Note: Turning the adjusting cam bolt one complete turn changes the toe-in about 3.0 mm (0.12 inch) (0°18').

3. Tighten the cam nut.
Tightening torque 50 - 69 Nm (5.1 - 7.1 kgf.m, 37 - 50 ft. lbs.)
