Hatch Back

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

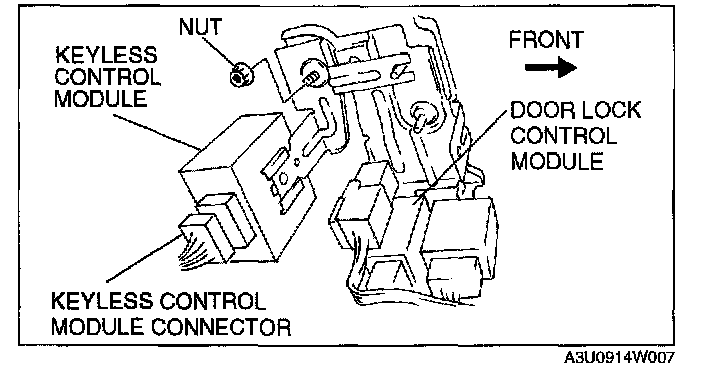

2. Disconnect the keyless control module connector. (Under driver's side dash)
3. Remove the bolt to remove the keyless control module and the bracket as a module.

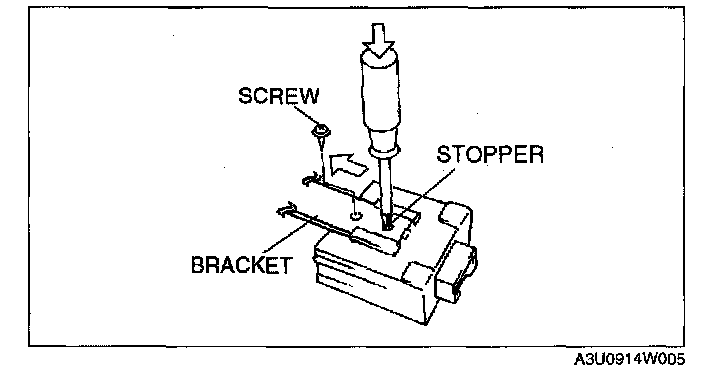

4. Remove the screw.
5. Push the stopper using a small driver, and remove the bracket.
6. Install in the reverse order of removal.
