Home >> Mazda >> 2003 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

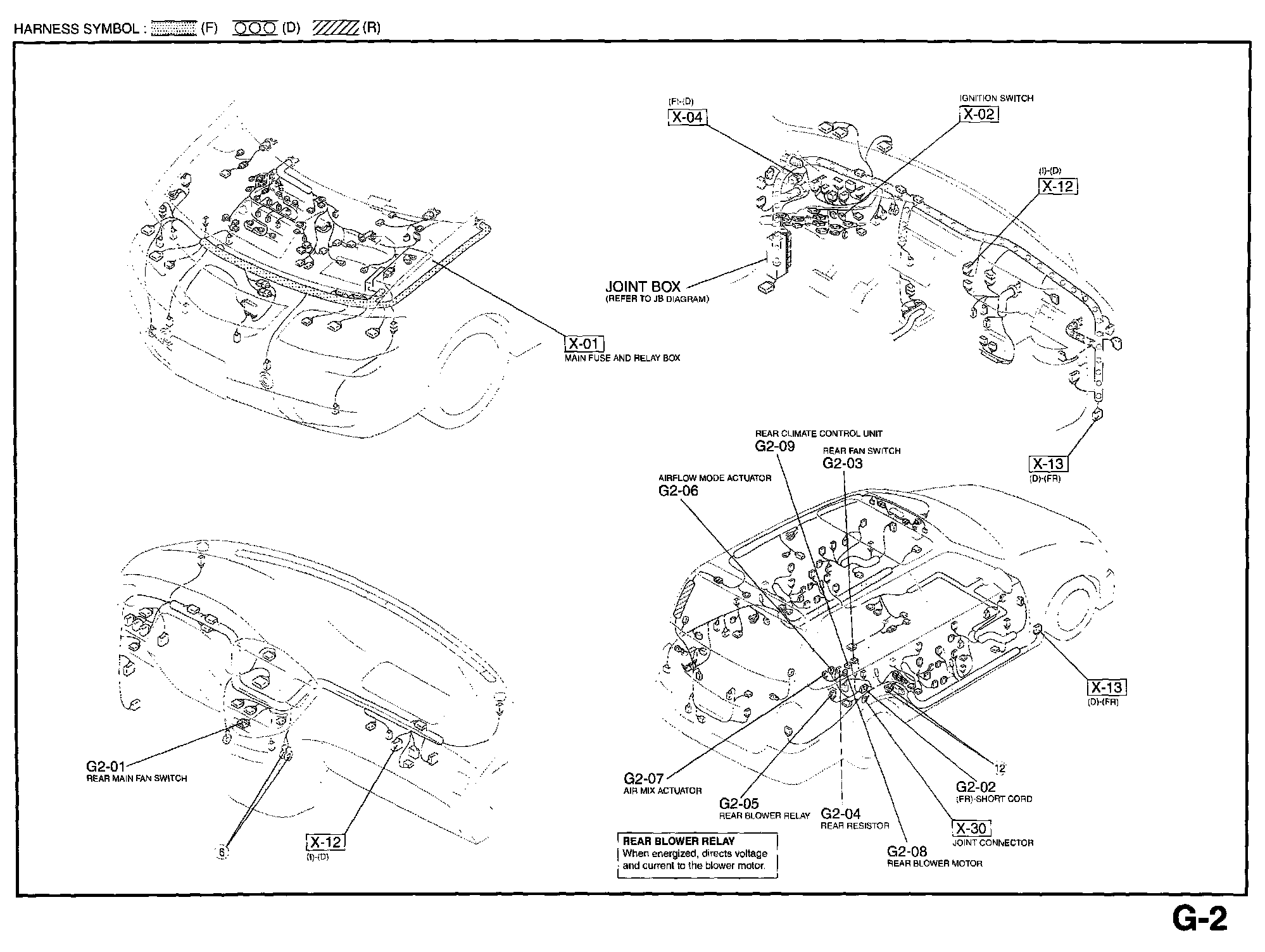

Routing View G-2:
