lemon-mirror
:
Home
>>
Mazda
>>
2003
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Control Module
>>
Locations
Power Door Lock Control Module: Locations

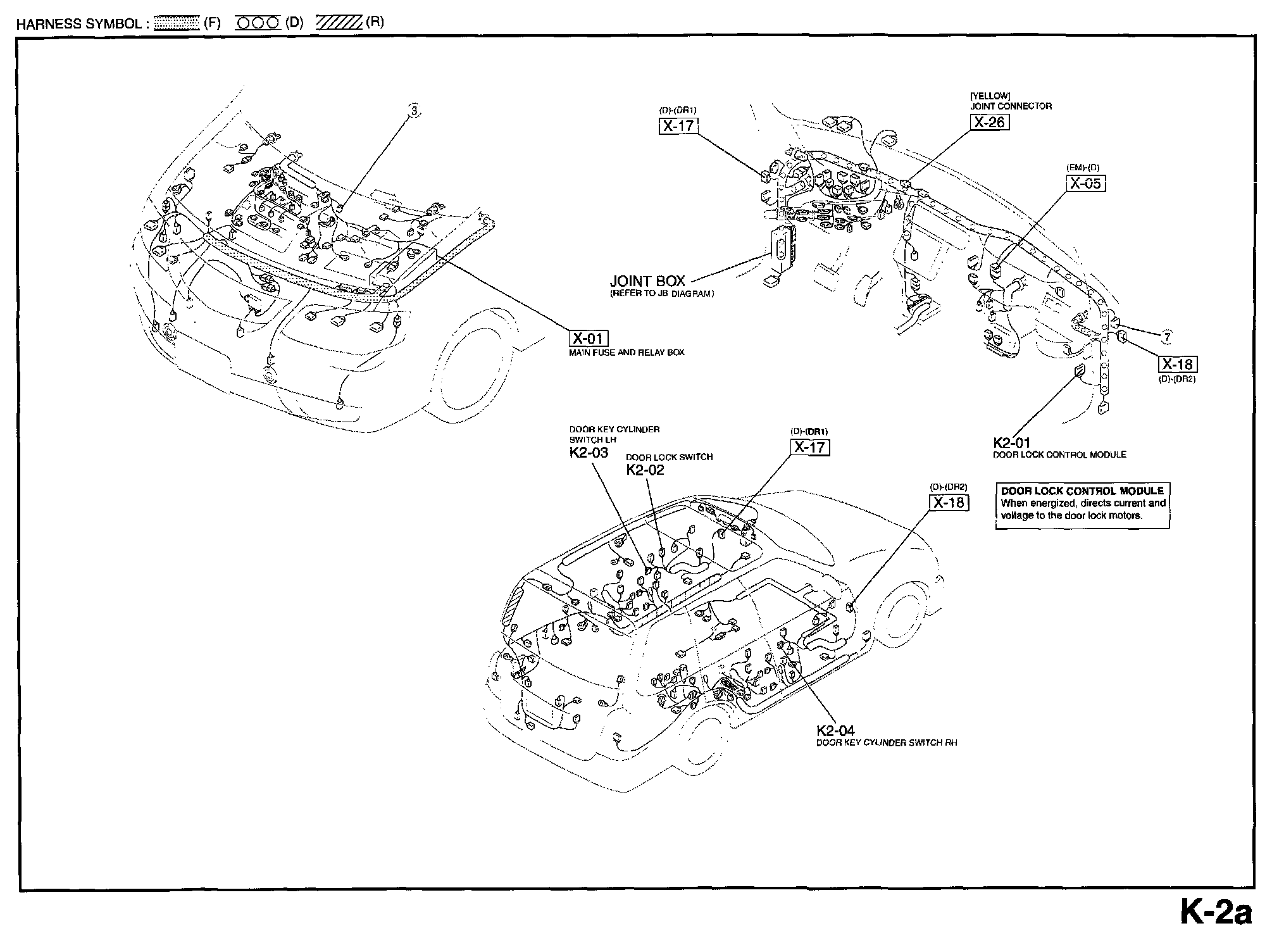

Routing View K-2a:
