Timing Cover

TIMING COVER

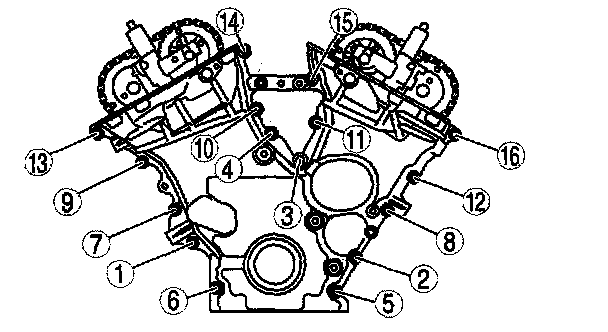

Install the engine front cover bolts in the order as shown.
Torque: 20-30 Nm (15-22 ft lb)
