Home >> Mazda >> 2003 >> 6 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Flow of Diagnosis >> Flowchart

Flowchart

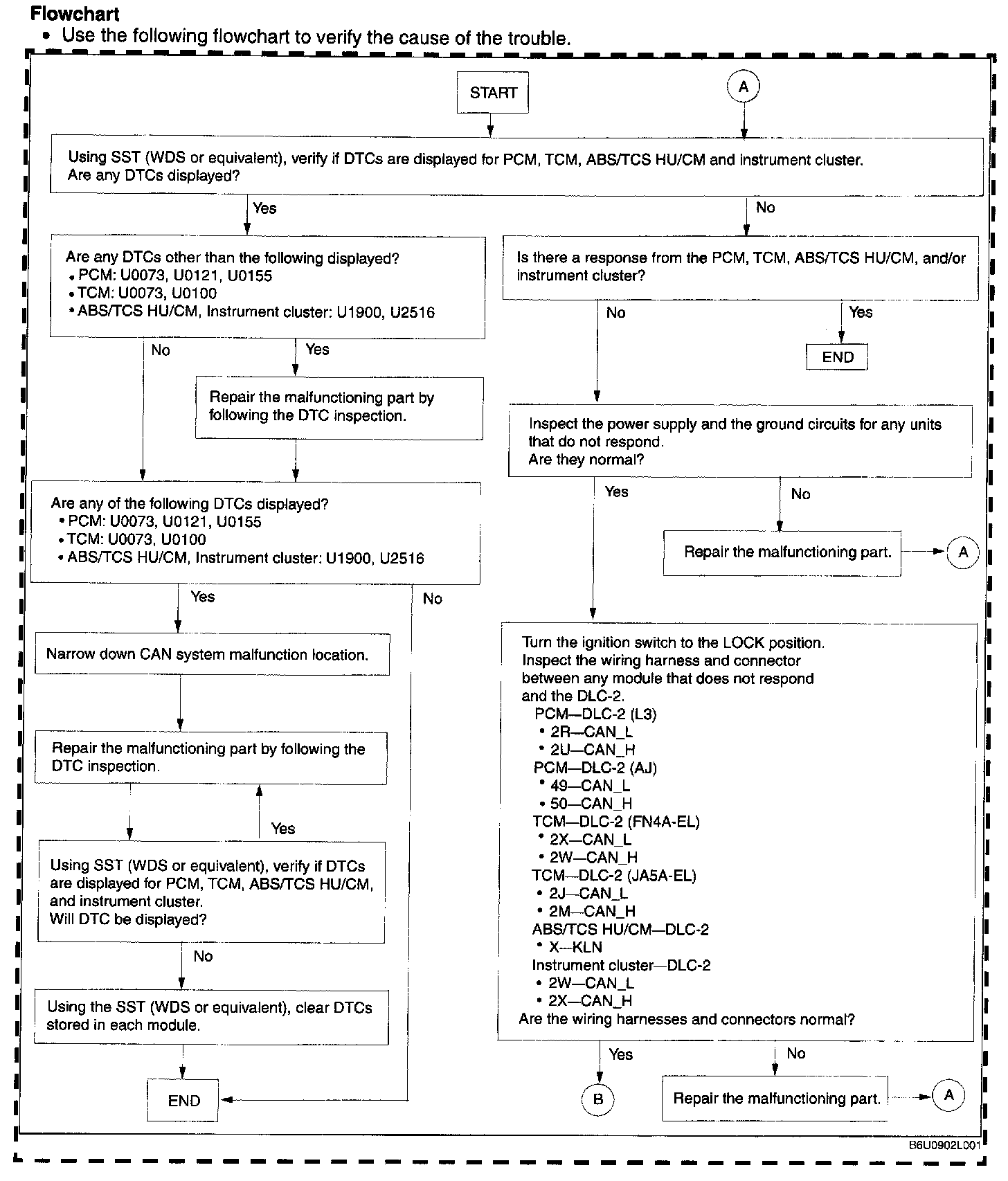

Flow Chart Part 1:

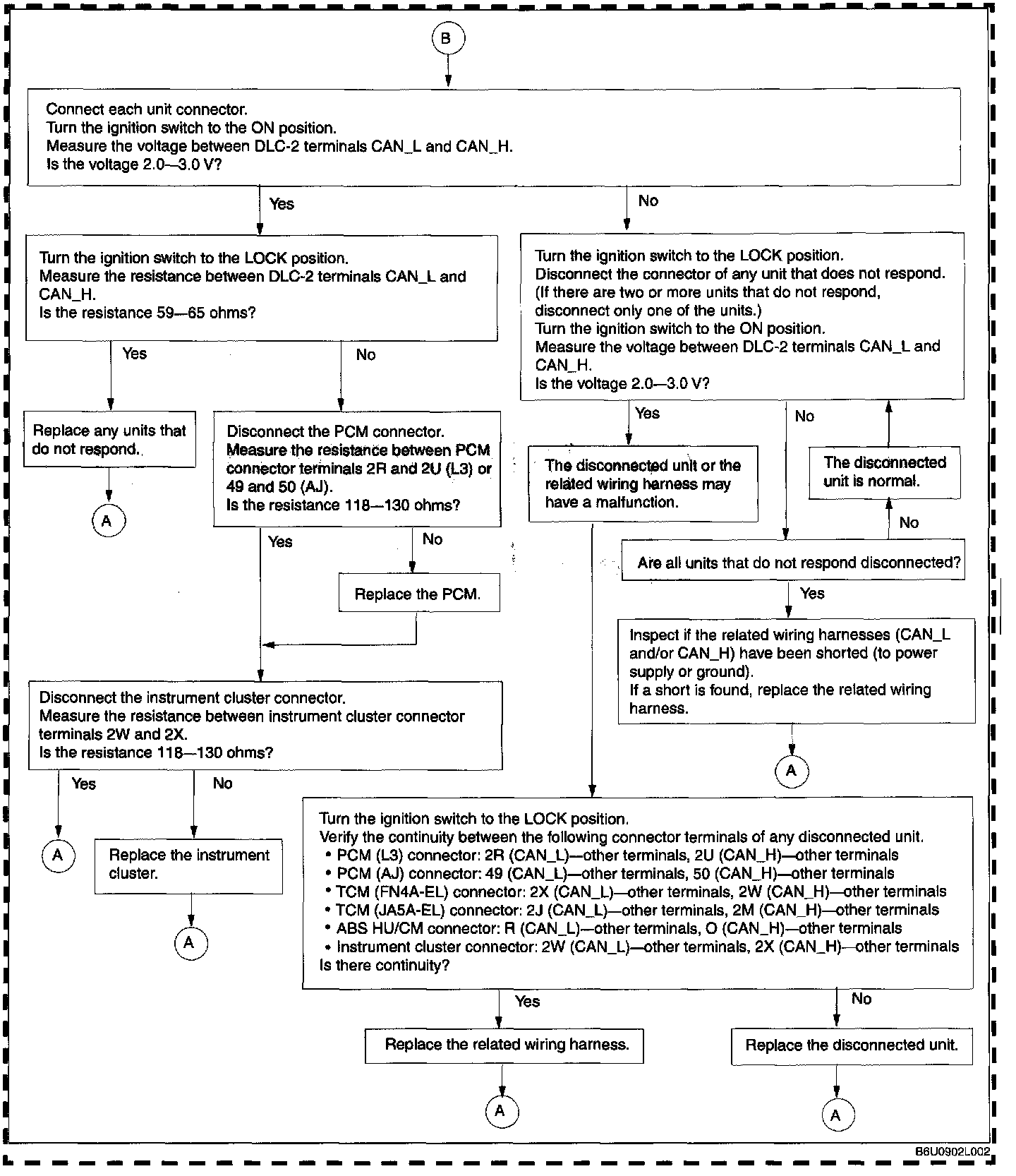

Flow Chart Part 2:
