System Specifications

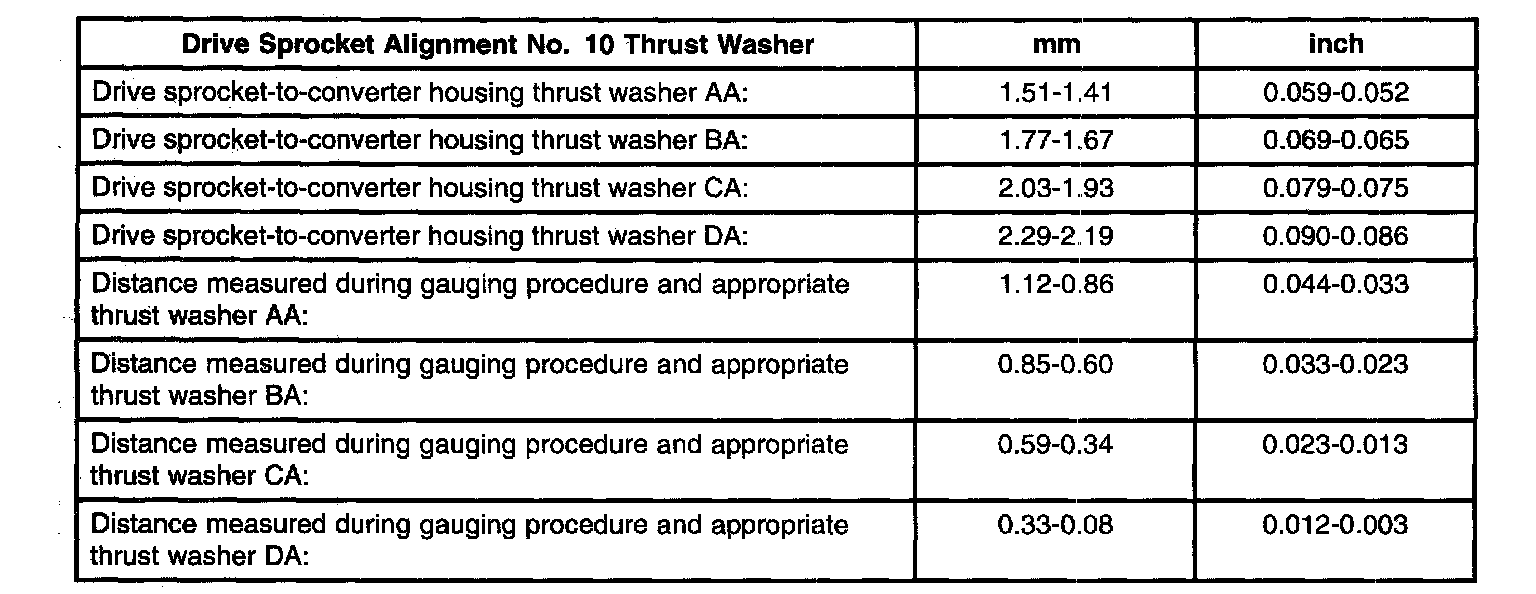

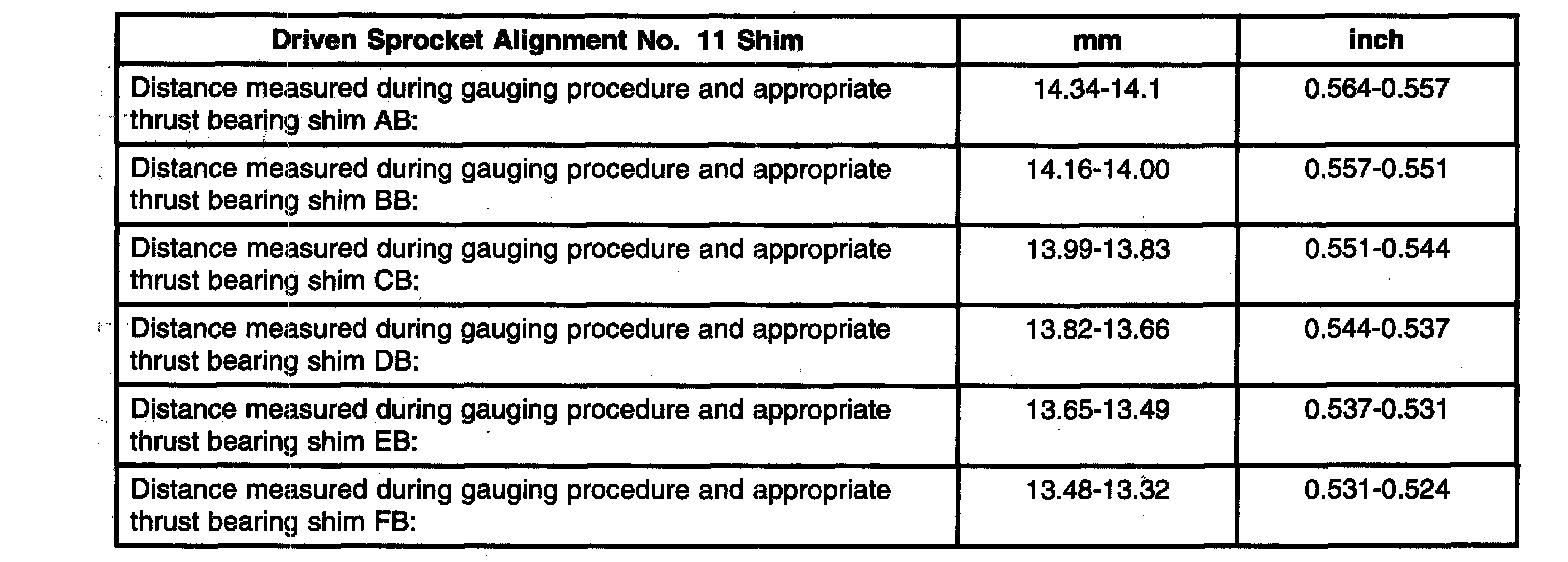

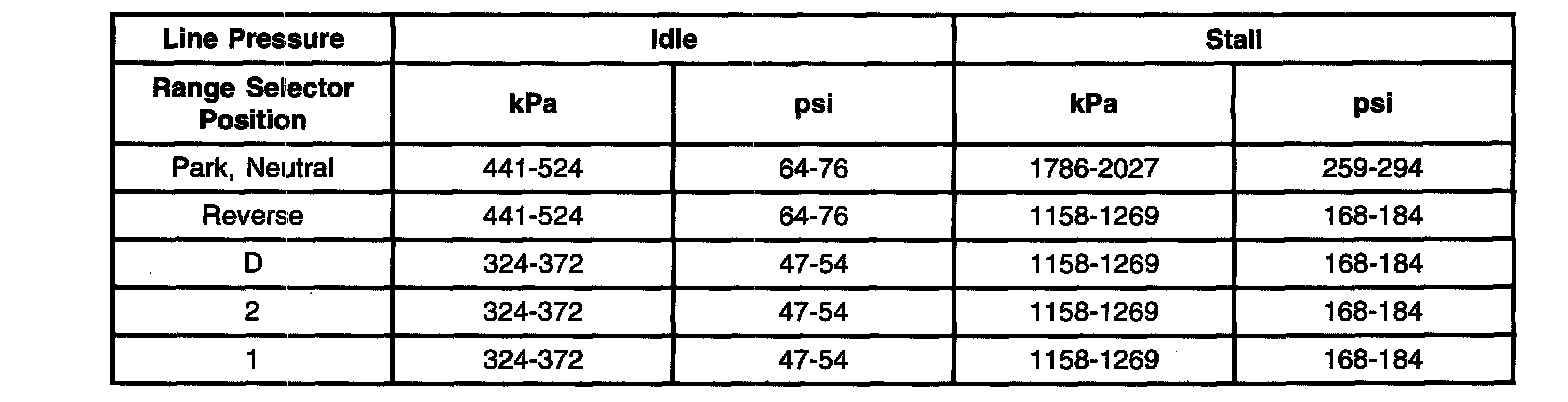

Reference: Pressure Chart No.401

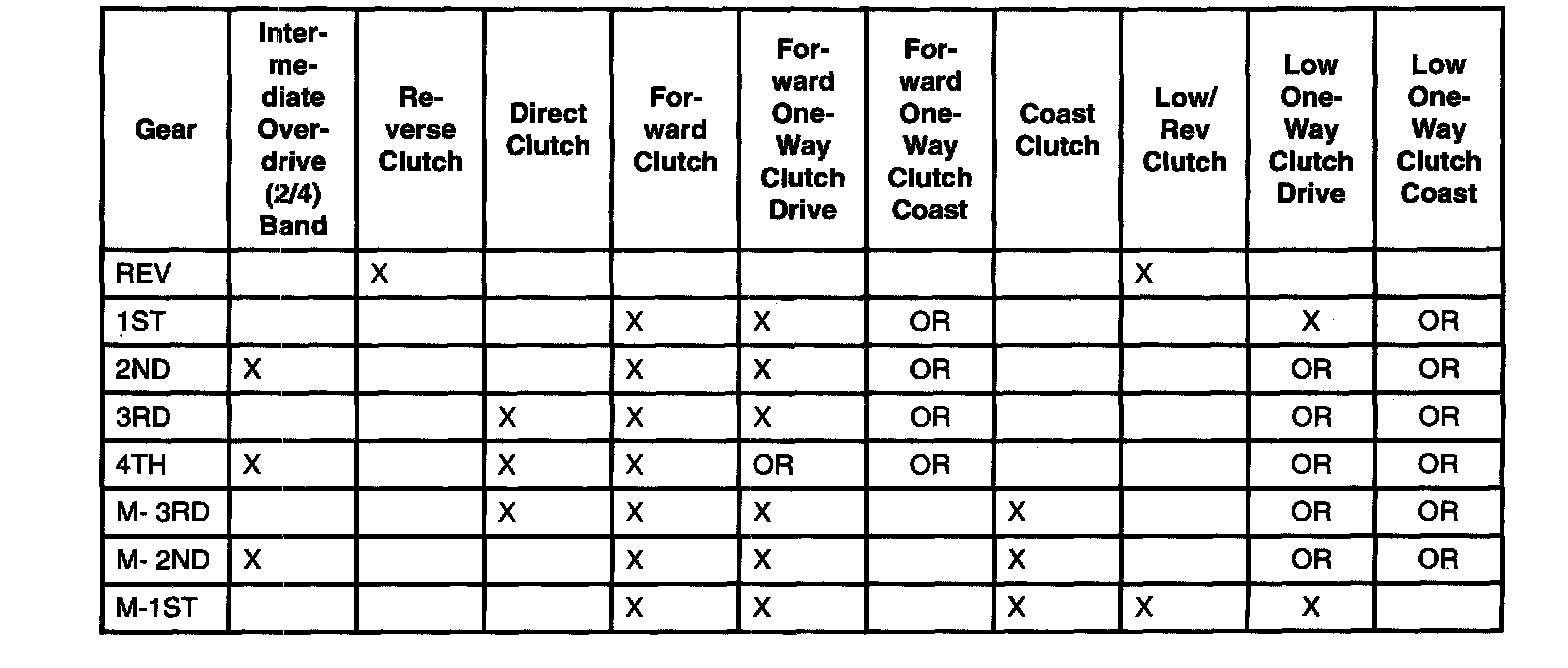

Reference: Clutch/Band Application Chart No. 601

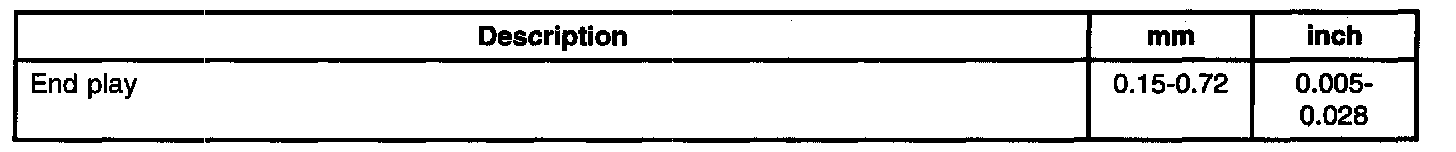

Low/Intermediate Carrier Assembly Pinion Gear

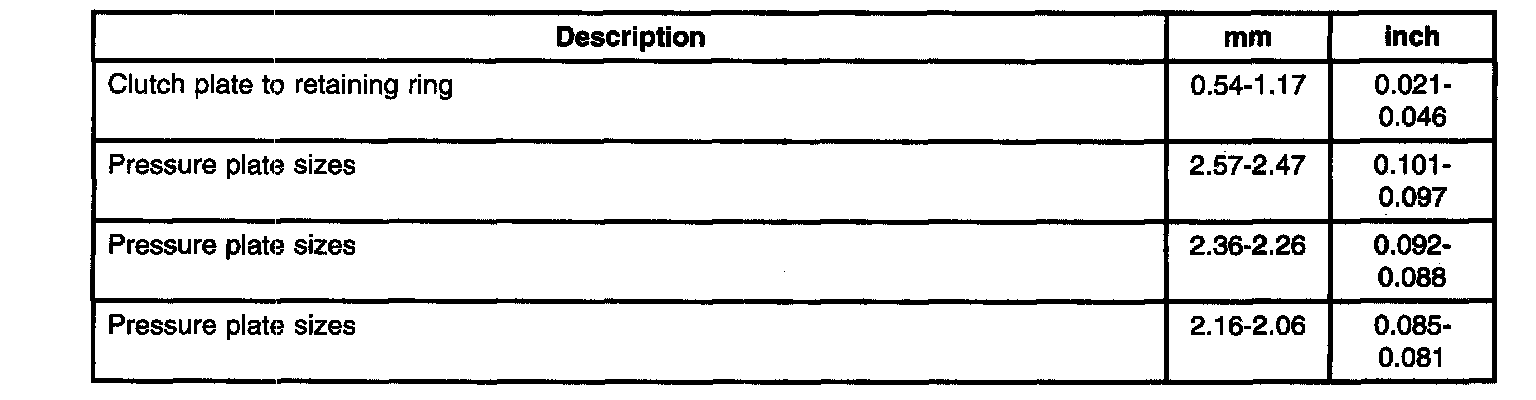

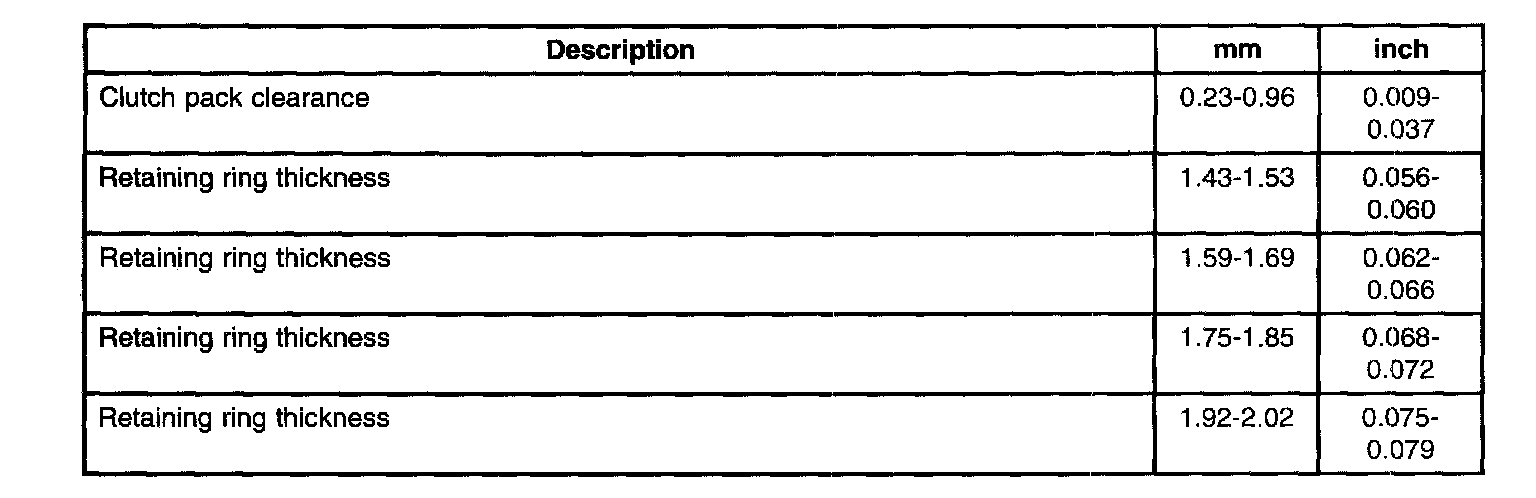

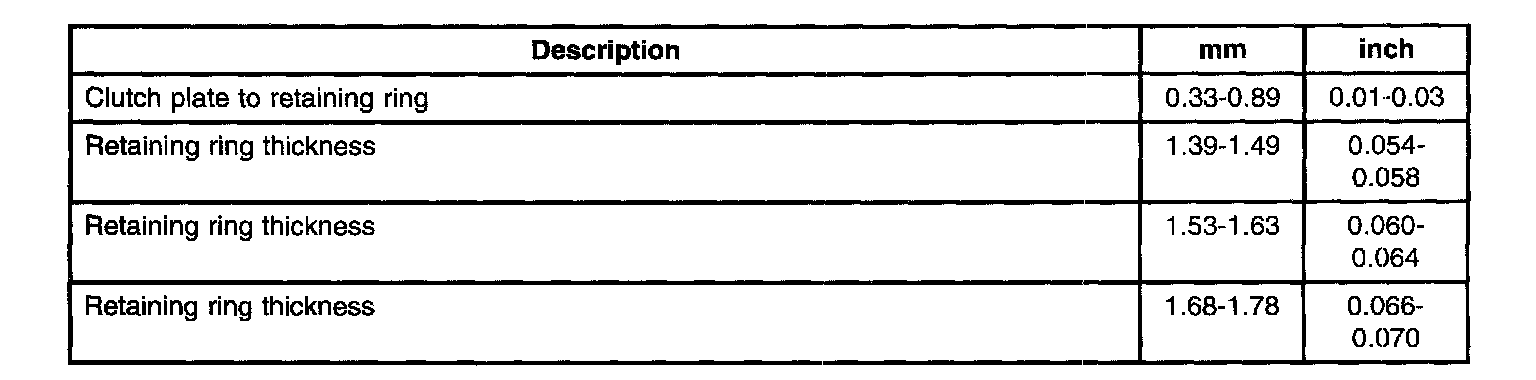

Reverse Clutch Pack Clearance

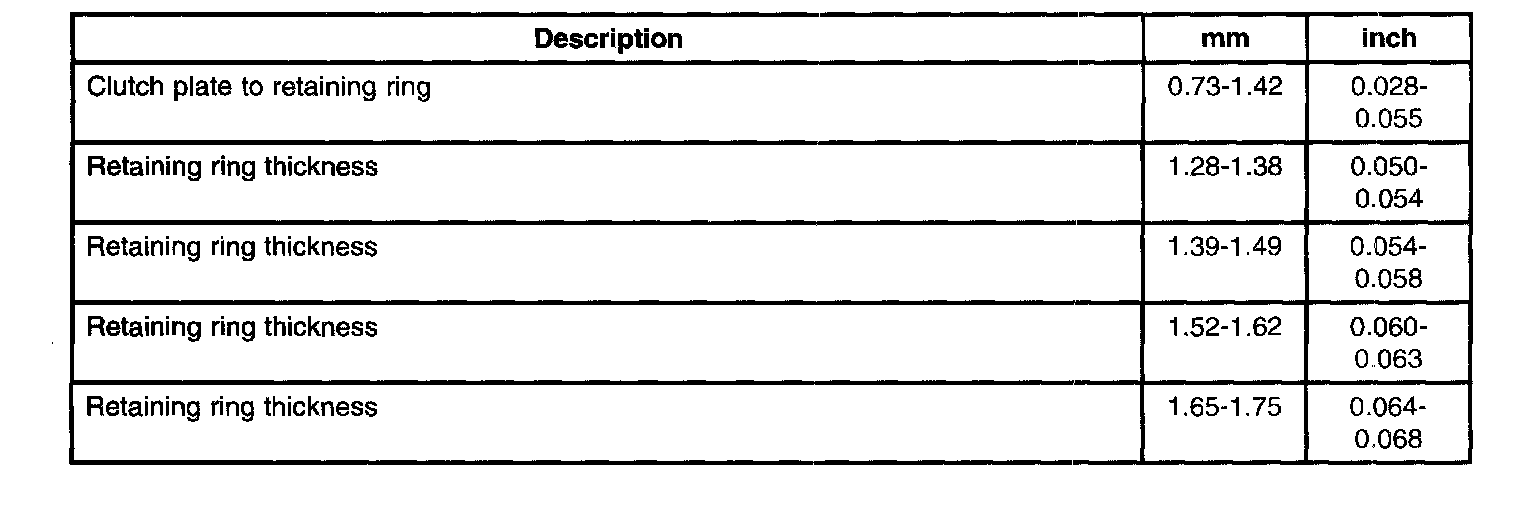

Forward/Coast Clutch Pack Clearance
Direct Clutch Pack Clearance (4 Friction Plates)

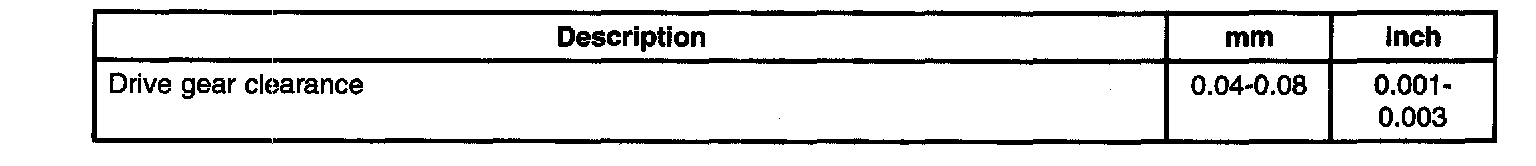

Pump Gear End Clearance

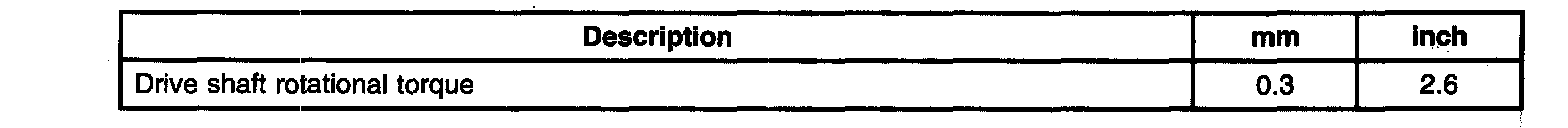

Pump Assembly Rotating Torque
Low/Reverse Clutch Pack Clearance

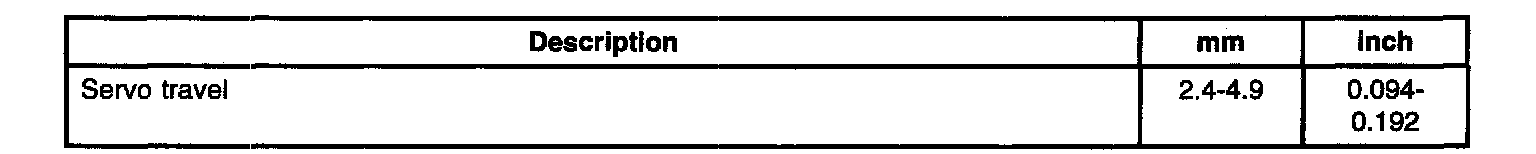

Intermediate and Overdrive Servo

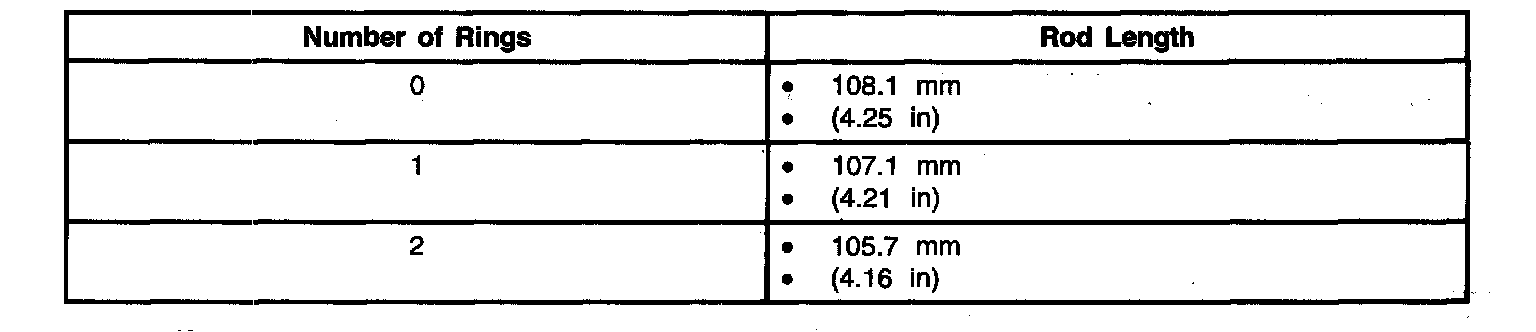

Intermediate/Overdrive Servo Apply Rod

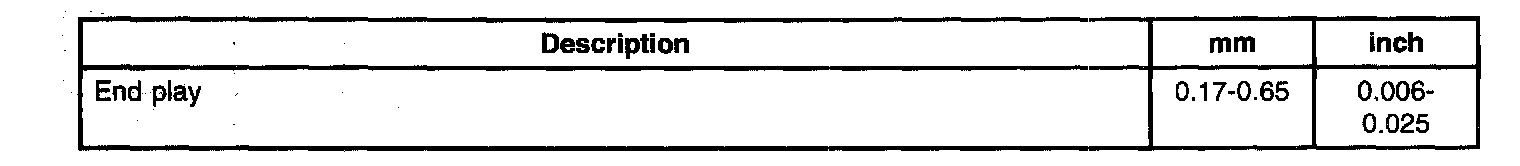

Reverse/Overdrive Carrier Assembly Pinion Gear End Play

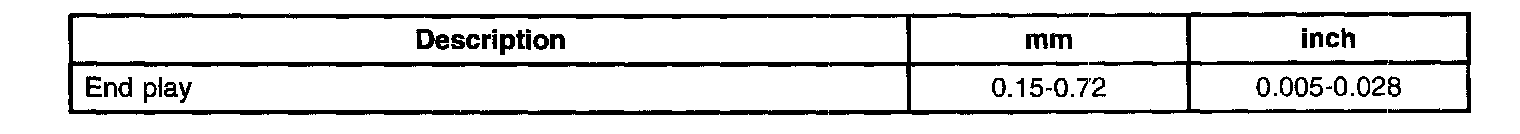

Low/Intermediate Carrier Assembly Pinion Gear End Play

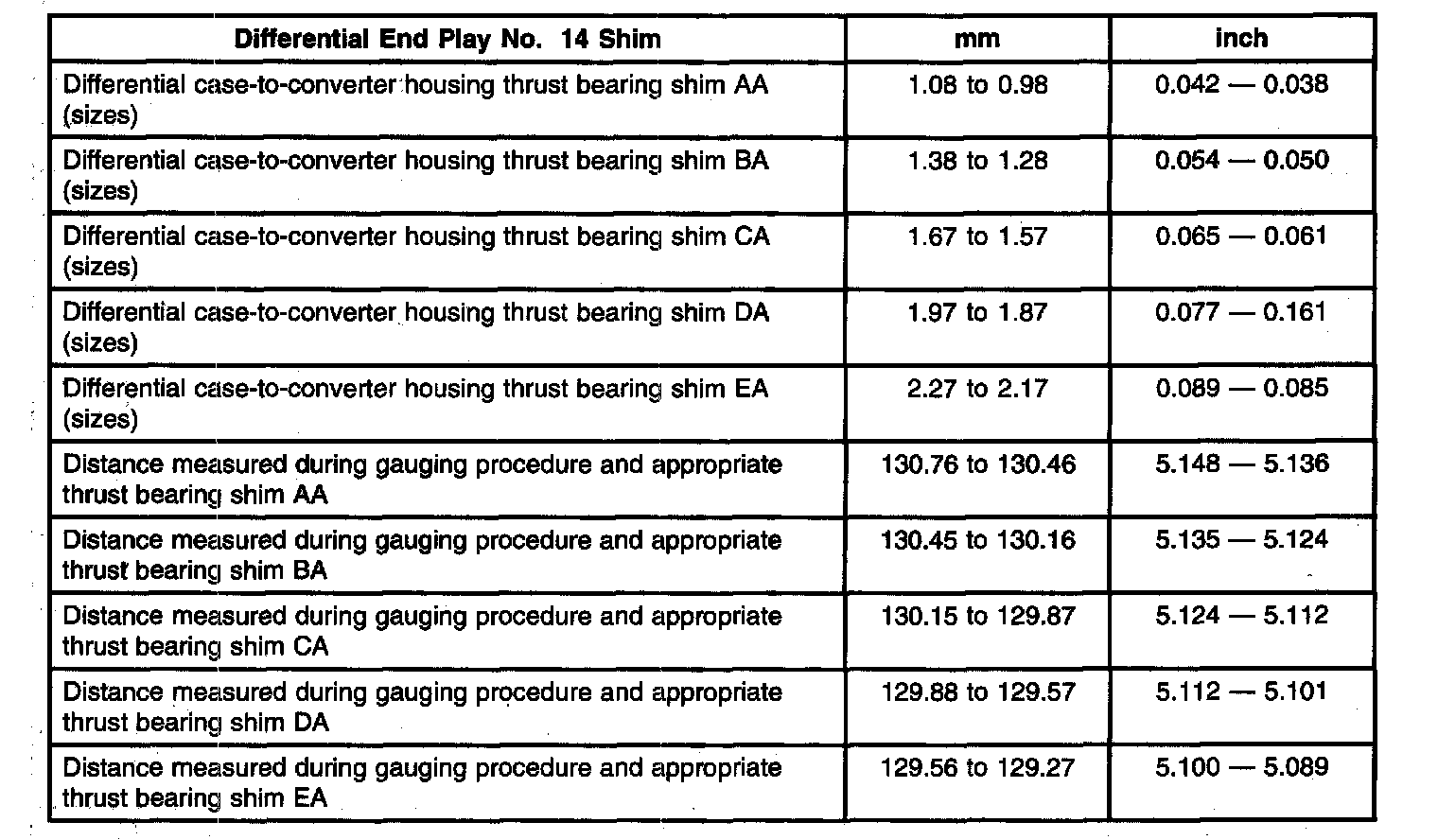

Final Drive Carrier Assembly Pinion Gear End Play

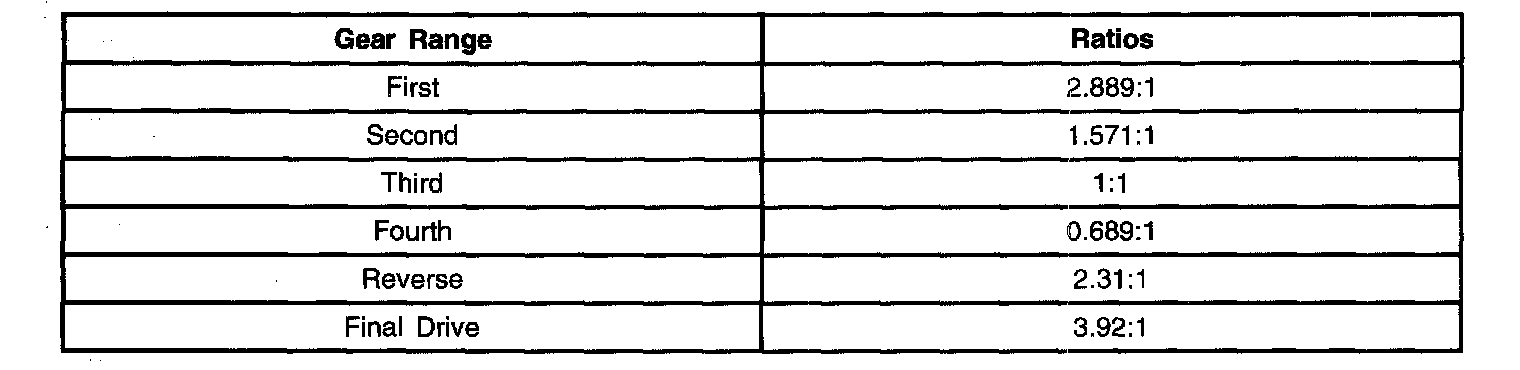

Gear Ratios

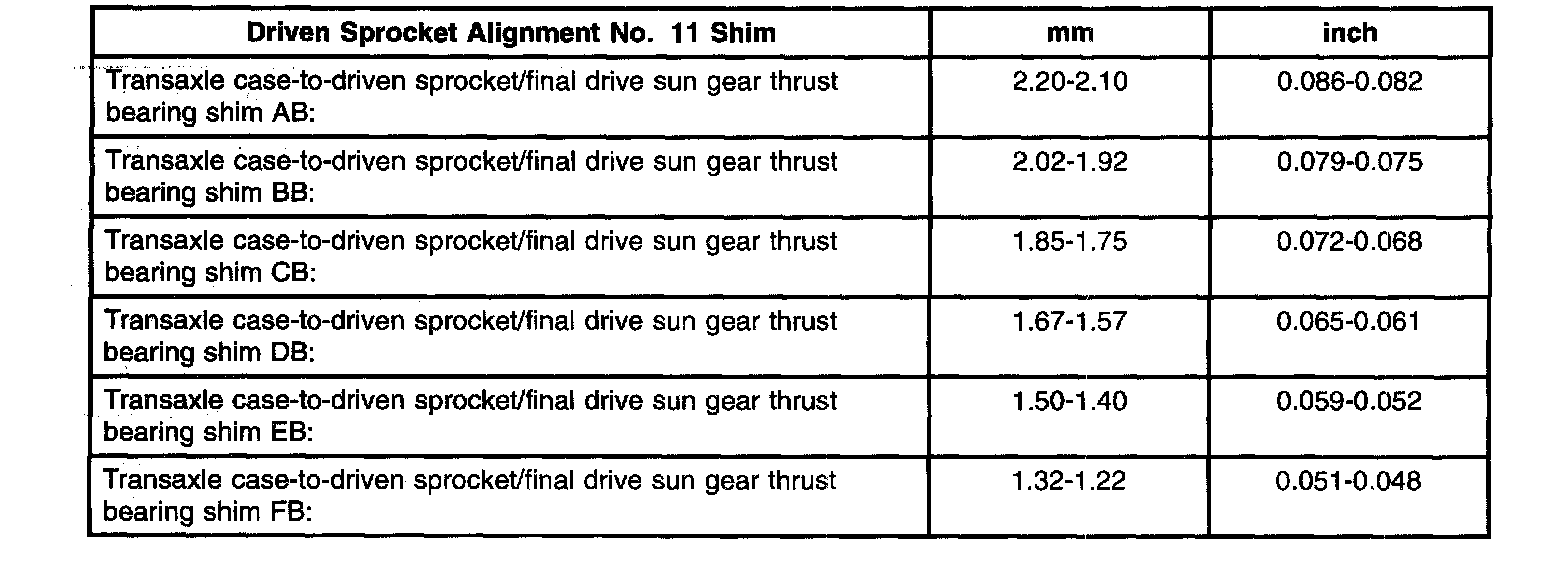

General Specifications
