Crankshaft Position Sensor: Service and Repair

Removal and Installation

1. Remove the exhaust manifold.

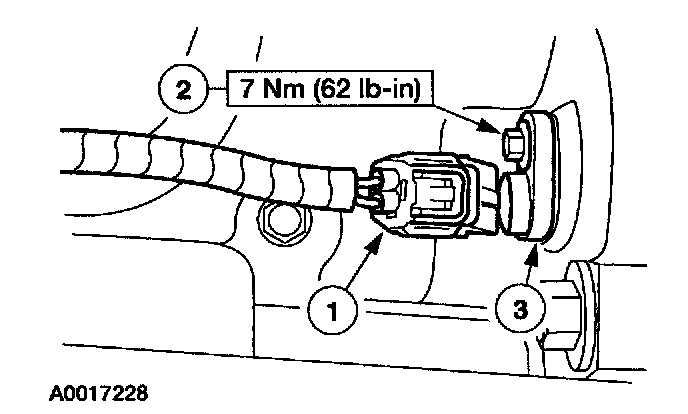

2. Remove the crankshaft position (CKP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.
3. Remove the sensor.

3. To install, reverse the removal procedure.
