Automatic Transmission/Transaxle

DISASSEMBLED VIEWS

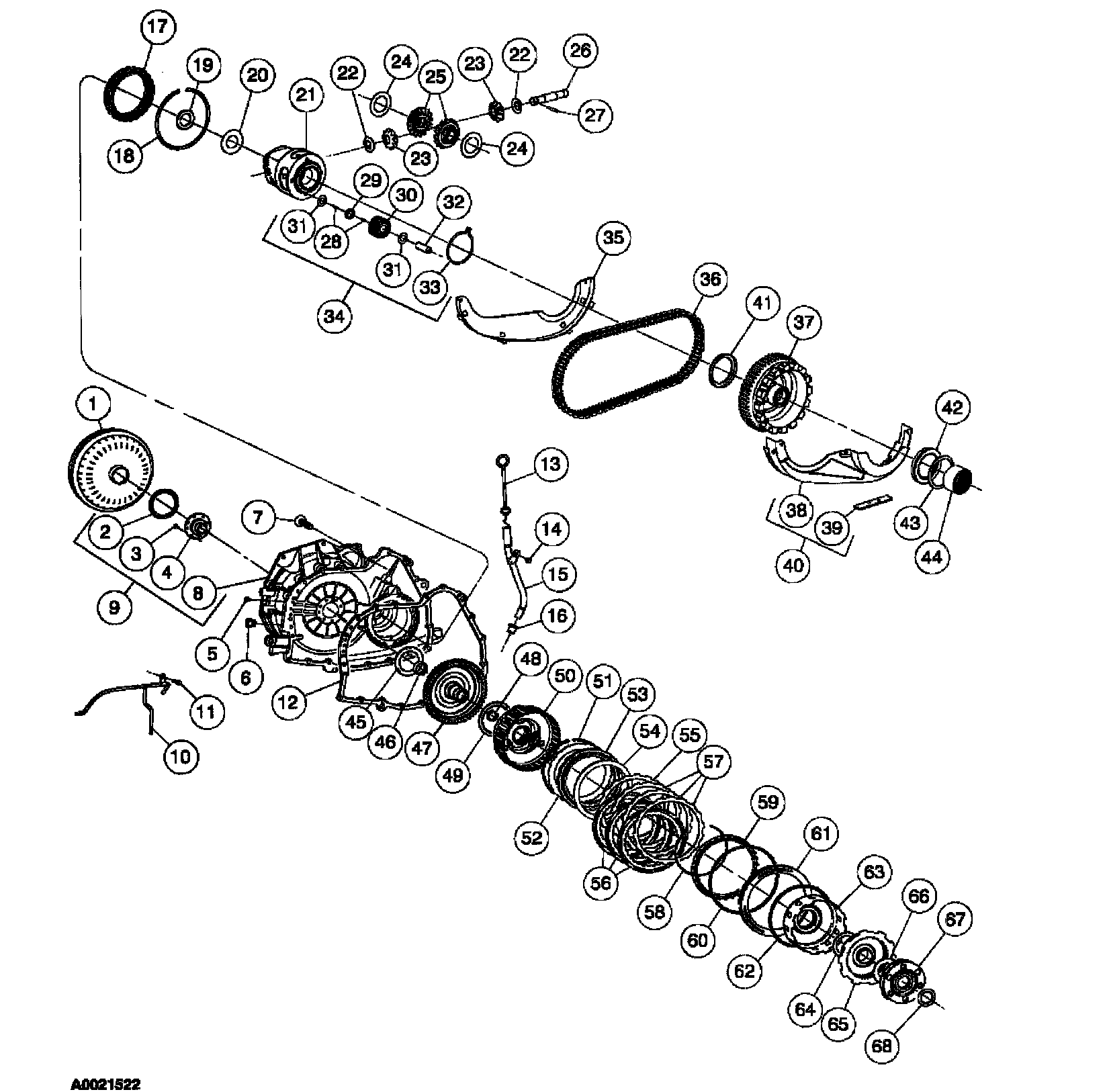

1 of 7

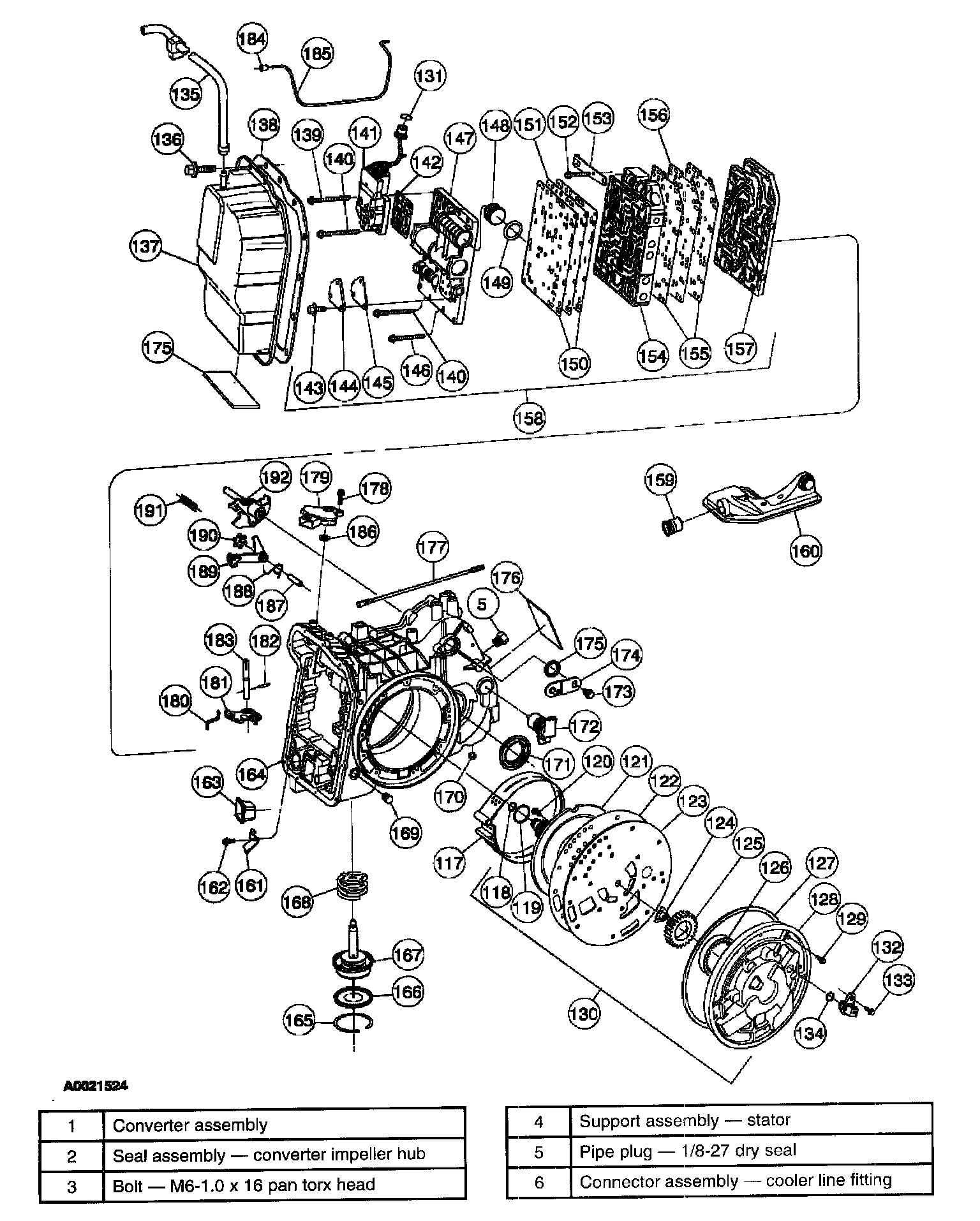

2 of 7

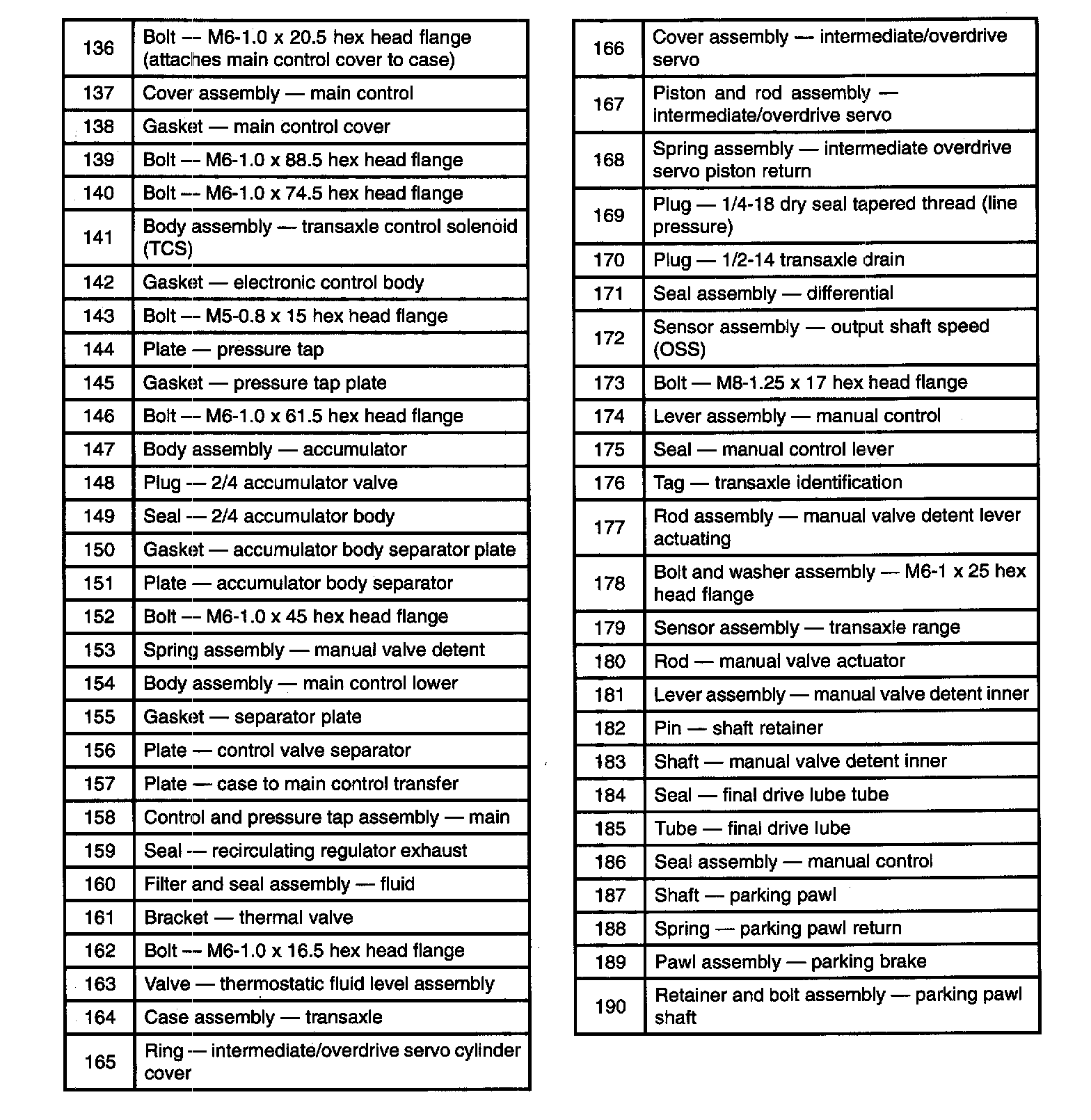

3 of 7

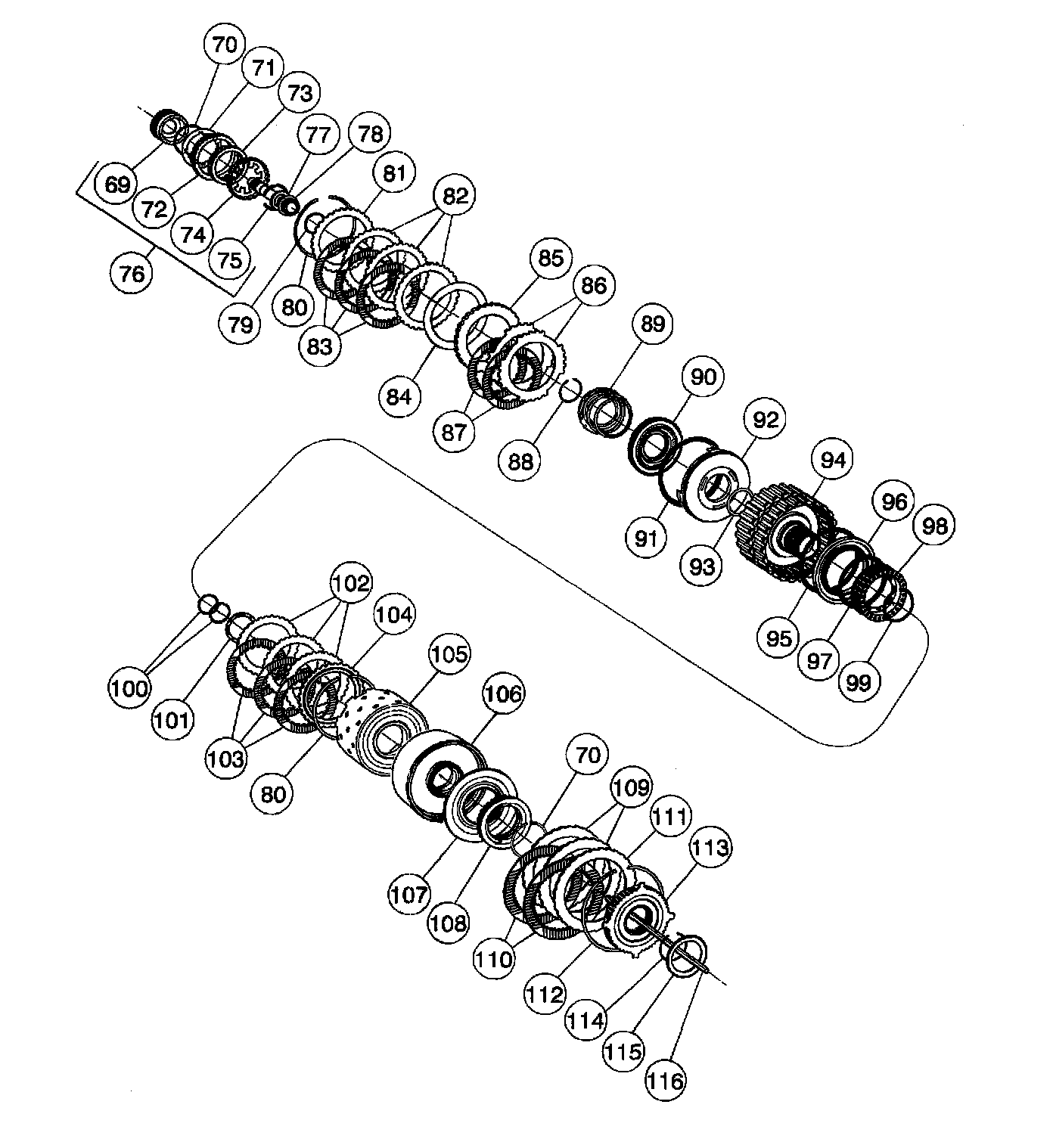

4 of 7

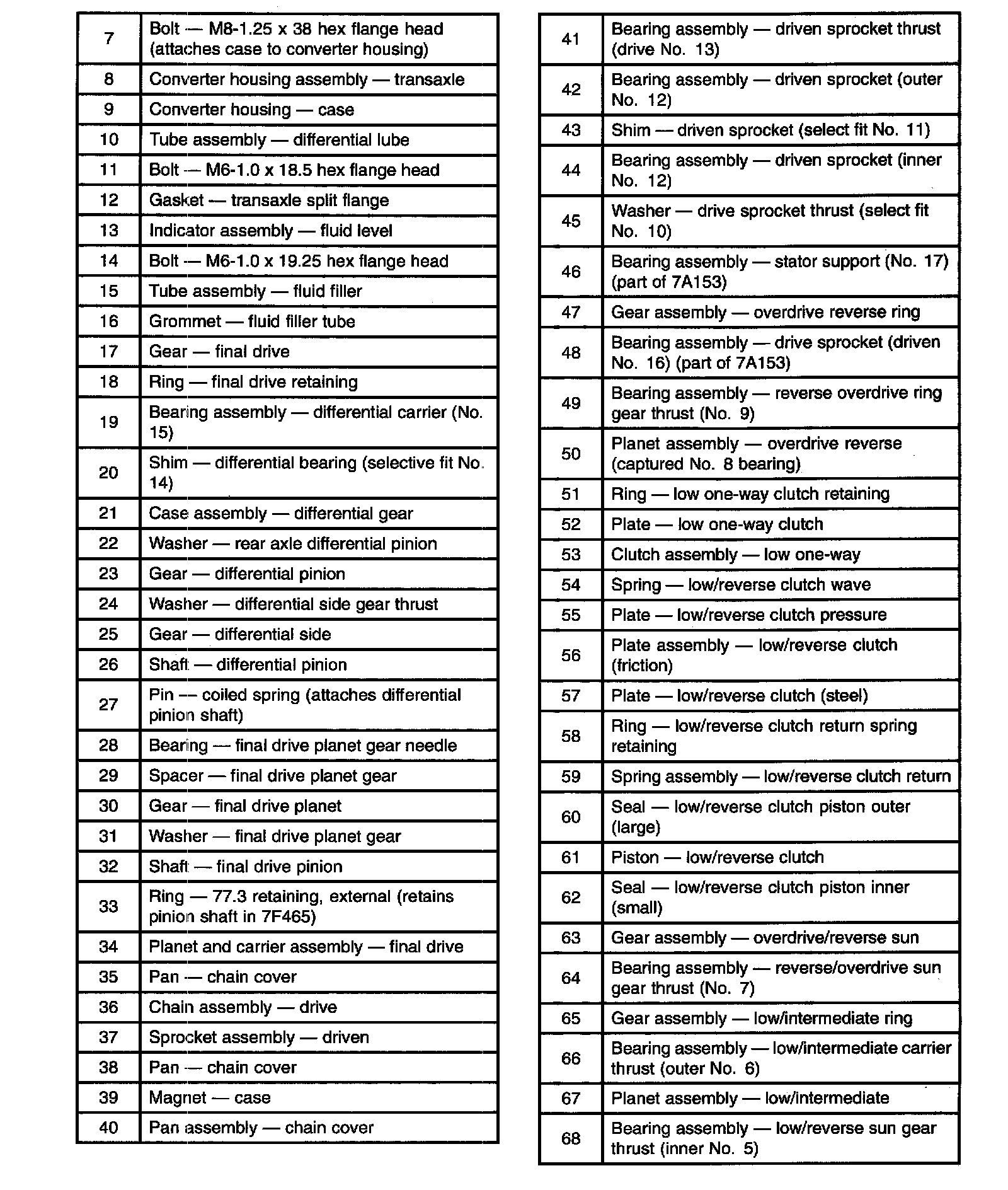

5 of 7

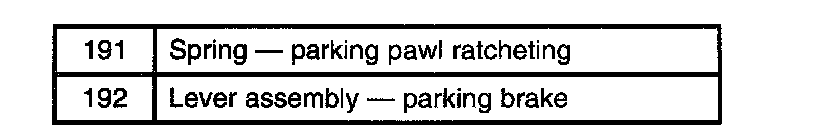

6 of 7

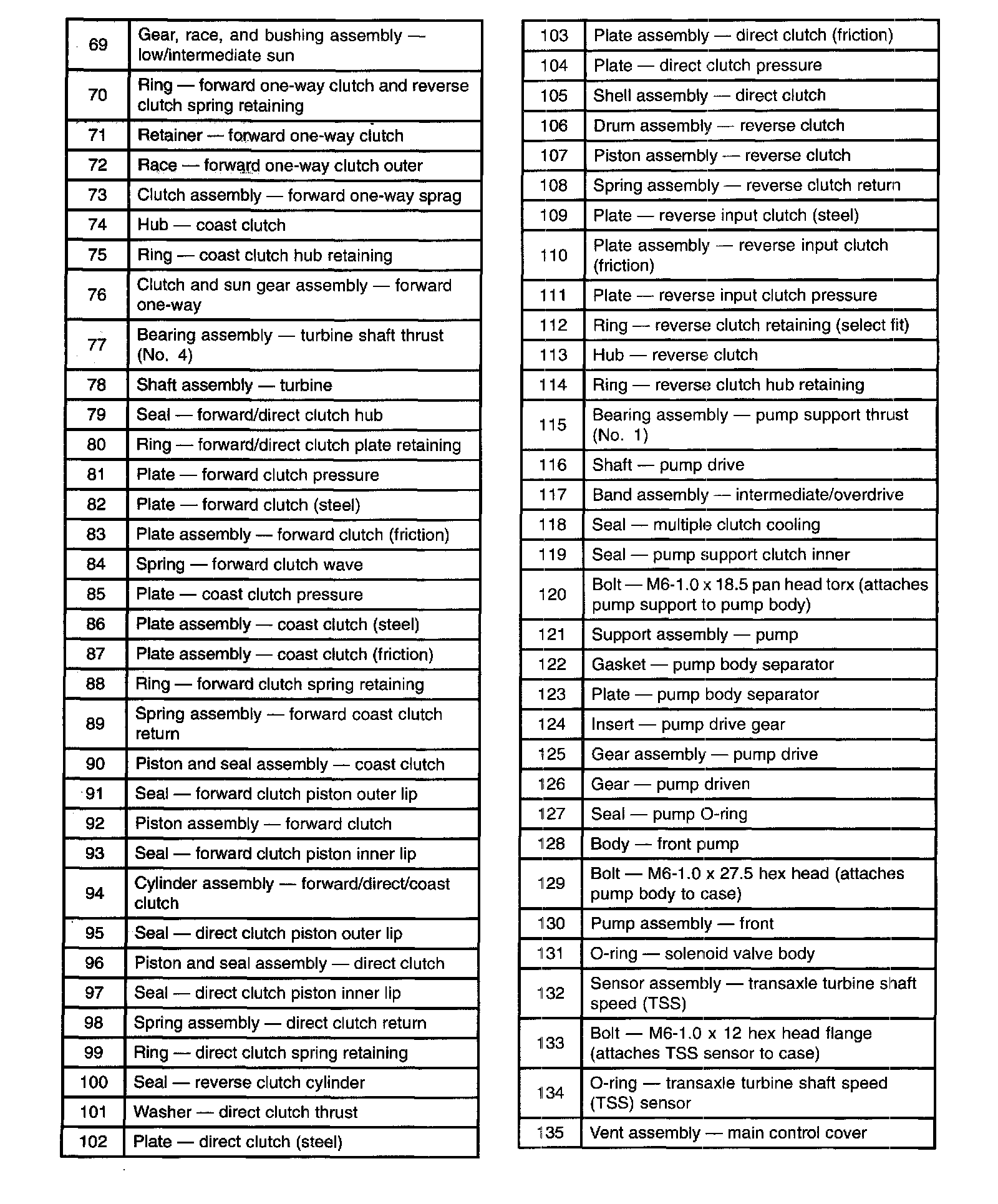

7 of 7
