Control Module: Service and Repair

TCM REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the floor mat of passenger seat.

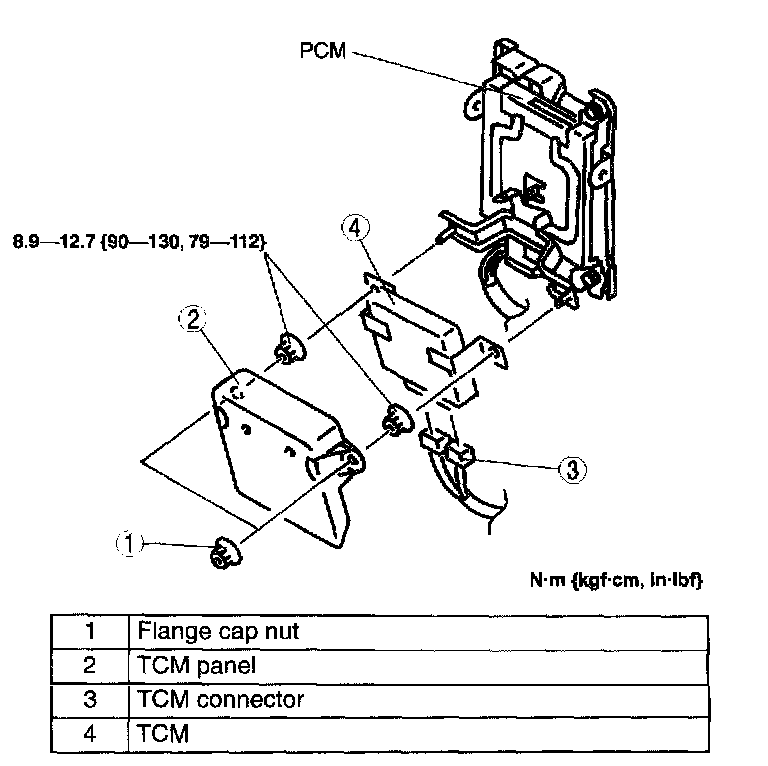

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Install the floor mat of passenger seat.
6. Connect the negative battery cable.
