Engine Mechanical System Components

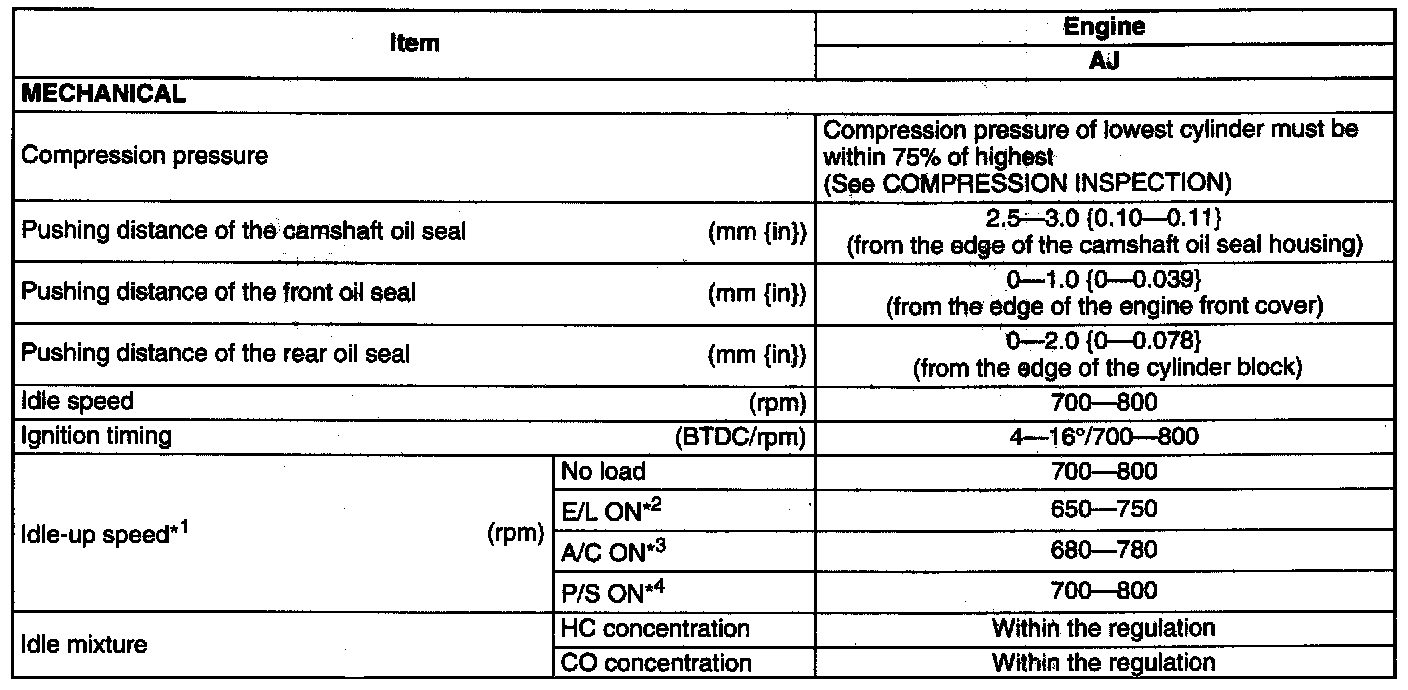

Mechanical:

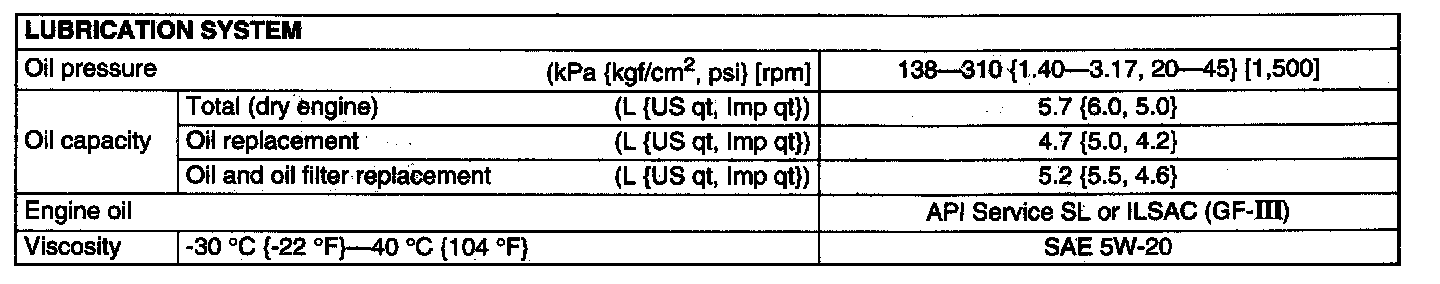

Lubrication System:

*1: Excludes temporary idle speed drop just after the loads (E/L, A/C, P/S) are turned on.
*2: Headlight, fan switch (2nd or higher) and cooling fan are turned on.
*3: A/C switch and fan switch are turned on.
*4: Steering wheel fully turned.
