Torque Reduction Request Signal
Inspection Using An Oscilloscope (Reference)

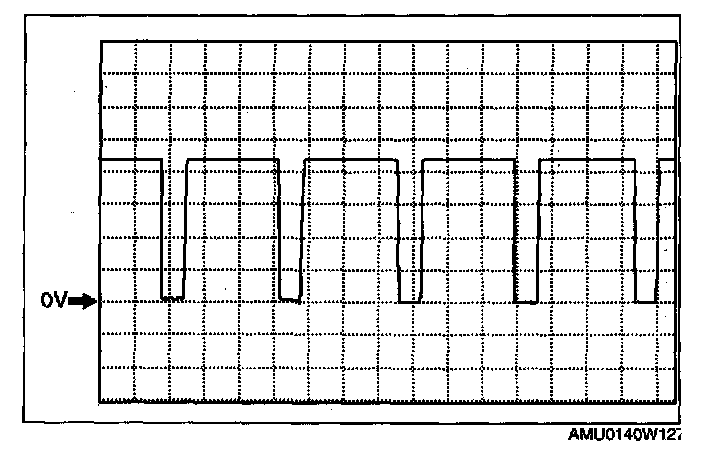

Torque reduction request signal
- PCM terminal: 19 (+) - 103 (-)
- Oscilloscope setting: 1 V/DIV (Y), 2 ms/DIV (X), DC range
- Vehicle condition: idle after warm up
Torque reduction request signal
- PCM terminal: 19 (+) - 103 (-)
- Oscilloscope setting: 1 V/DIV (Y), 2 ms/DIV (X), DC range
- Vehicle condition: idle after warm up
