Component Tests and General Diagnostics

KEYLESS CONTROL MODULE INSPECTION

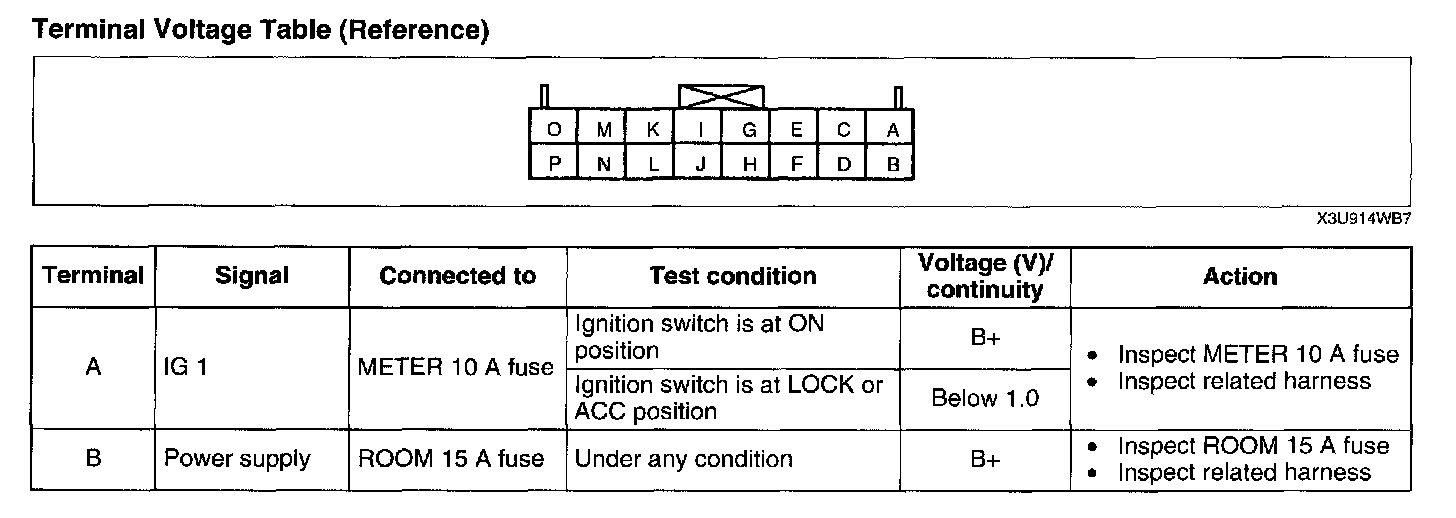

Terminal Voltage Table (Reference) Part 1:

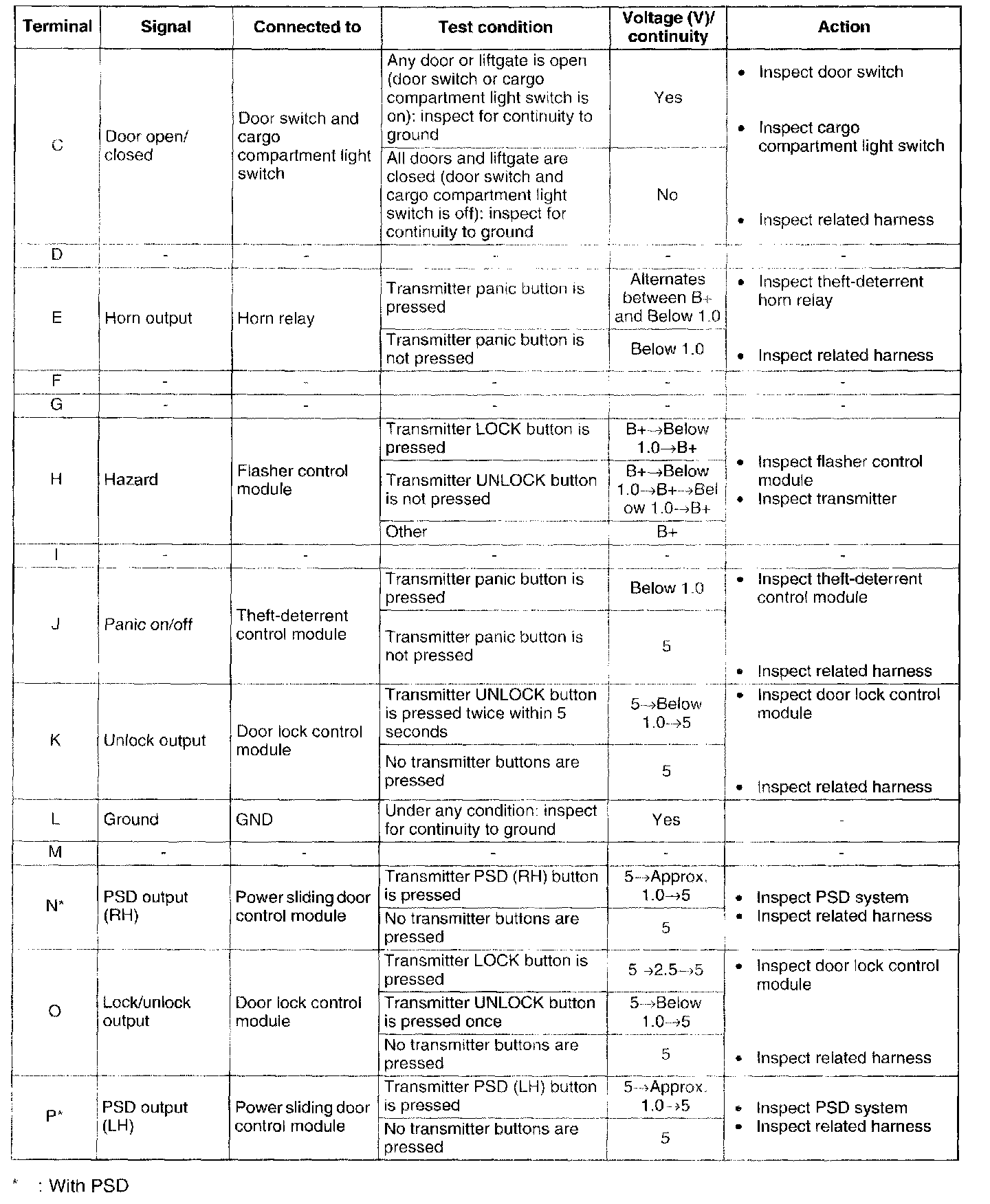

Terminal Voltage Table (Reference) Part 2:

1. Measure the voltage at the keyless control module terminals as indicated.
2. Disconnect the keyless control module connector before inspecting for continuity at terminals C and L.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, perform the keyless entry system symptom troubleshooting.
