Engine Control Module

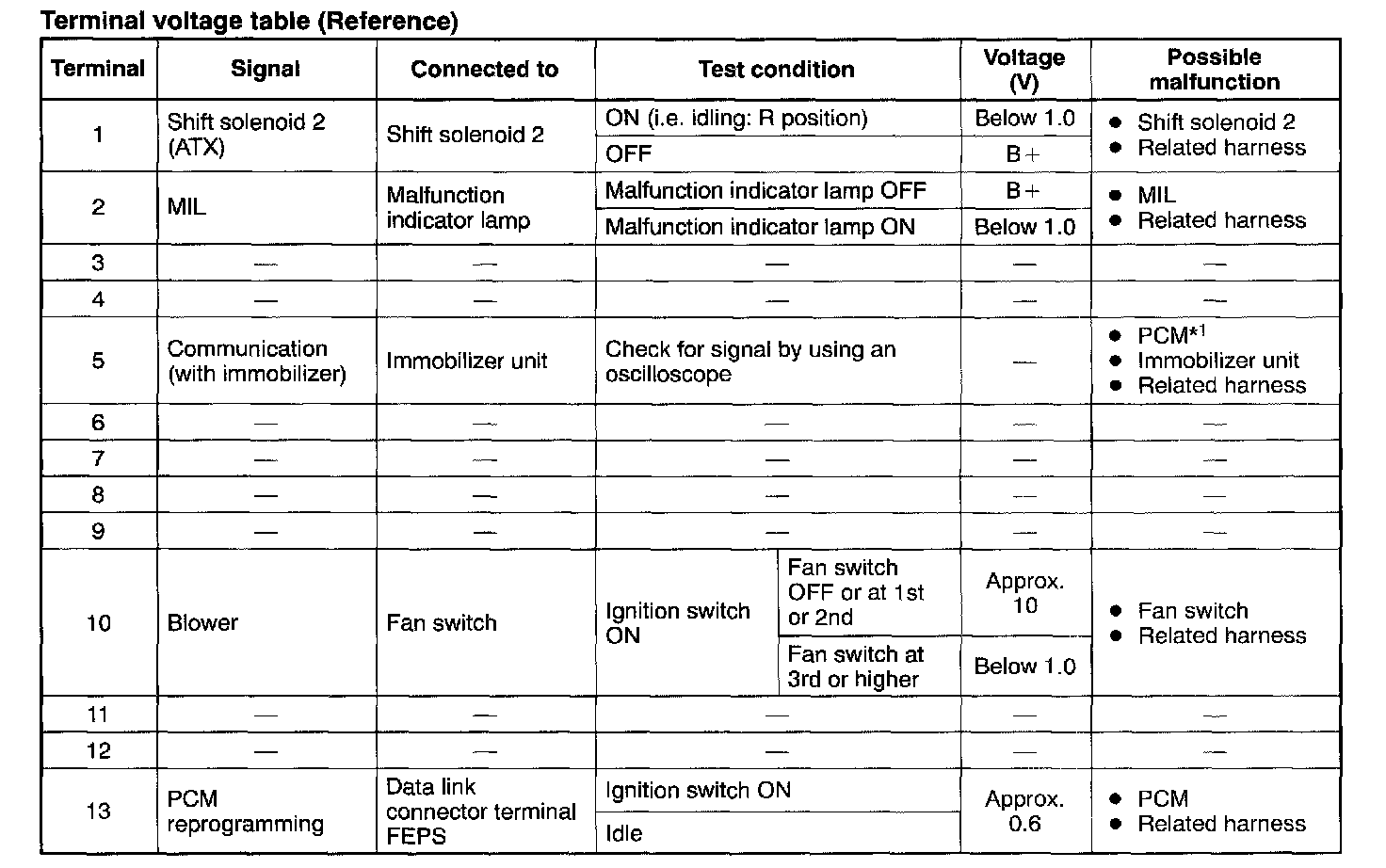

Terminal 1 - 13:

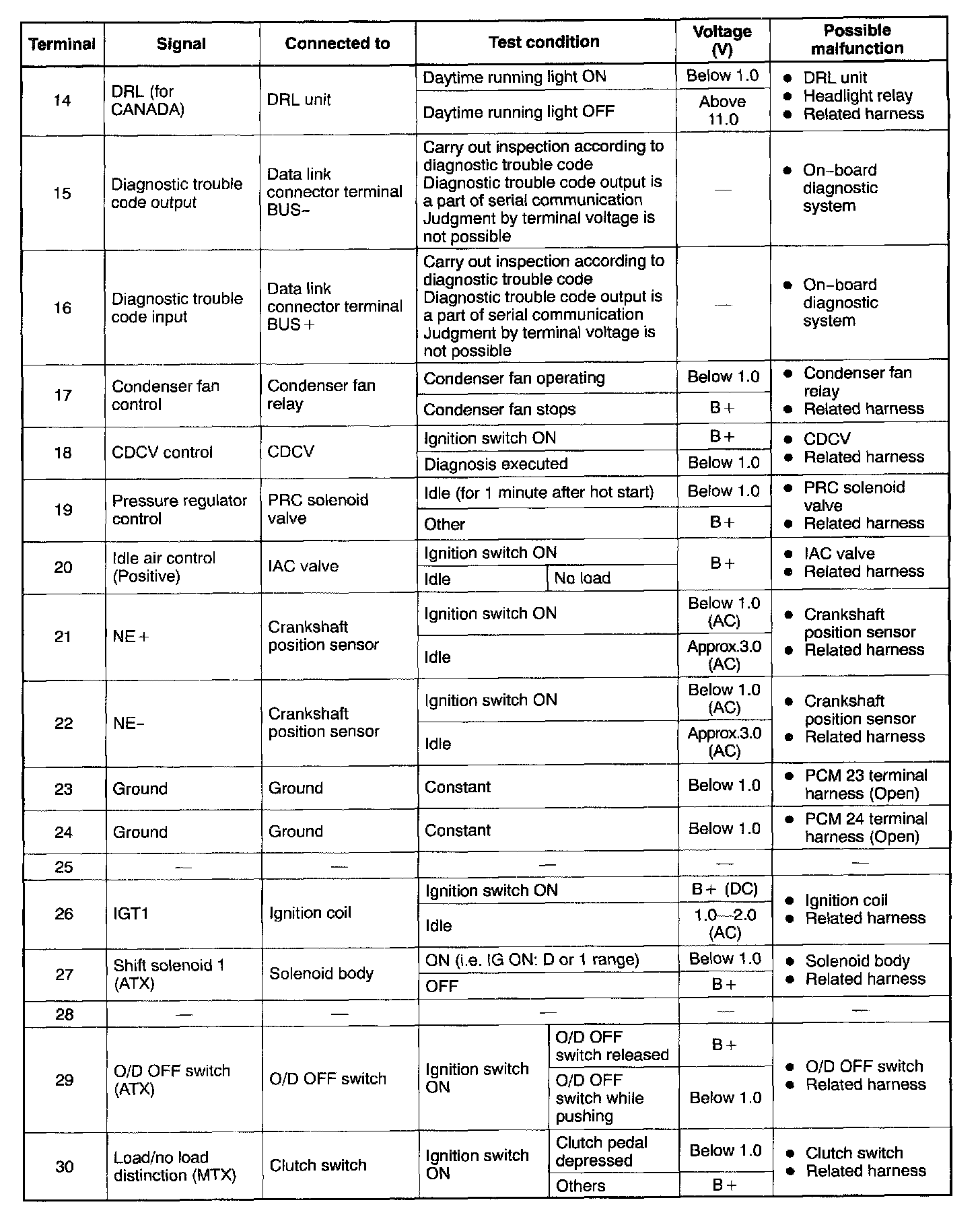

Terminal 14 - 30:

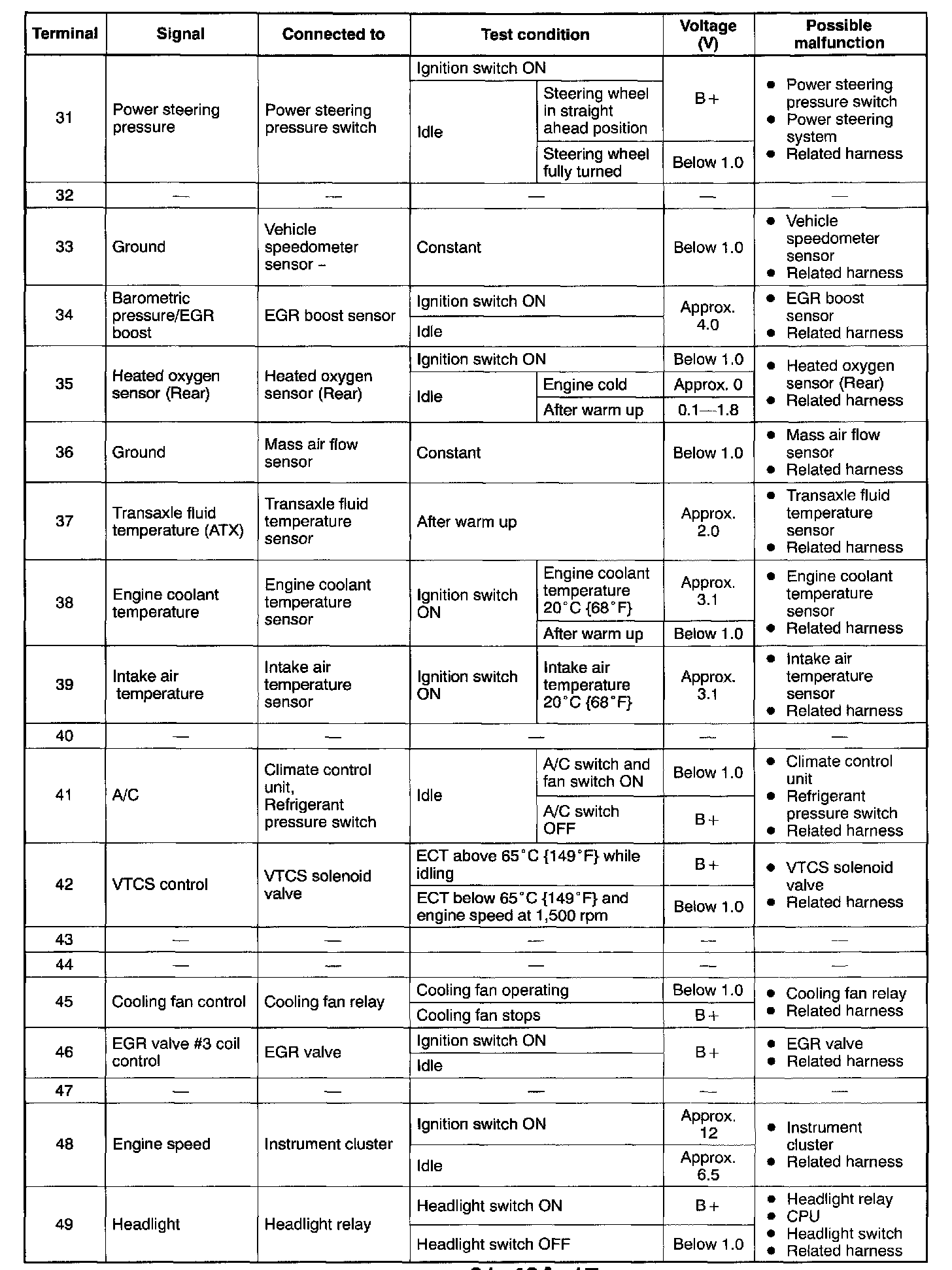

Terminal 31 - 49:

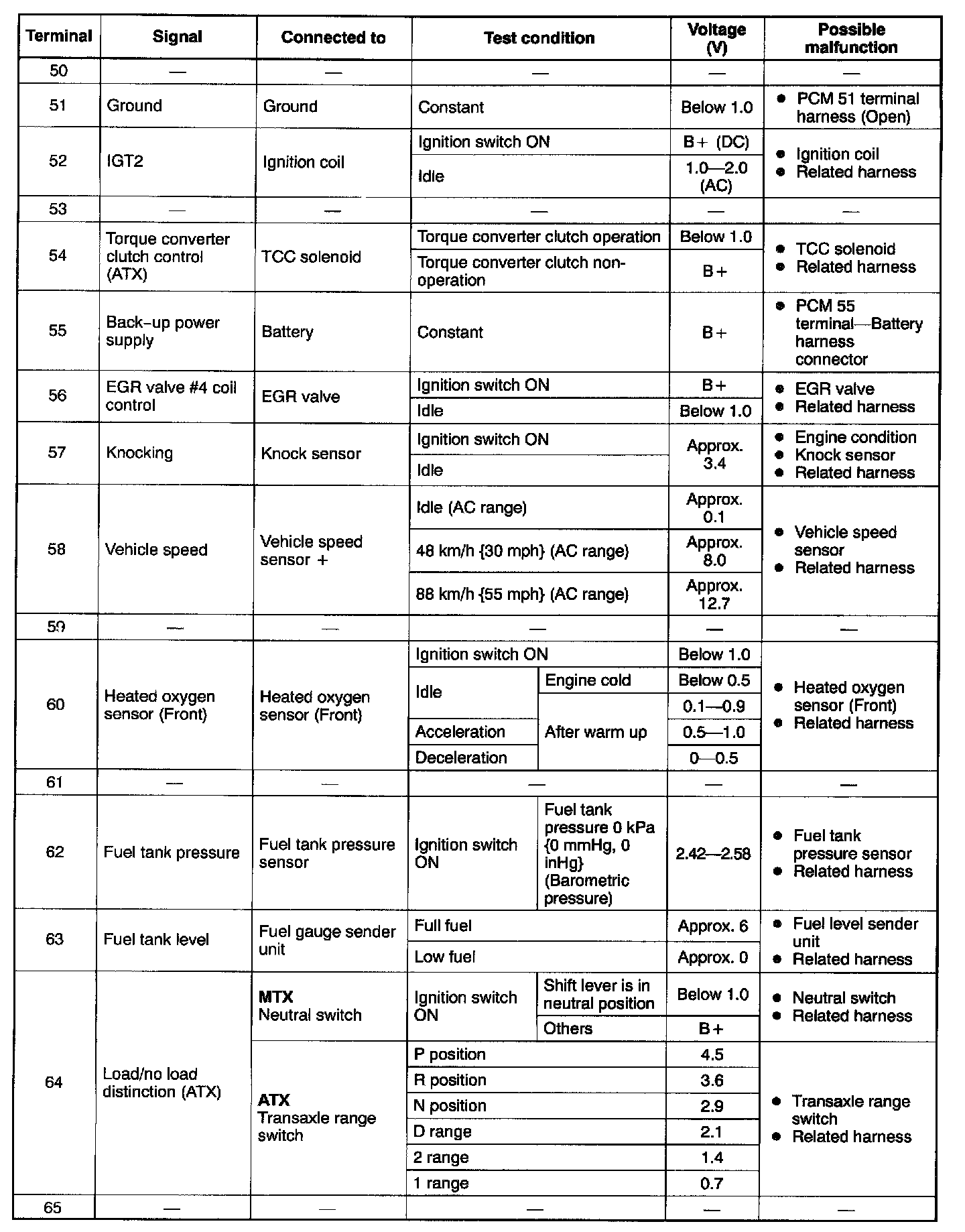

Terminal 50 - 65:

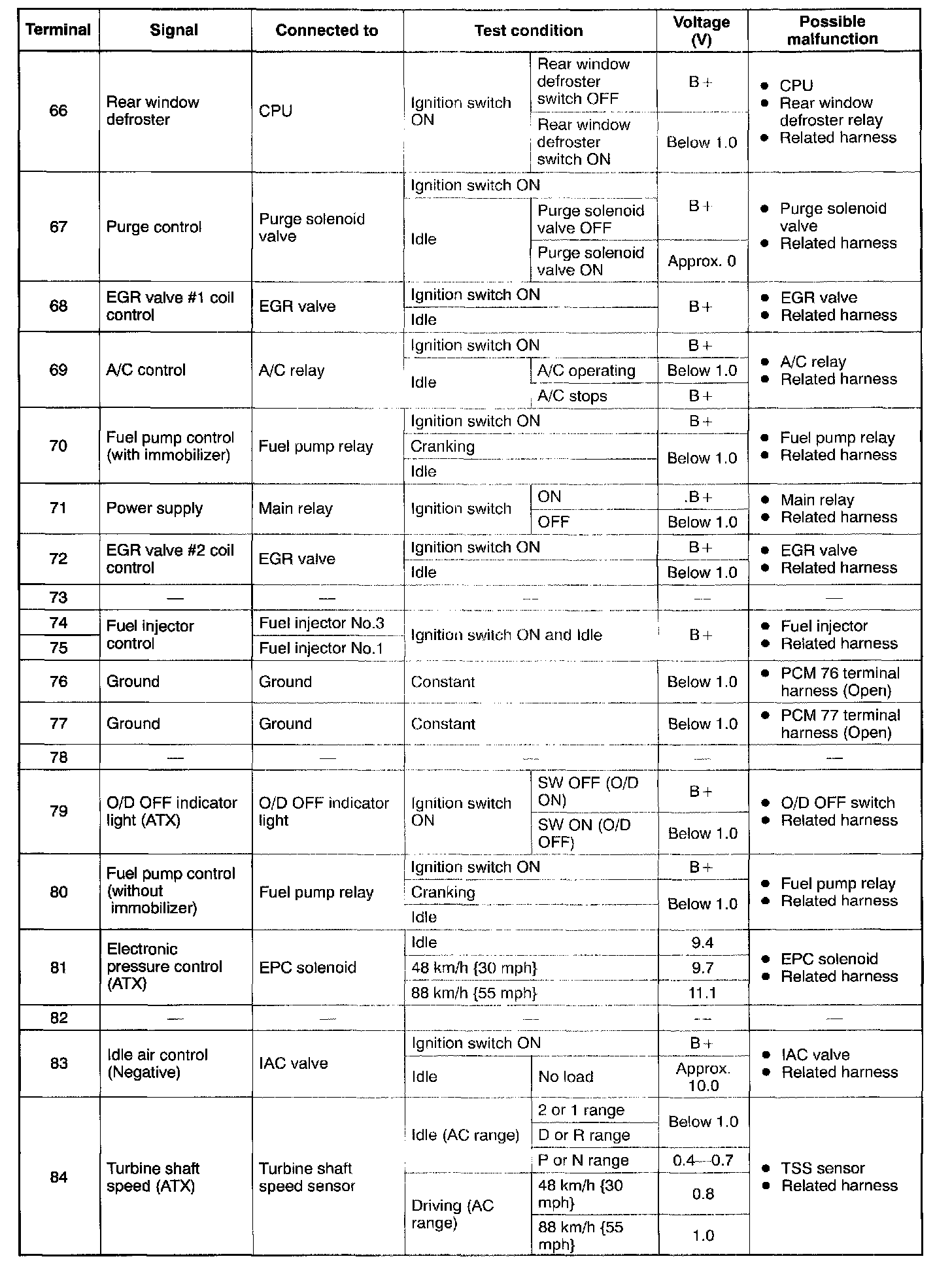

Terminal 66 - 84:

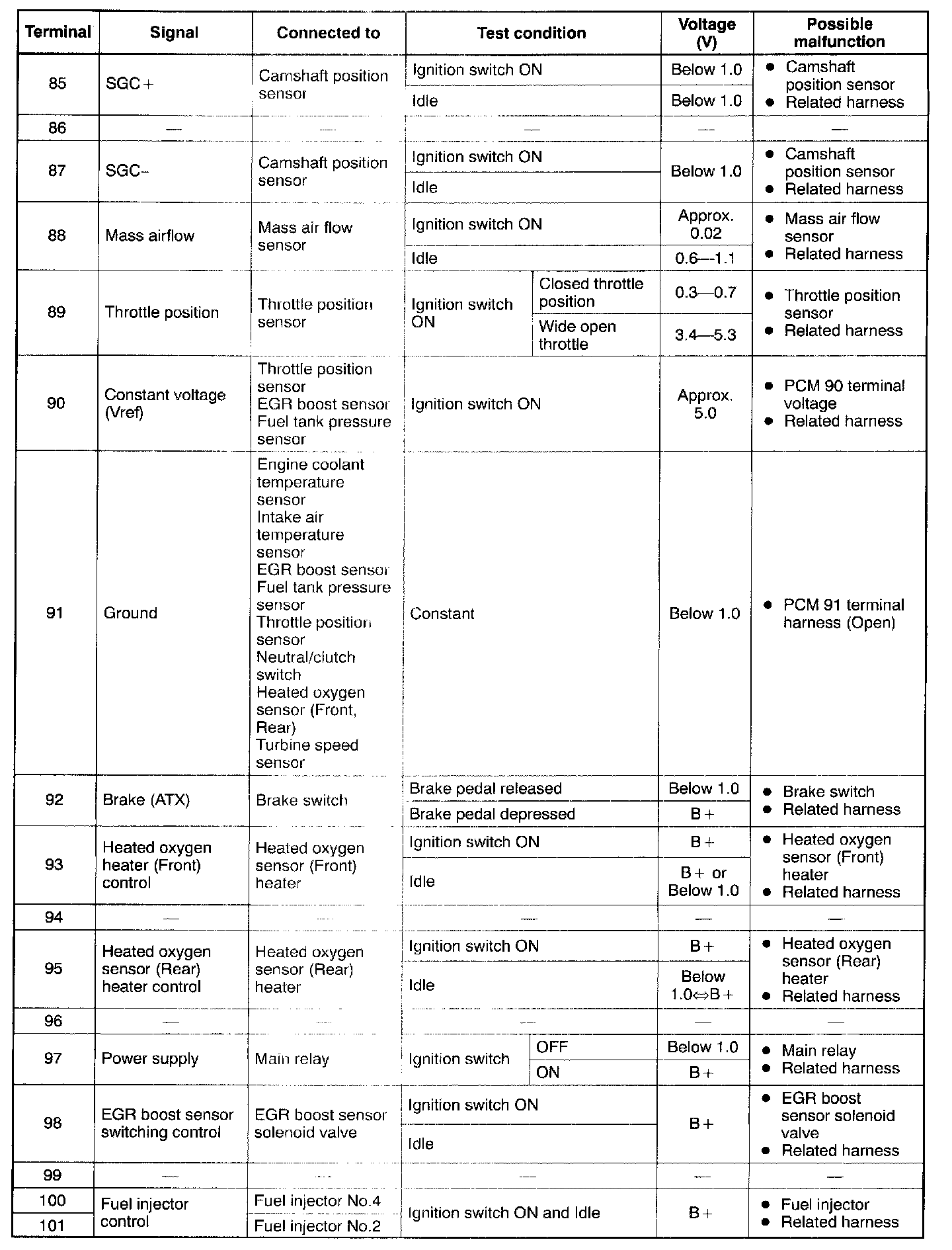

Terminal 85 - 101:



Terminal 102 - 104:
