Engine Control Module

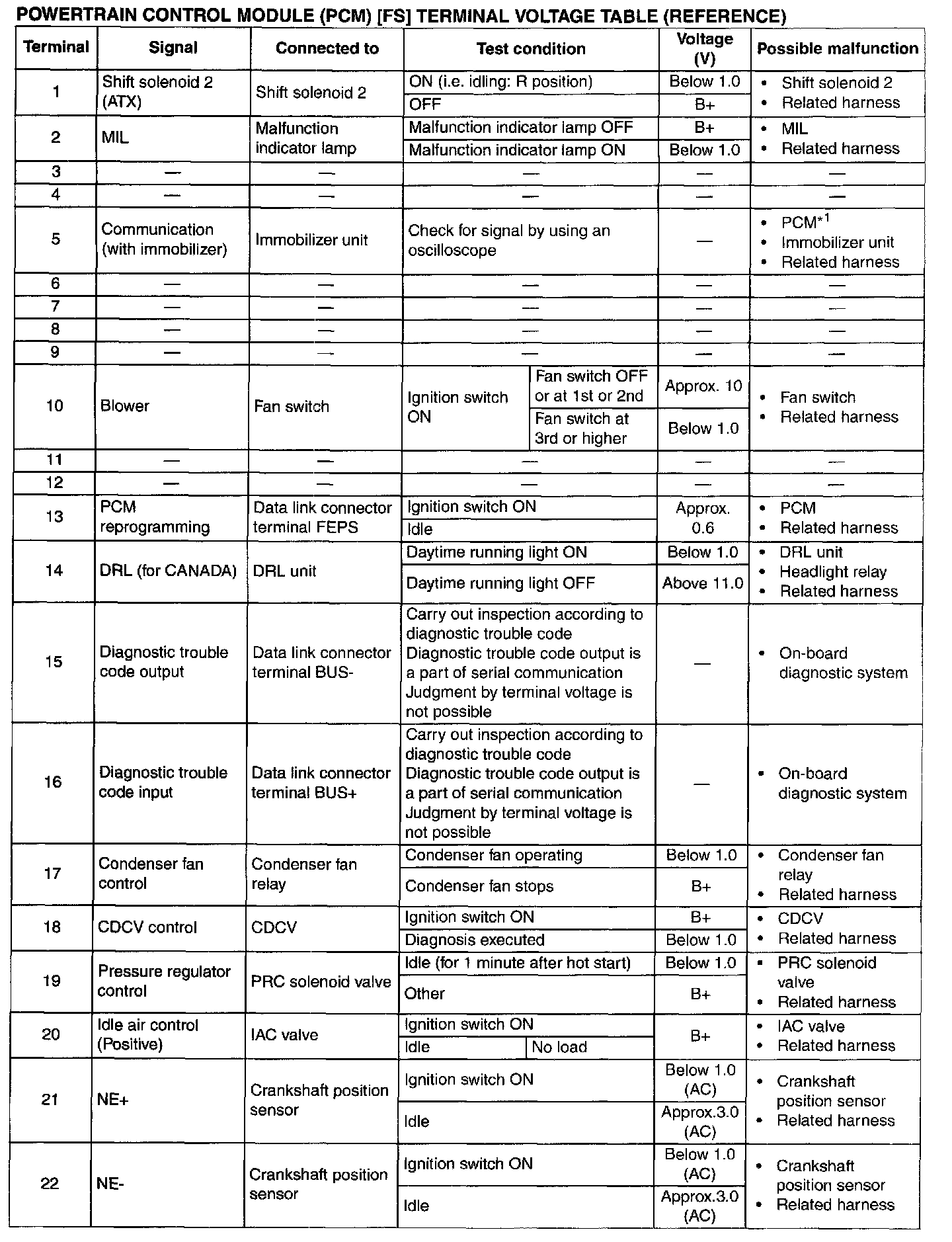

Terminals 1 - 22:

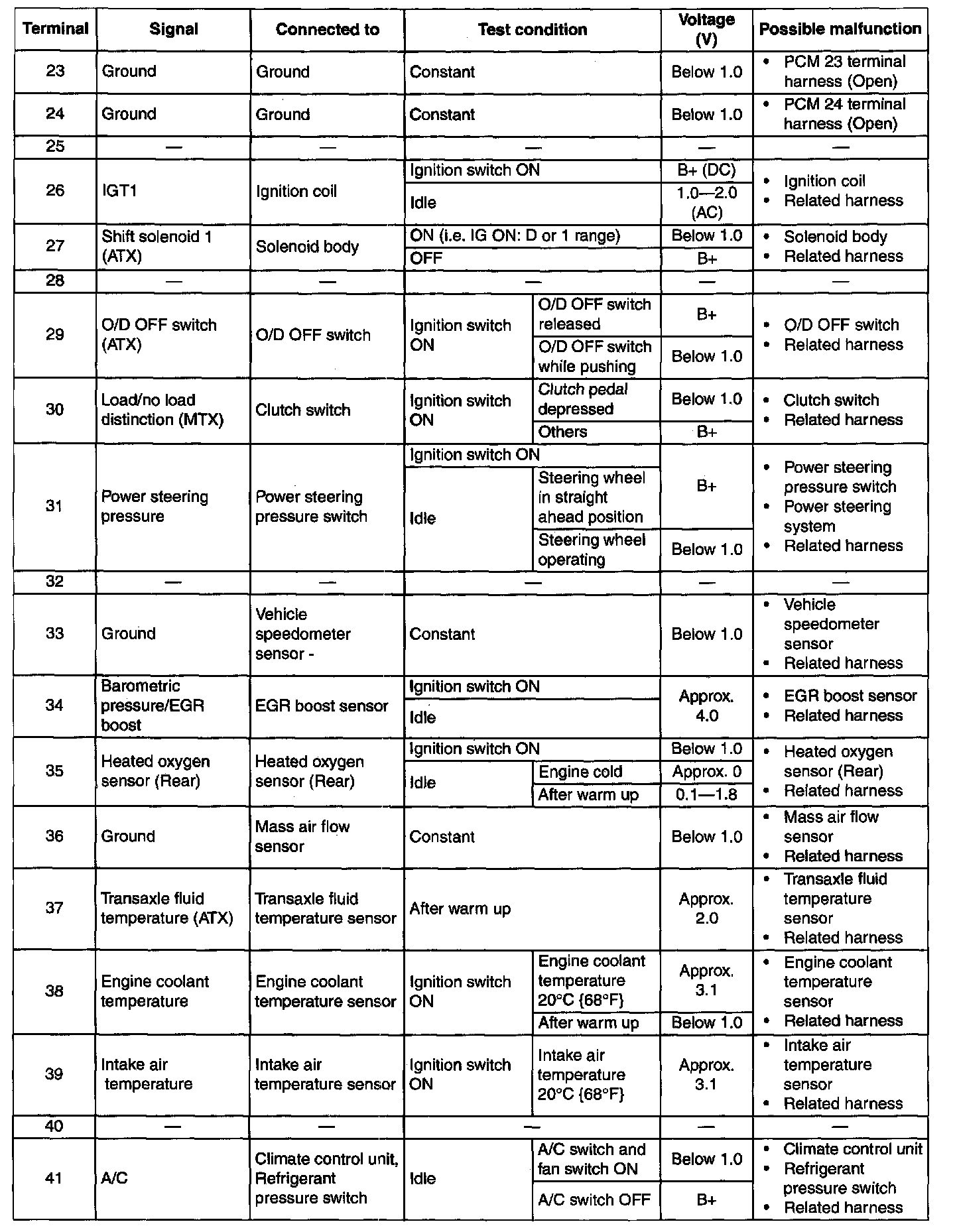

Terminals 23 - 41:

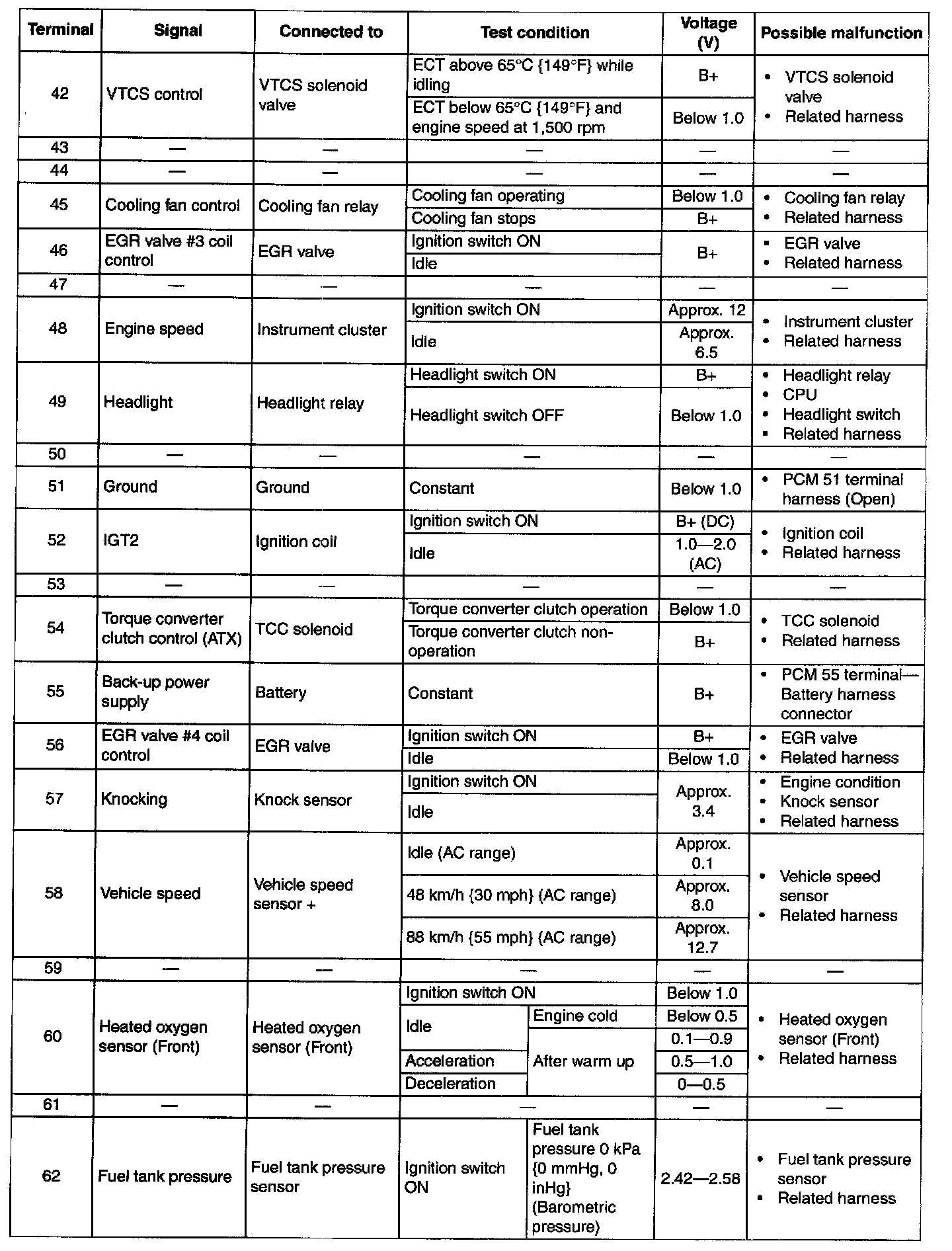

Terminals 42 - 62:

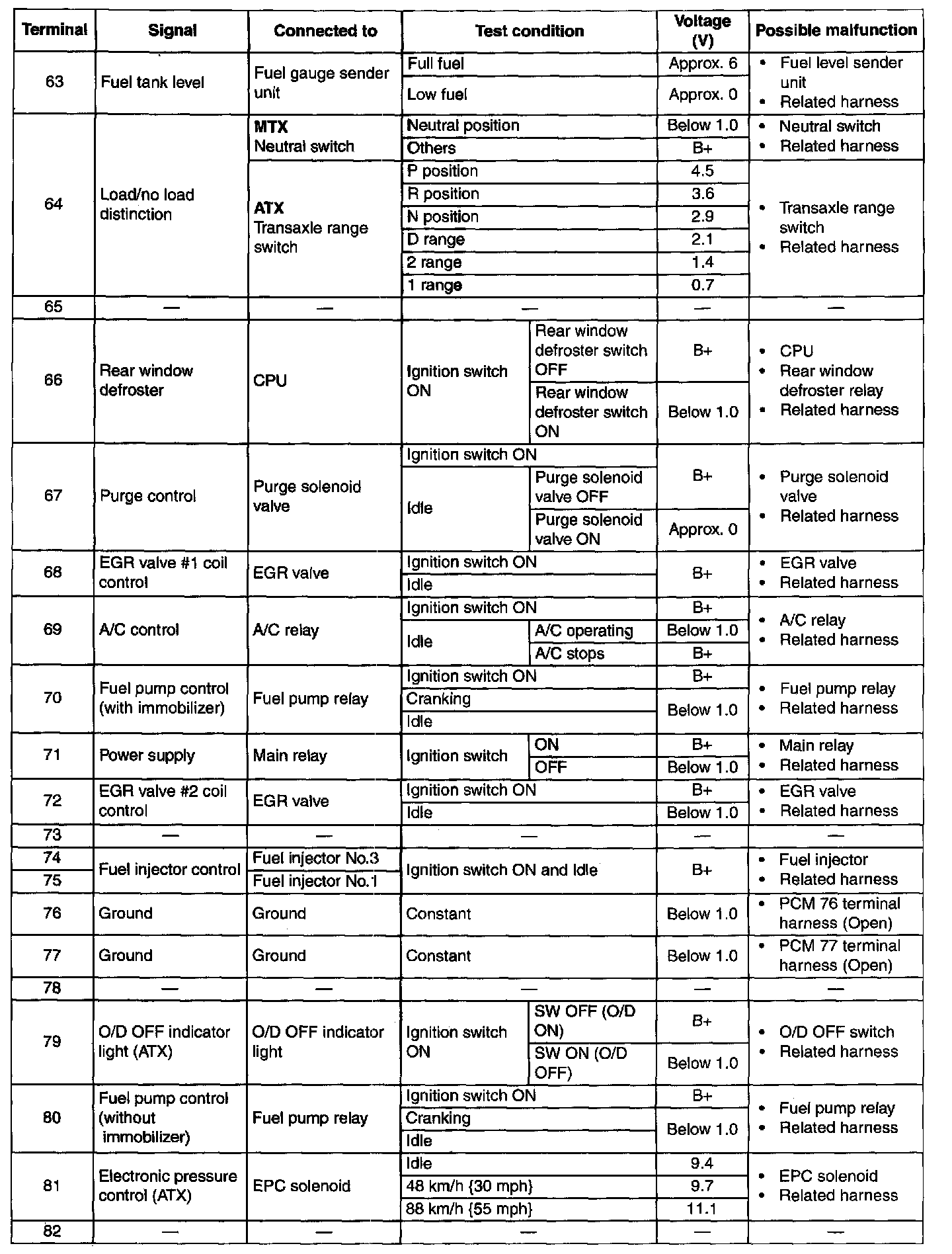

Terminals 63 - 82:

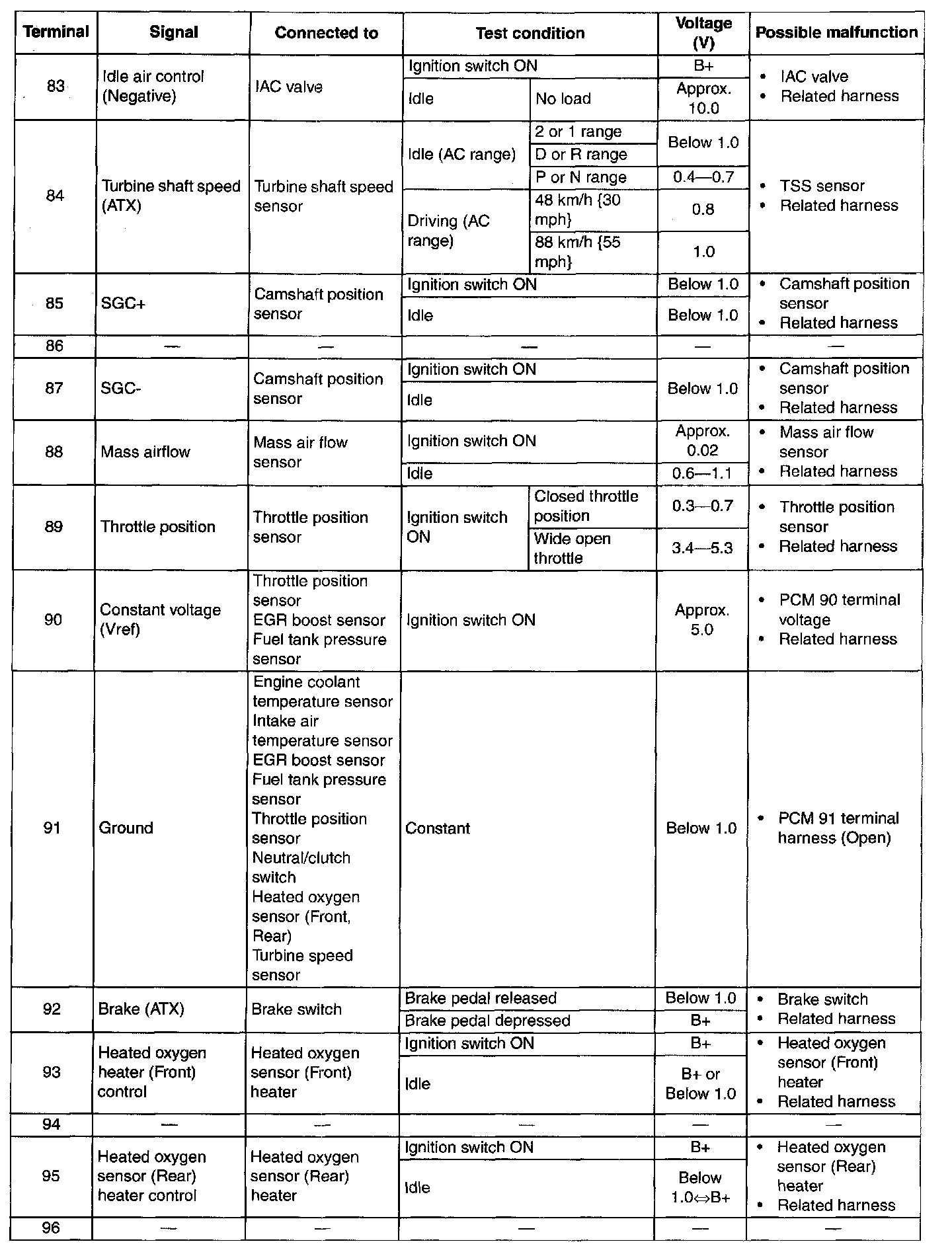

Terminals 83 - 96:

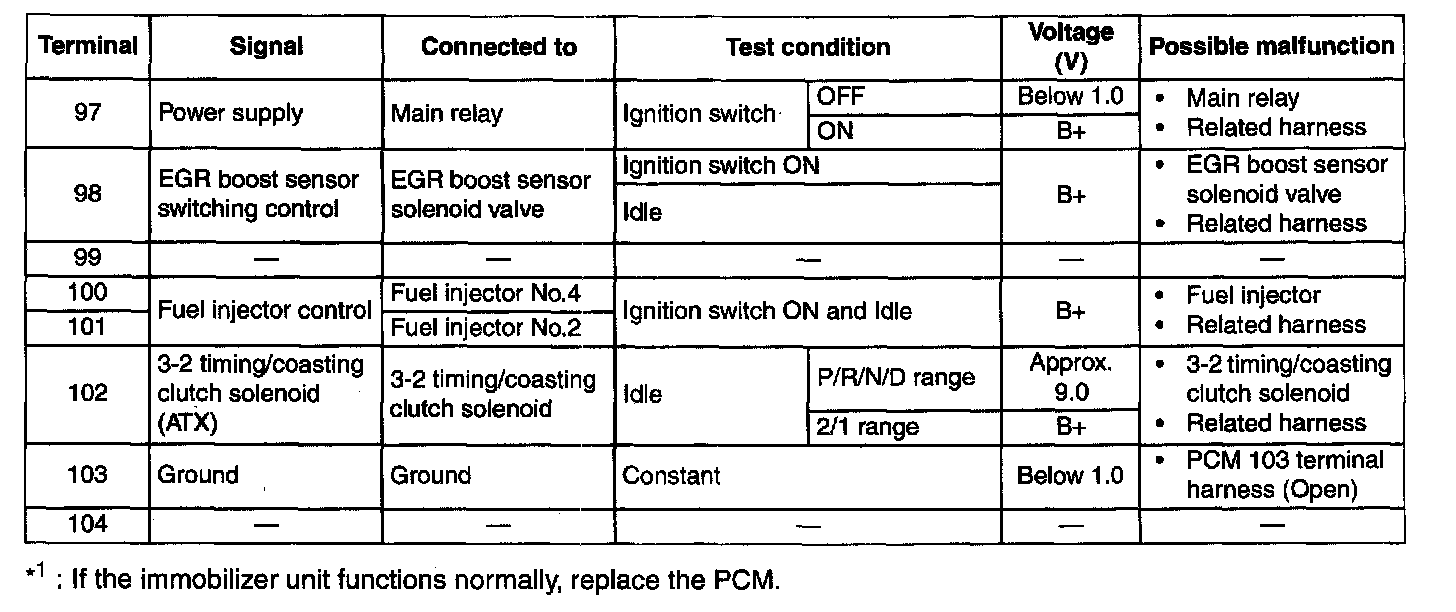

Terminals 97 - 104:
