Engine Control Module

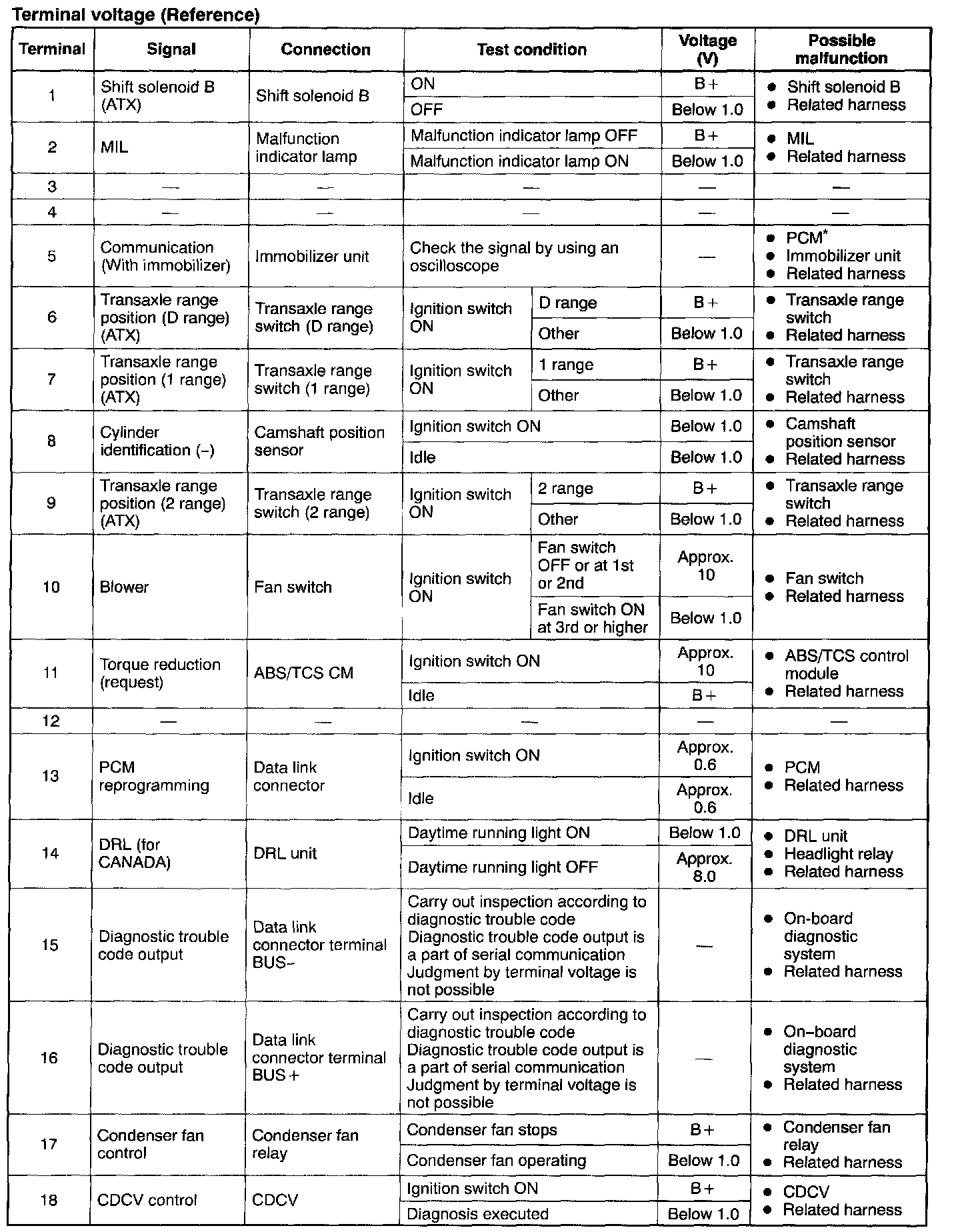

Terminal 1 - 18:

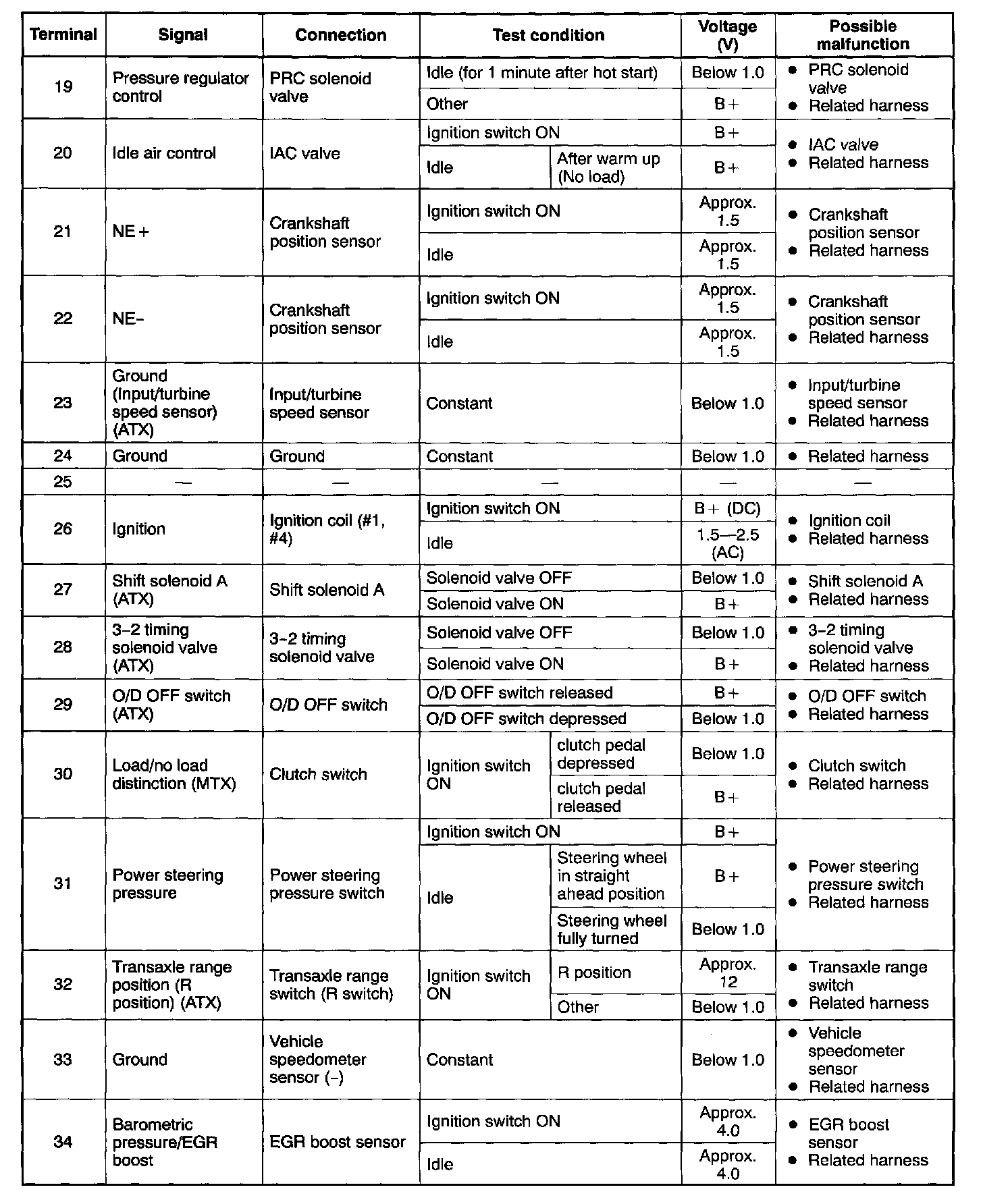

Terminal 19 - 34:

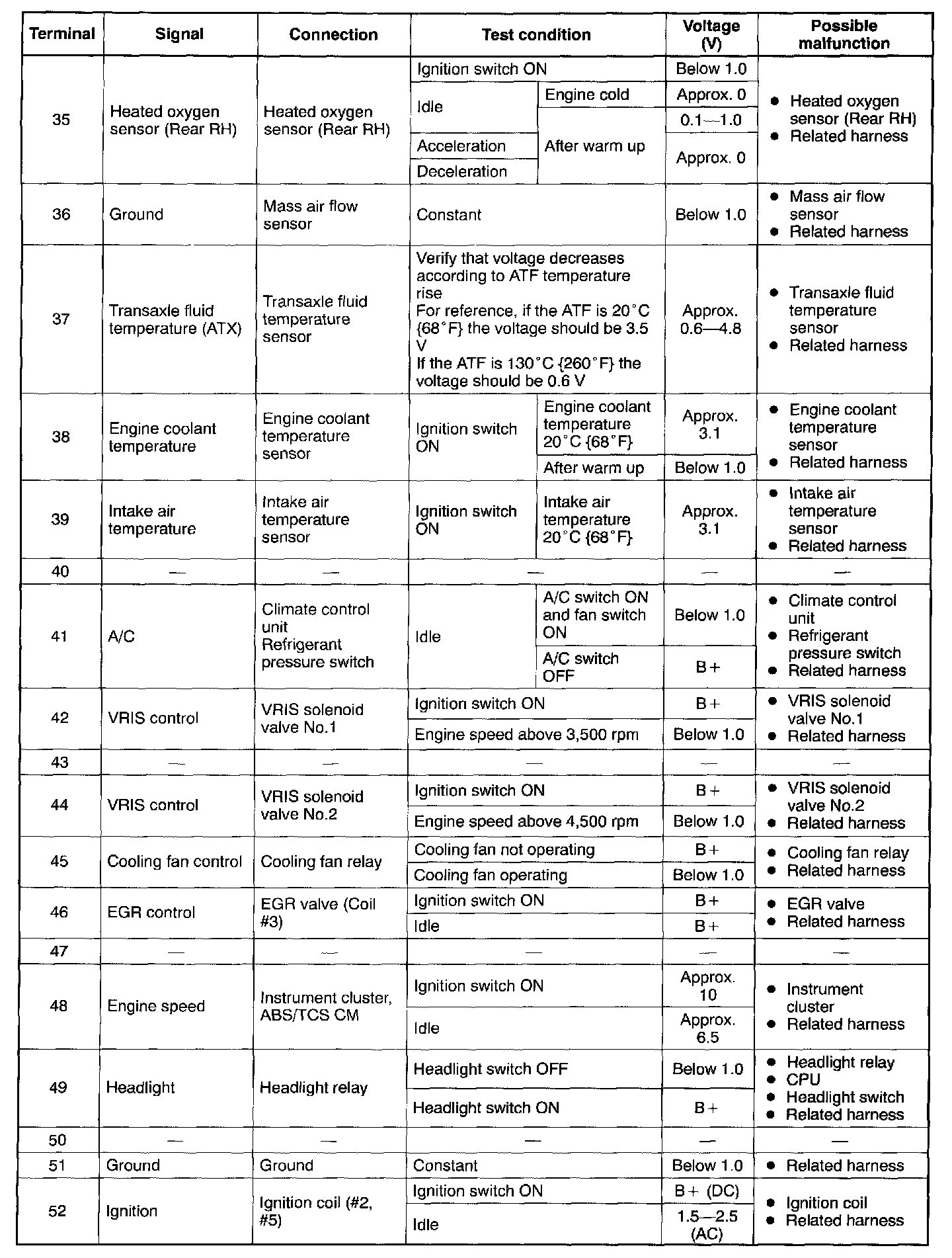

Terminal 35 - 52:

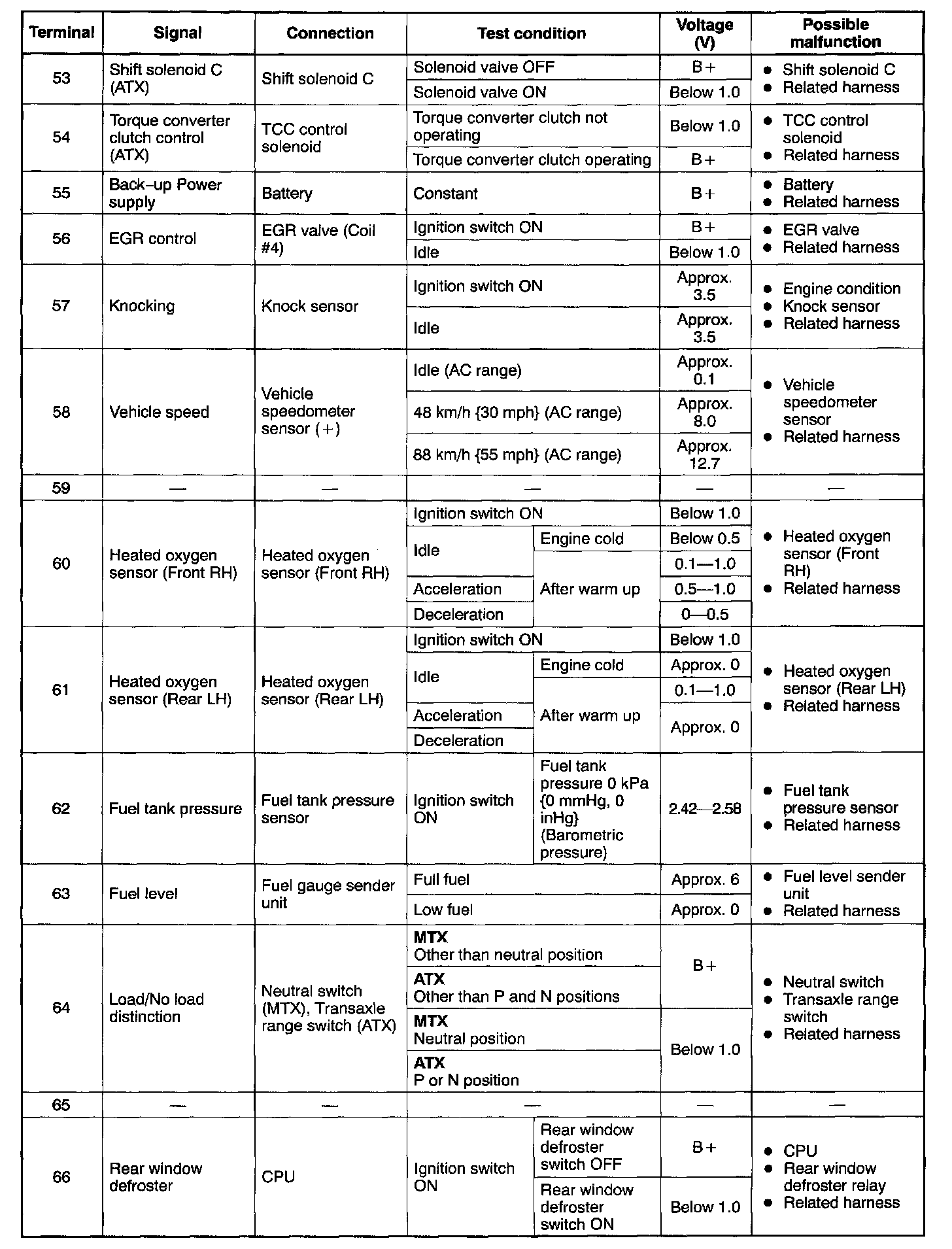

Terminal 53 - 66:

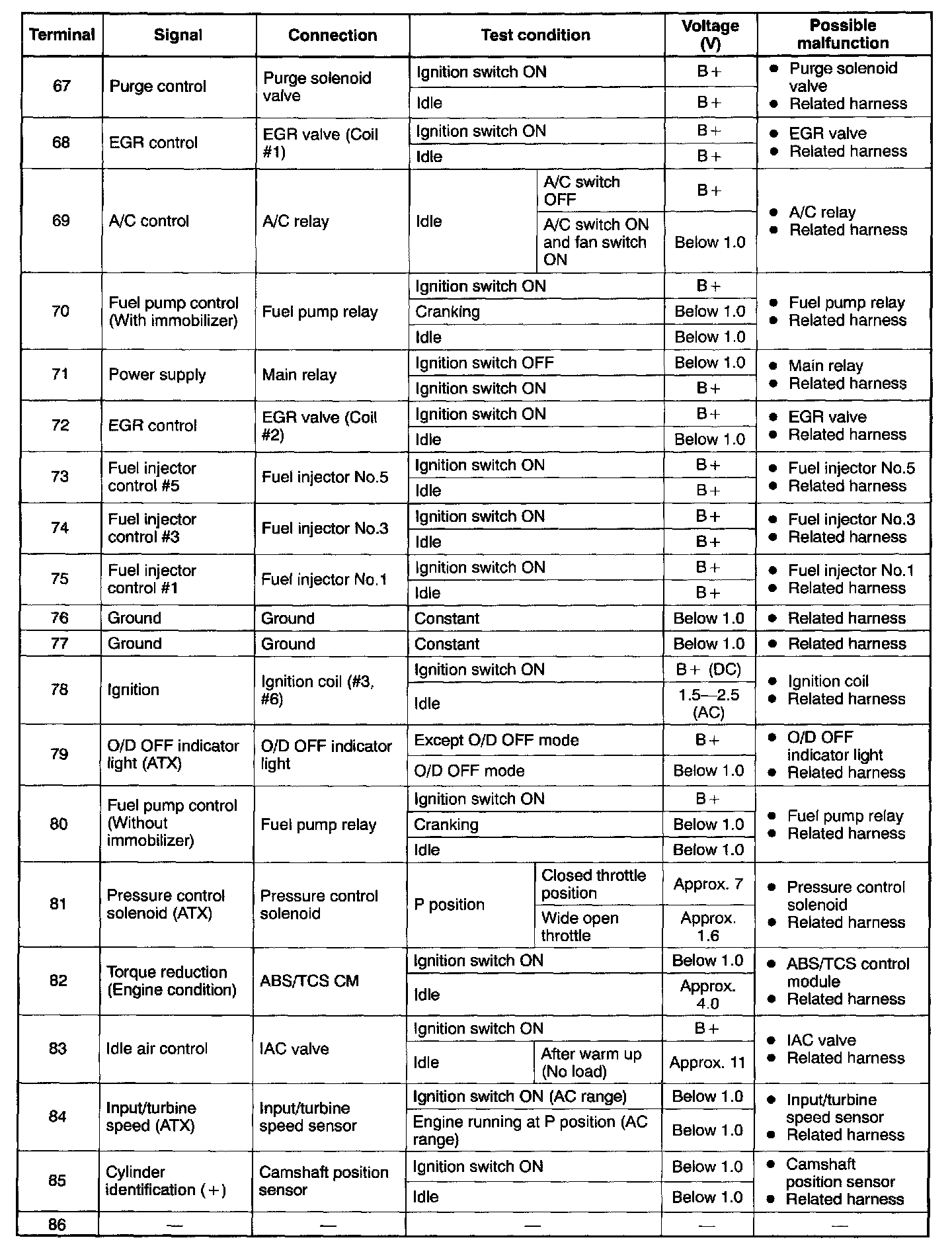

Terminal 67 - 86:

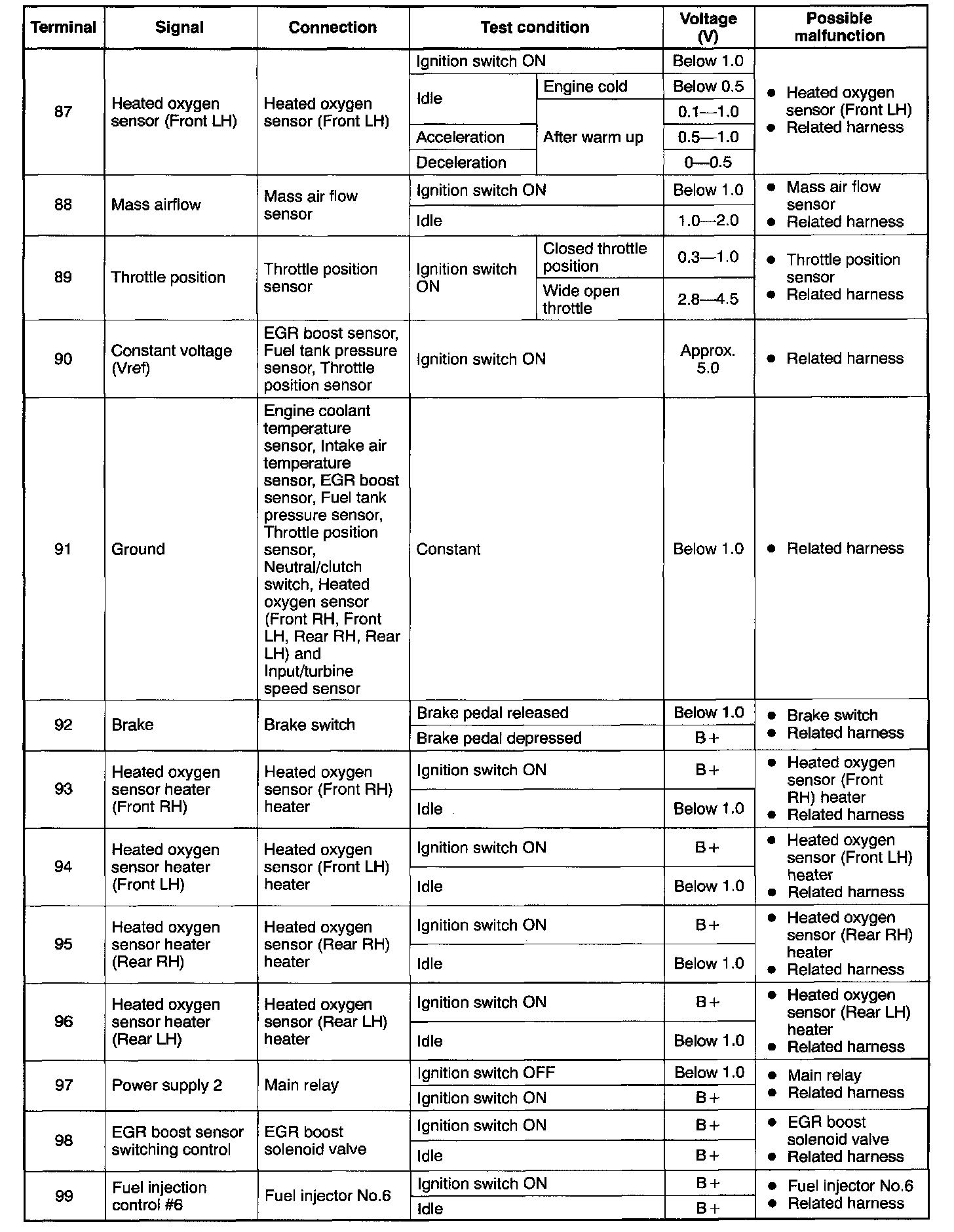

Terminal 87 - 99:

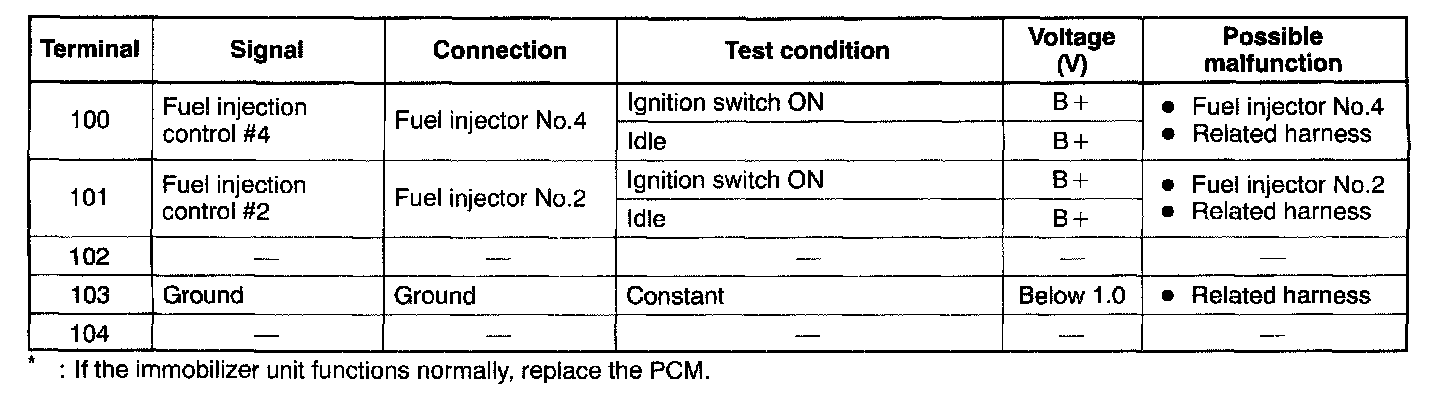

Terminal 100 - 104:
