Control System Components

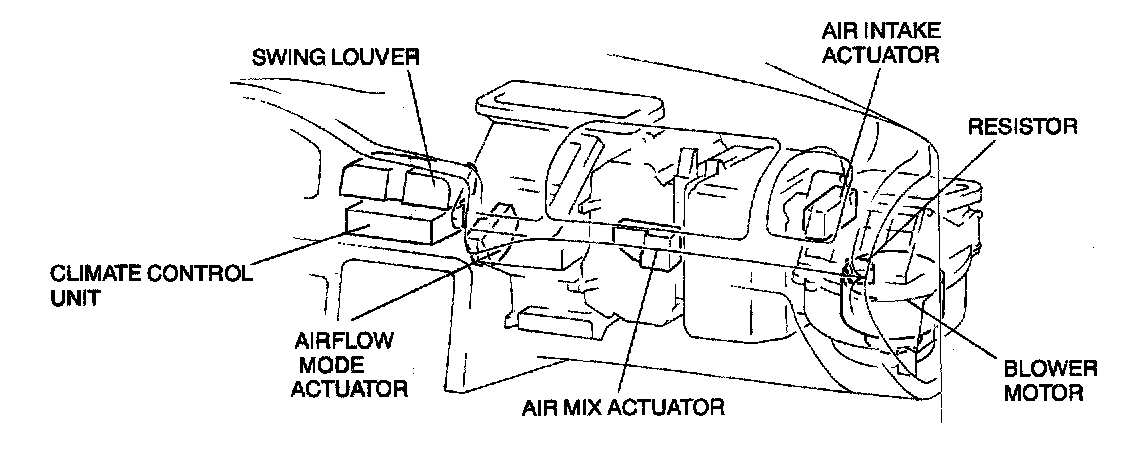

Control System Structural View - Passenger Compartment:

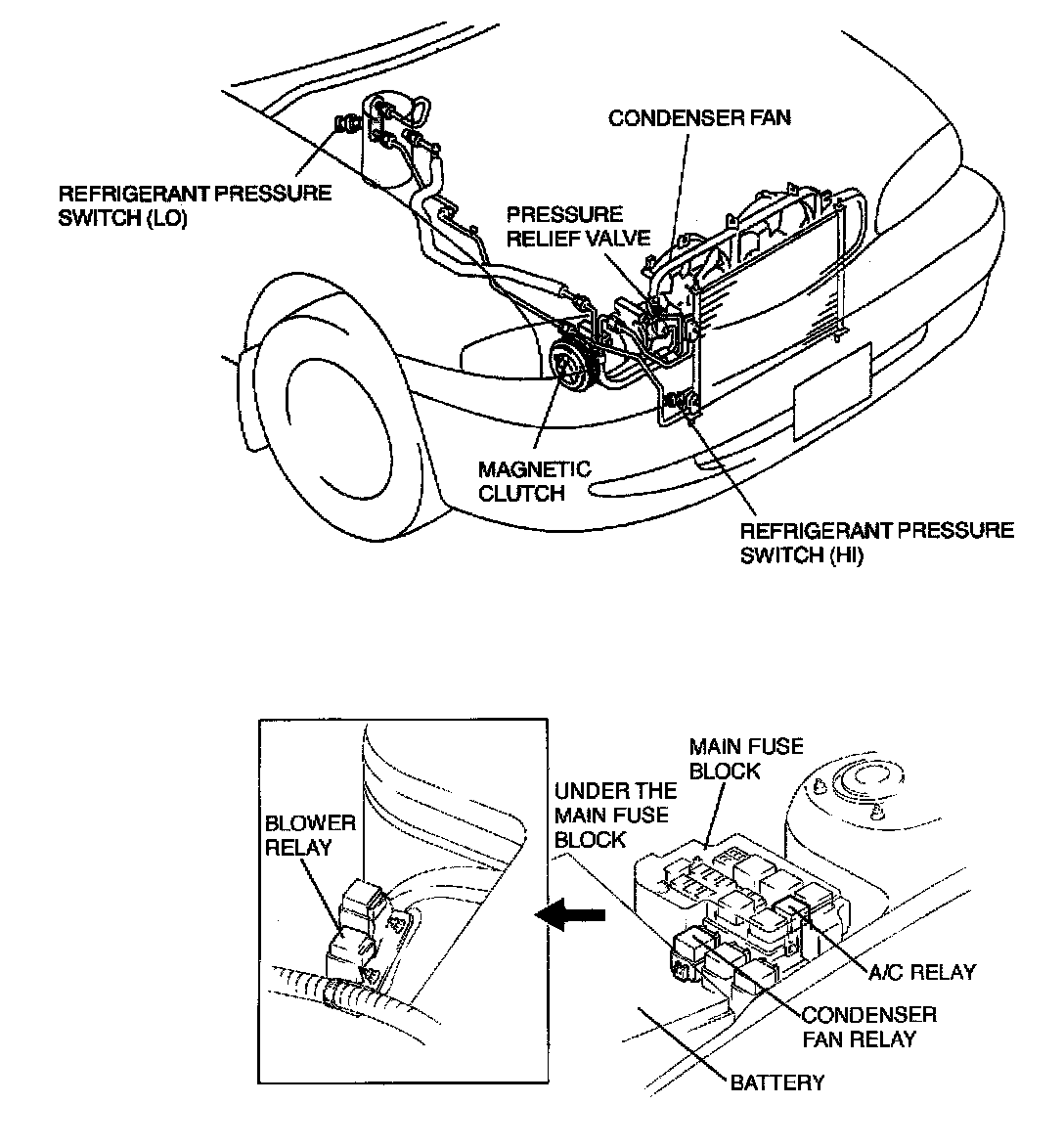

Control System Structural View - Engine Room:

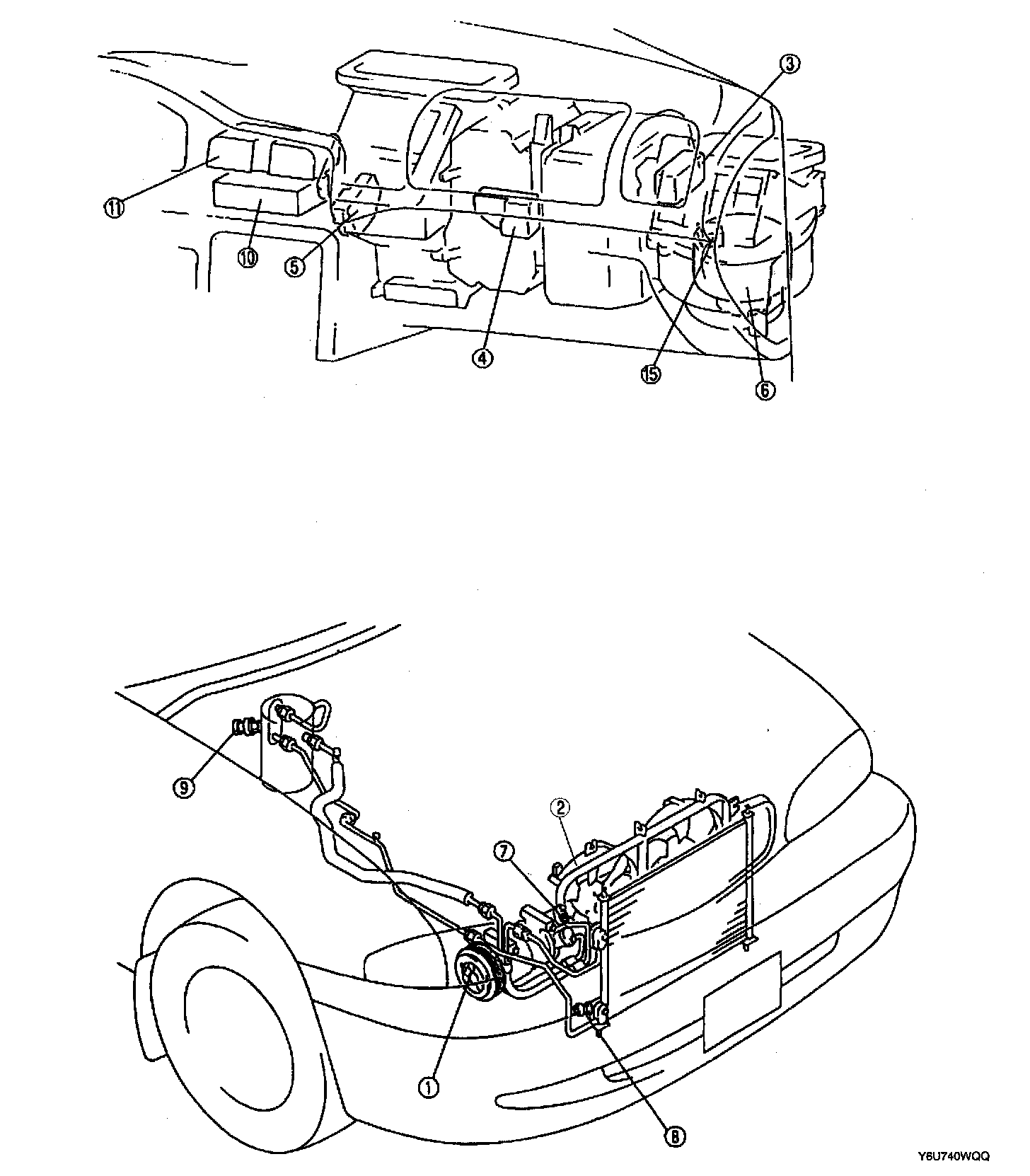

Control System Structural View - Part 1:

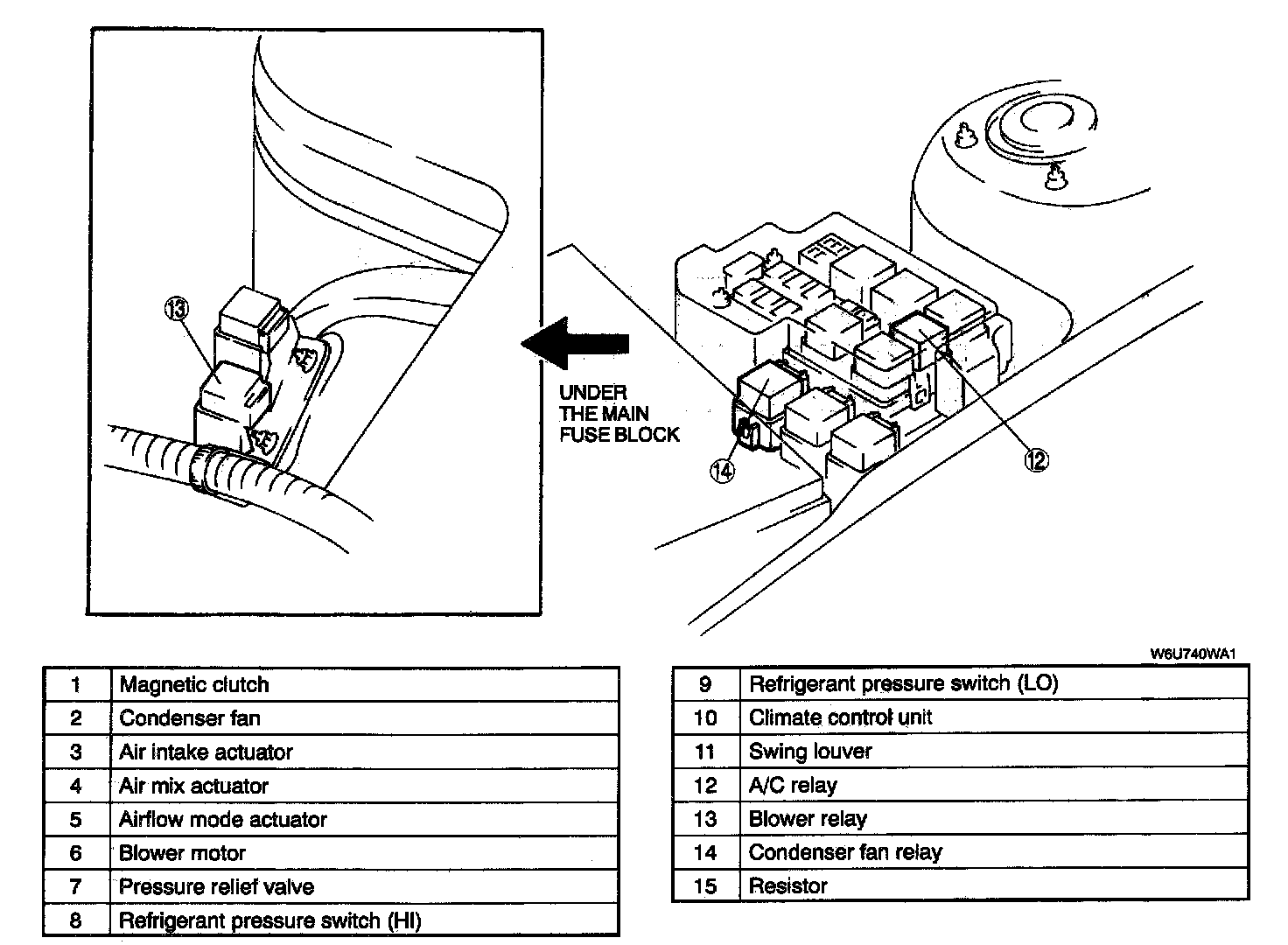

Control System Structural View - Part 2:
