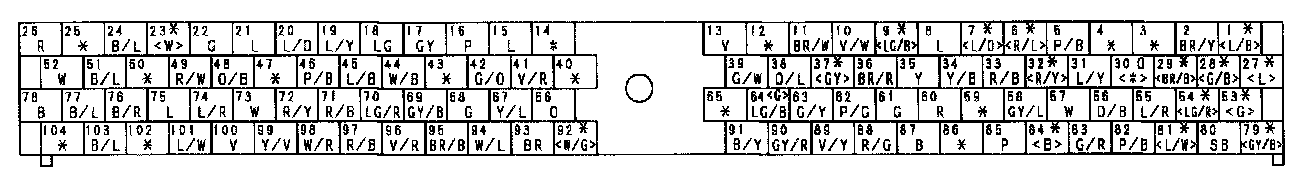

Engine Control Module

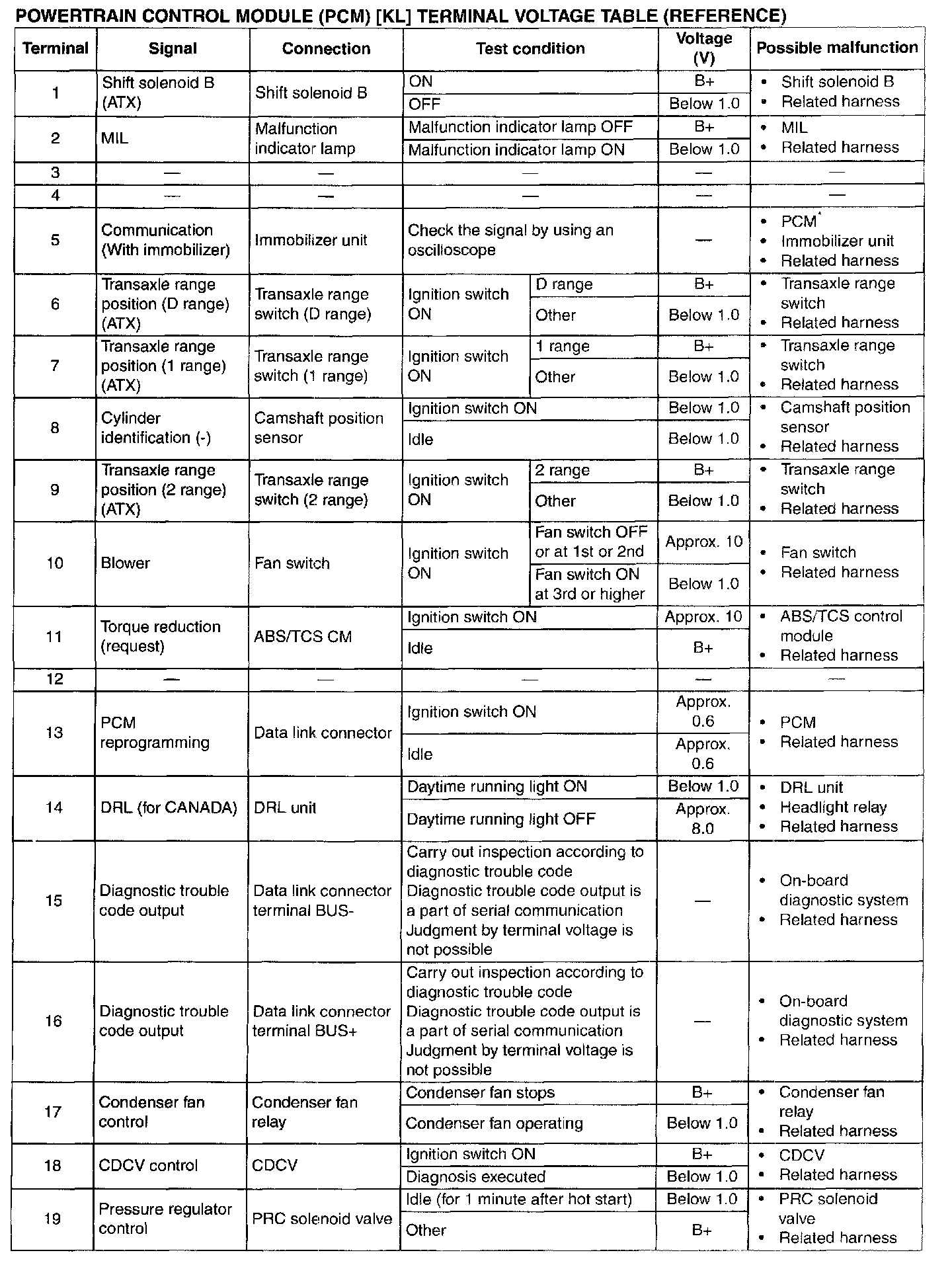

Terminals 1 - 19:

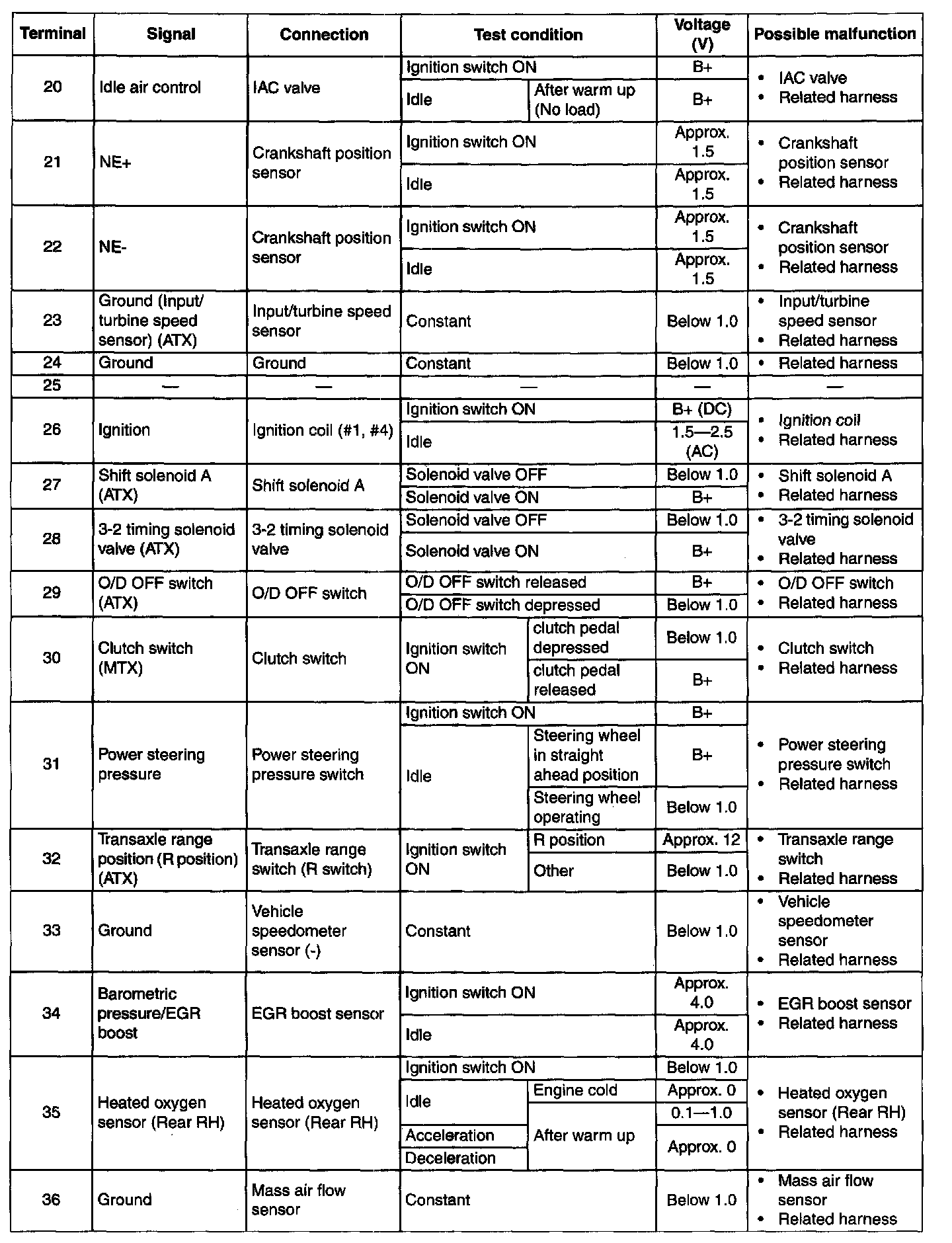

Terminals 20 - 36:

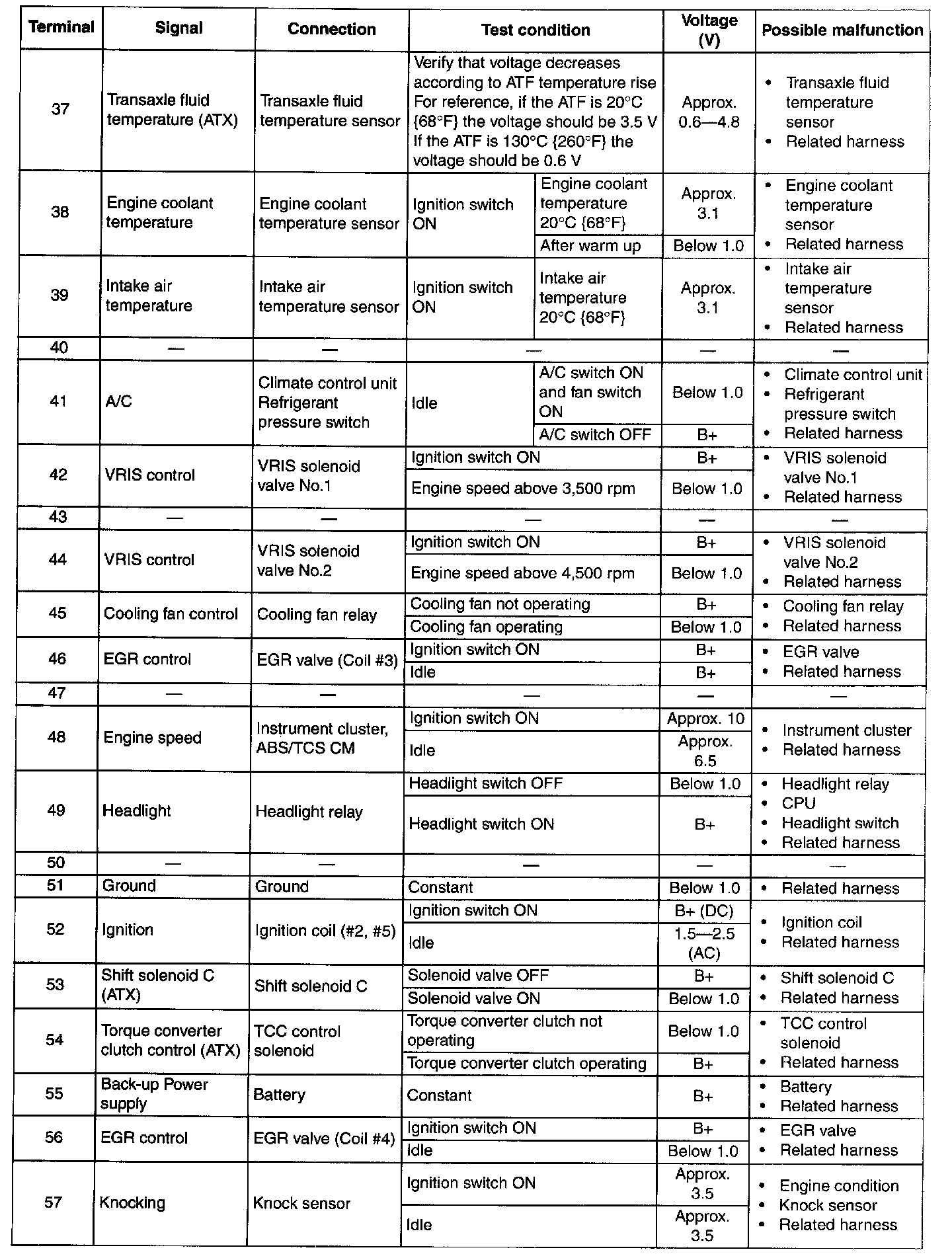

Terminals 37 - 57:

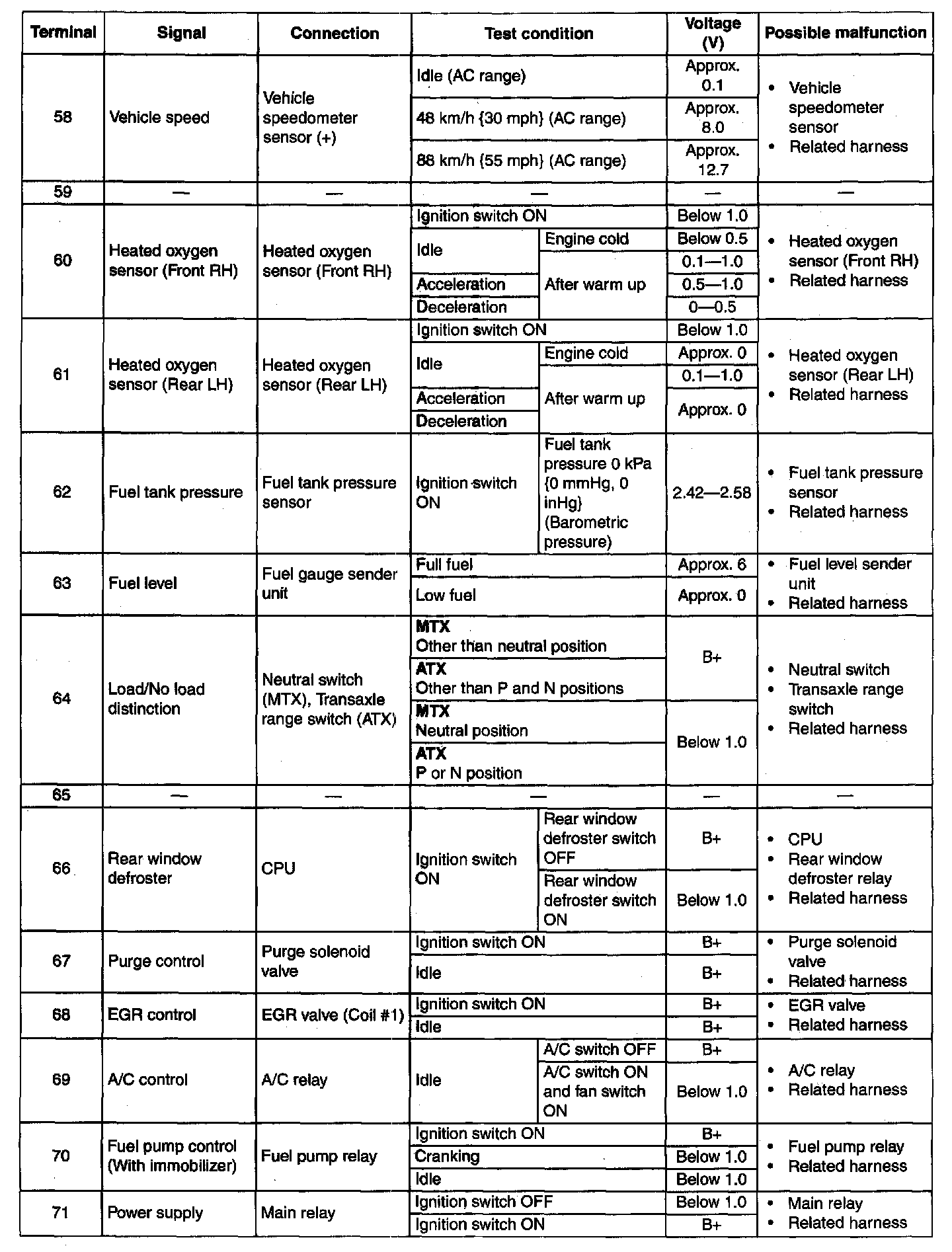

Terminals 58 - 71:

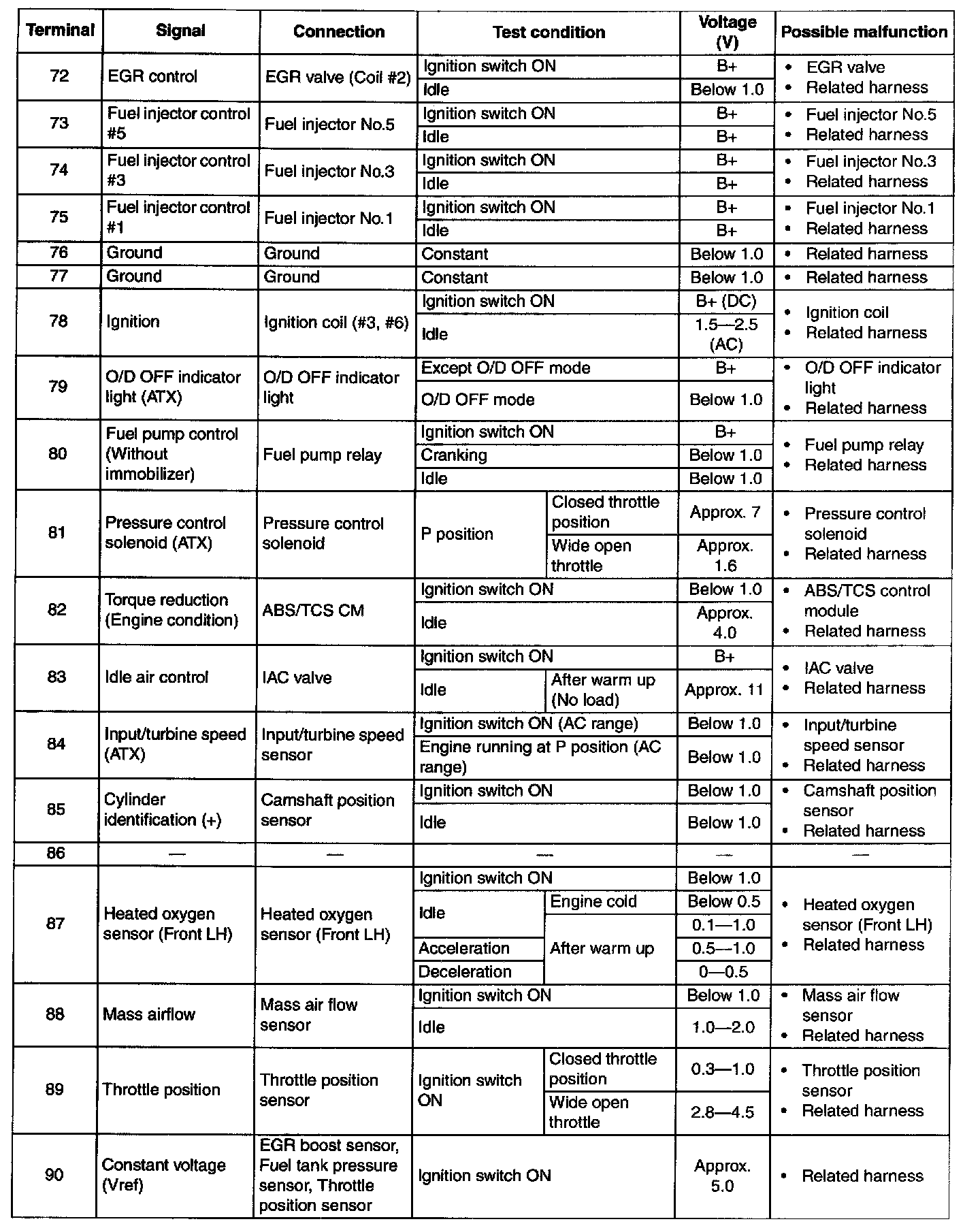

Terminals 72 - 90:

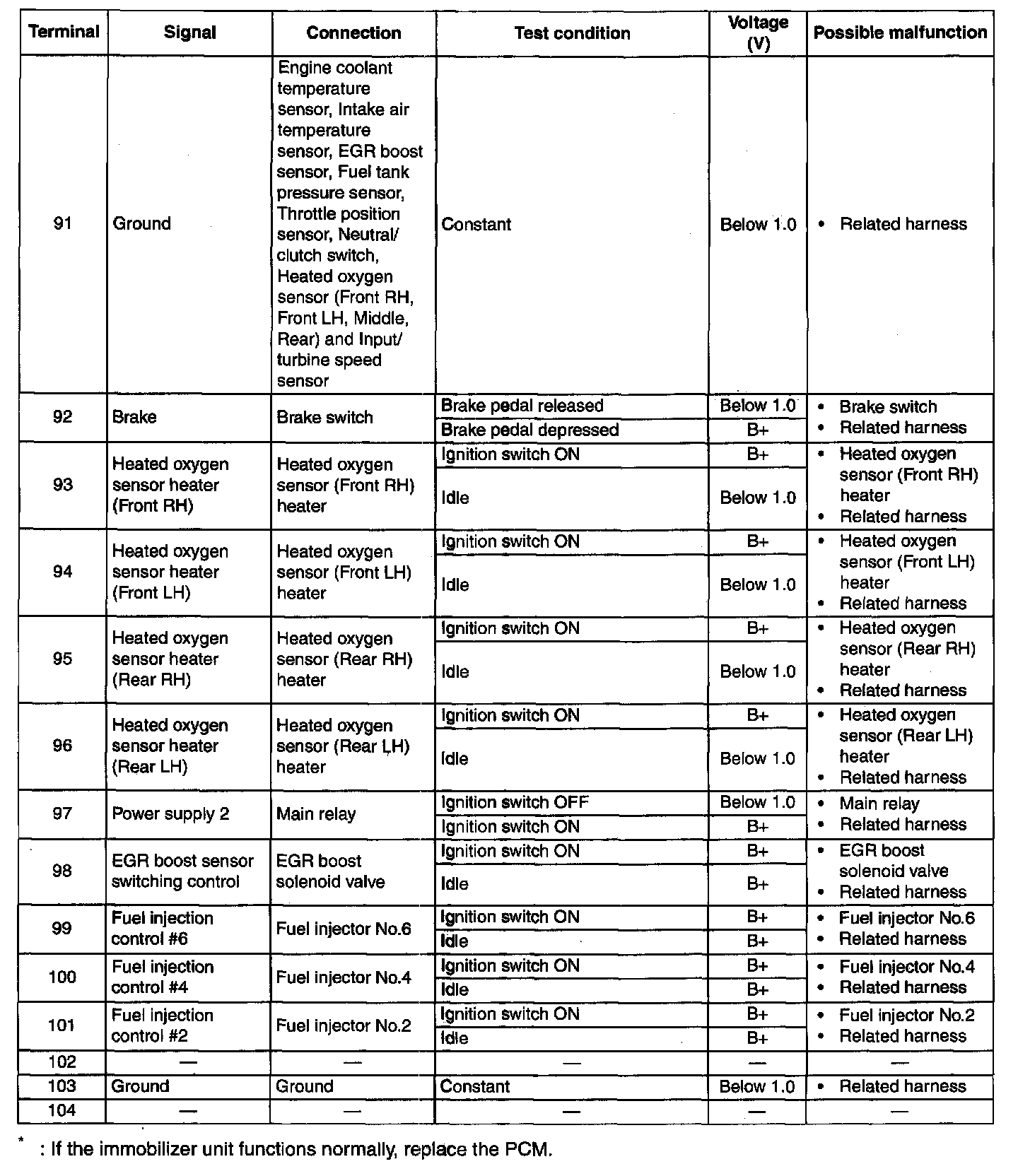

Terminals 91 - 104:
