Home >> Mazda >> 2002 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Description and Operation

Keyless Entry Module: Description and Operation

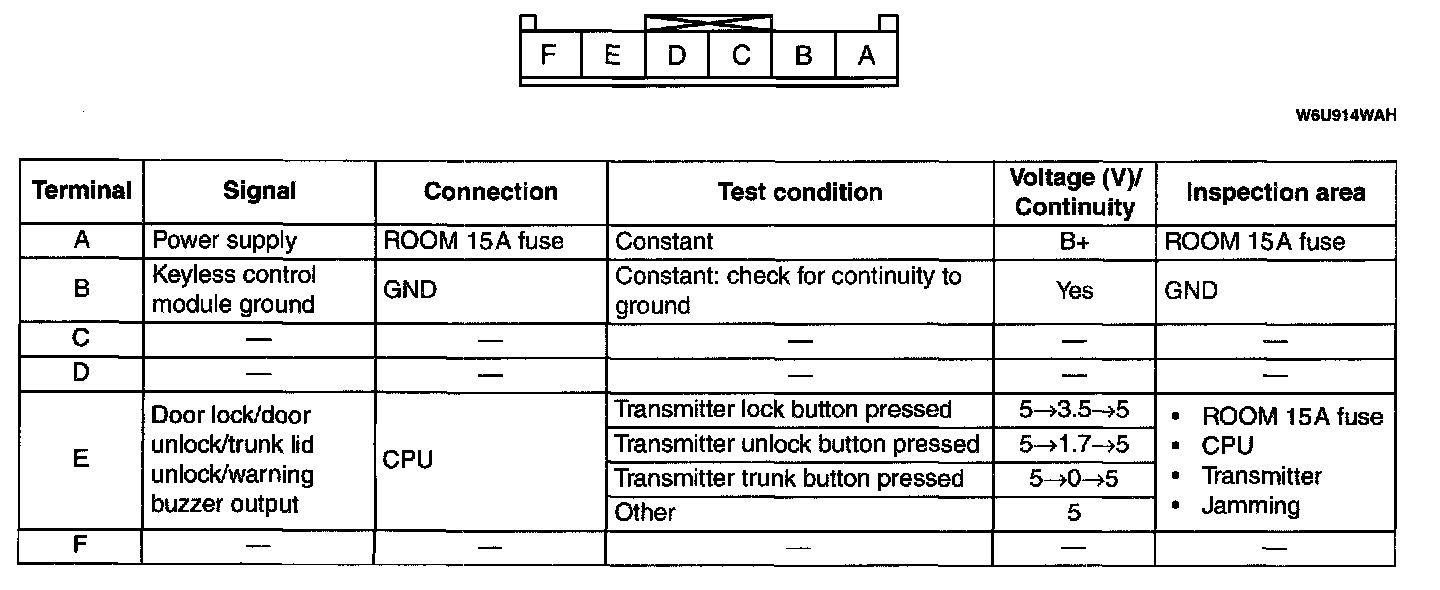

Keyless Control Module Terminal Voltage Table (Reference):
