Engine Control Module

Terminal Voltage Table (Reference) - Terminals (1 - 4):

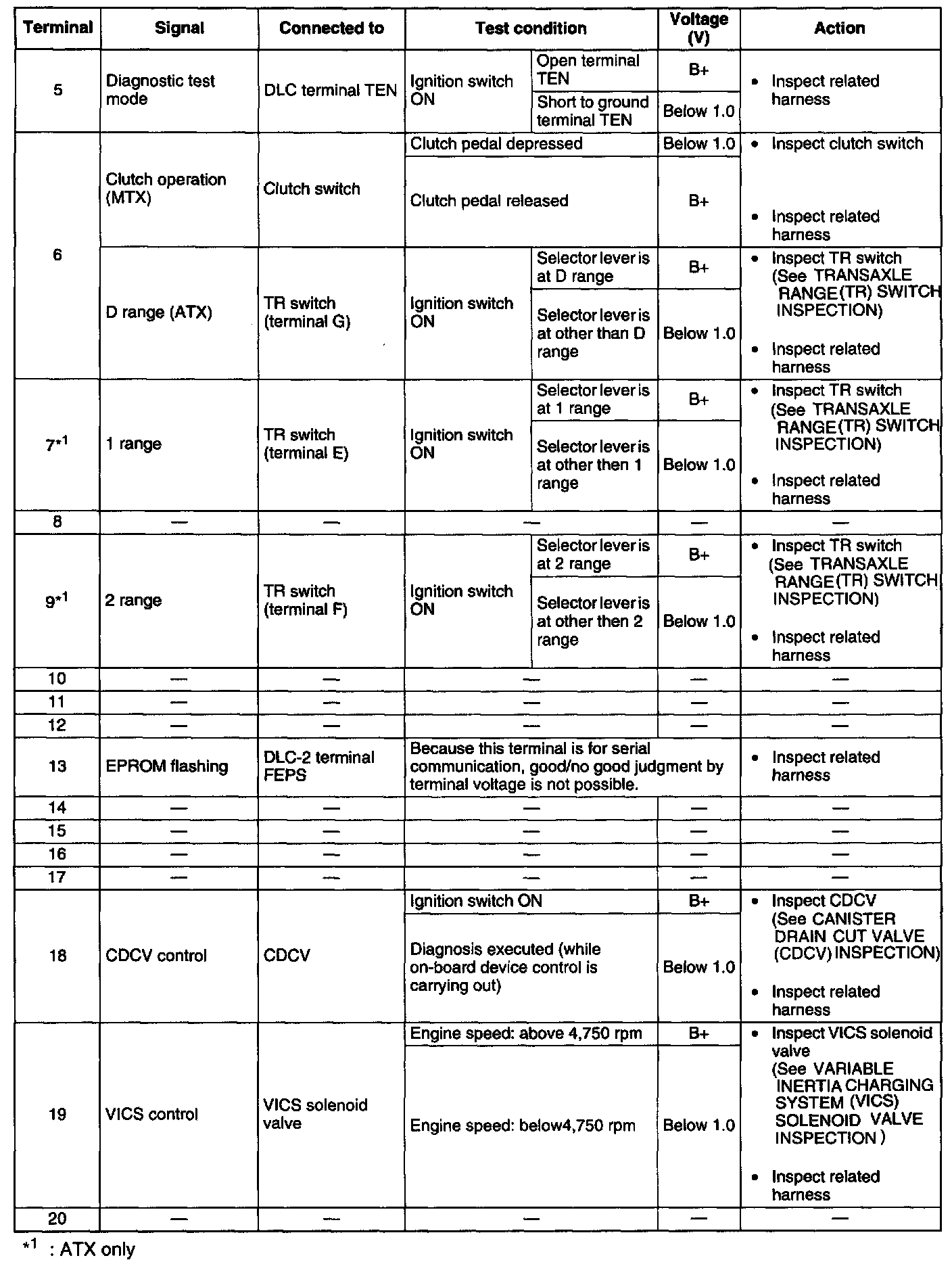

Terminal Voltage Table (Reference) - Terminals (5 - 20):

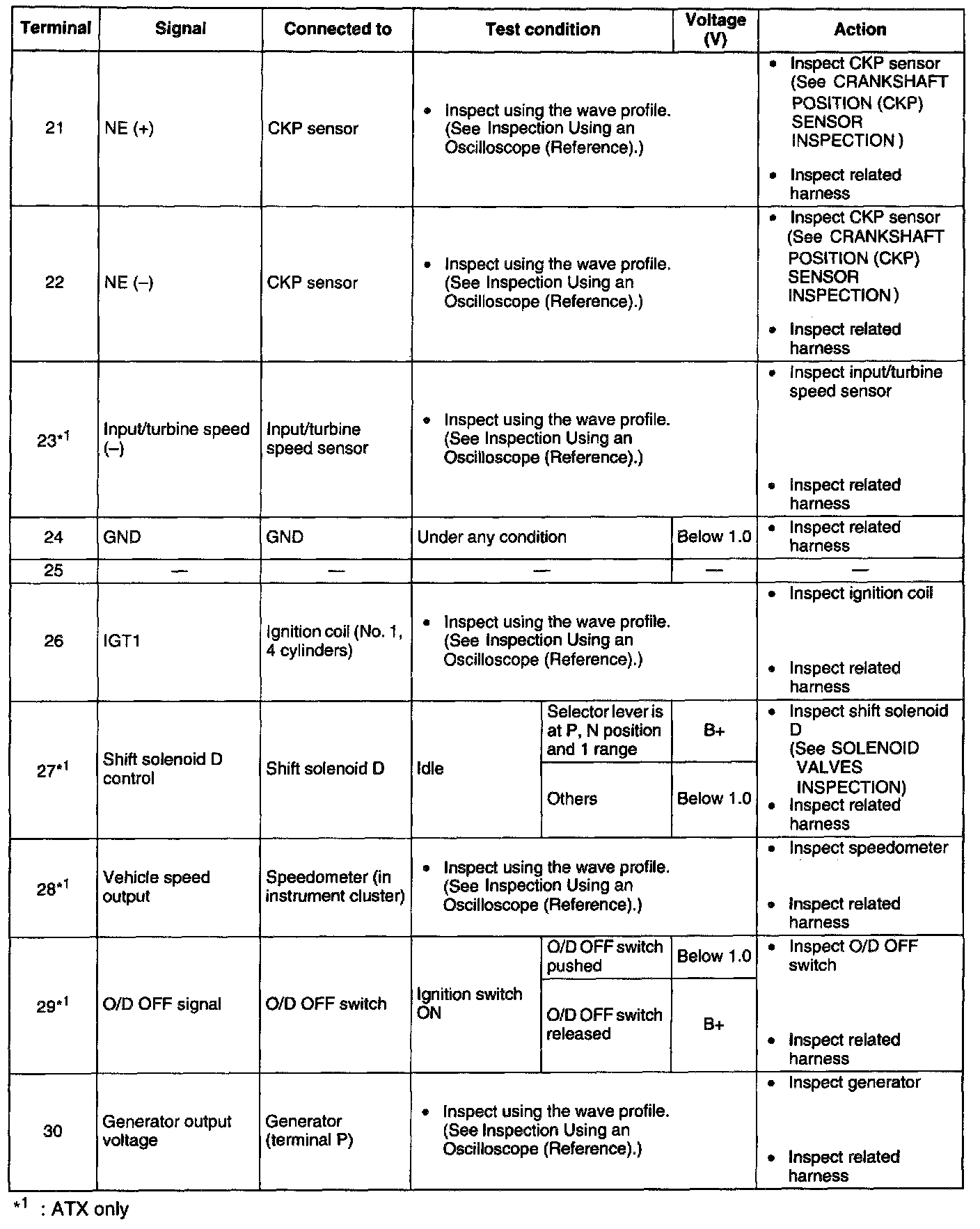

Terminal Voltage Table (Reference) - Terminals (21 - 30):

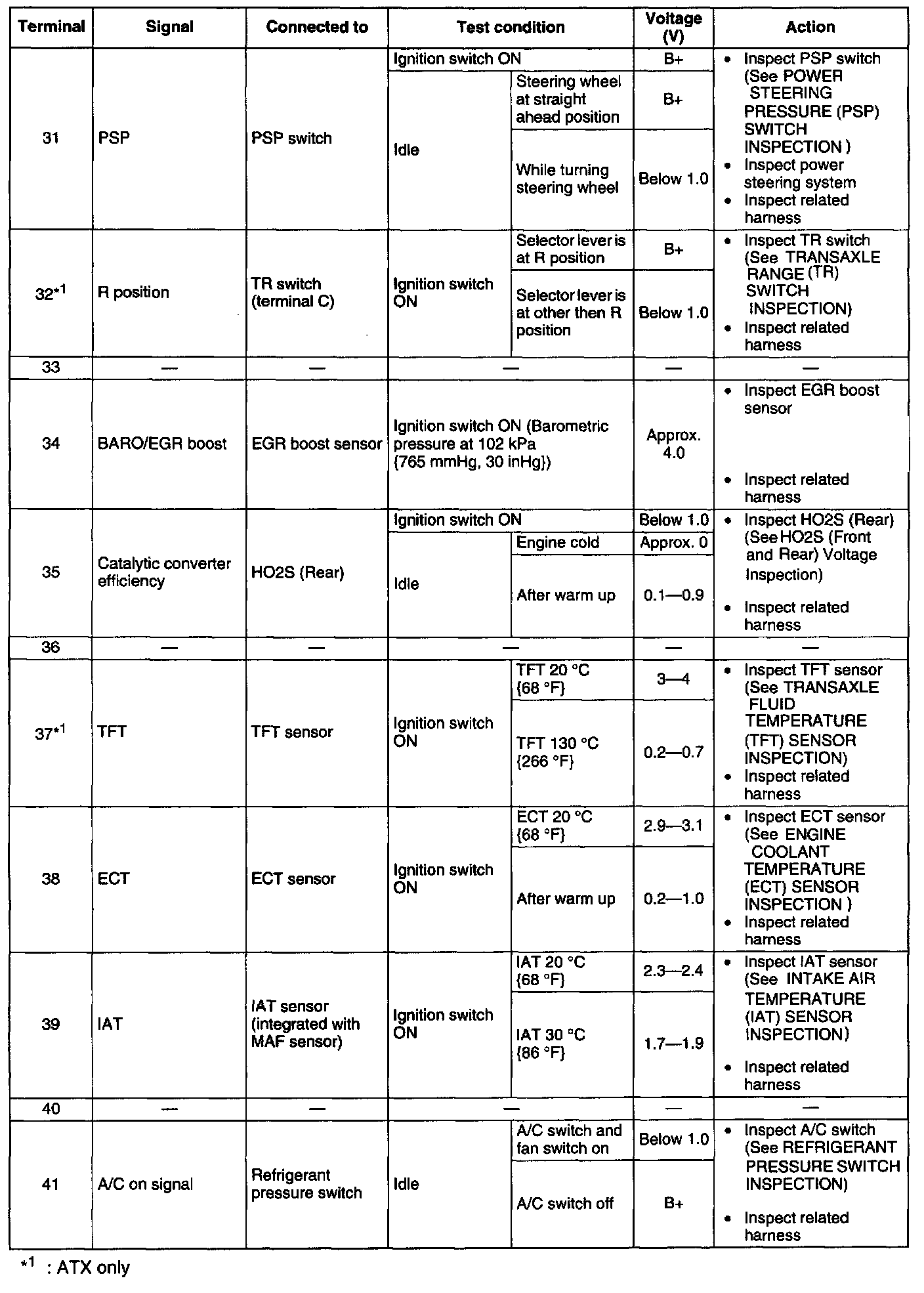

Terminal Voltage Table (Reference) - Terminals (31 - 41):

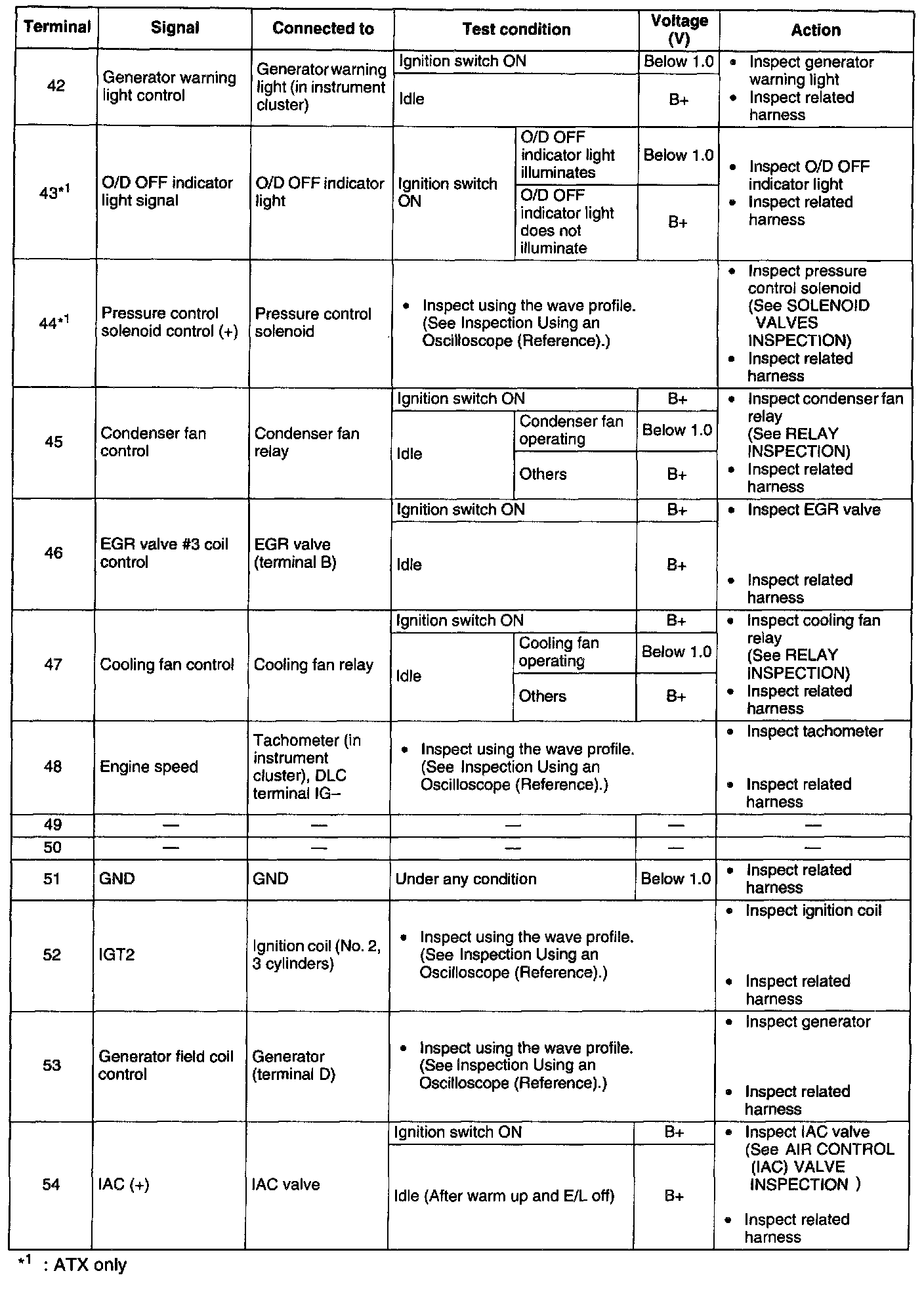

Terminal Voltage Table (Reference) - Terminals (42 - 54):

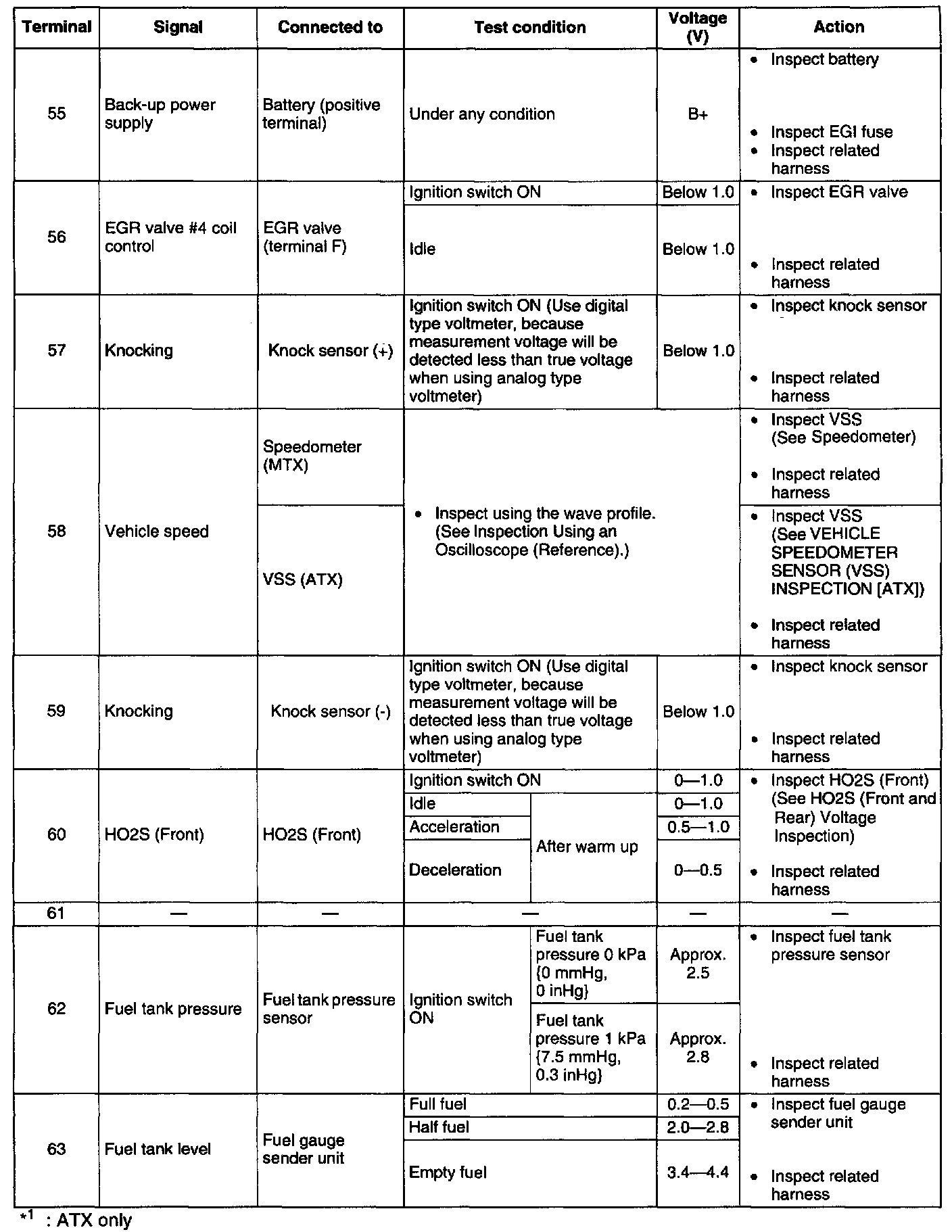

Terminal Voltage Table (Reference) - Terminals (55 - 63):

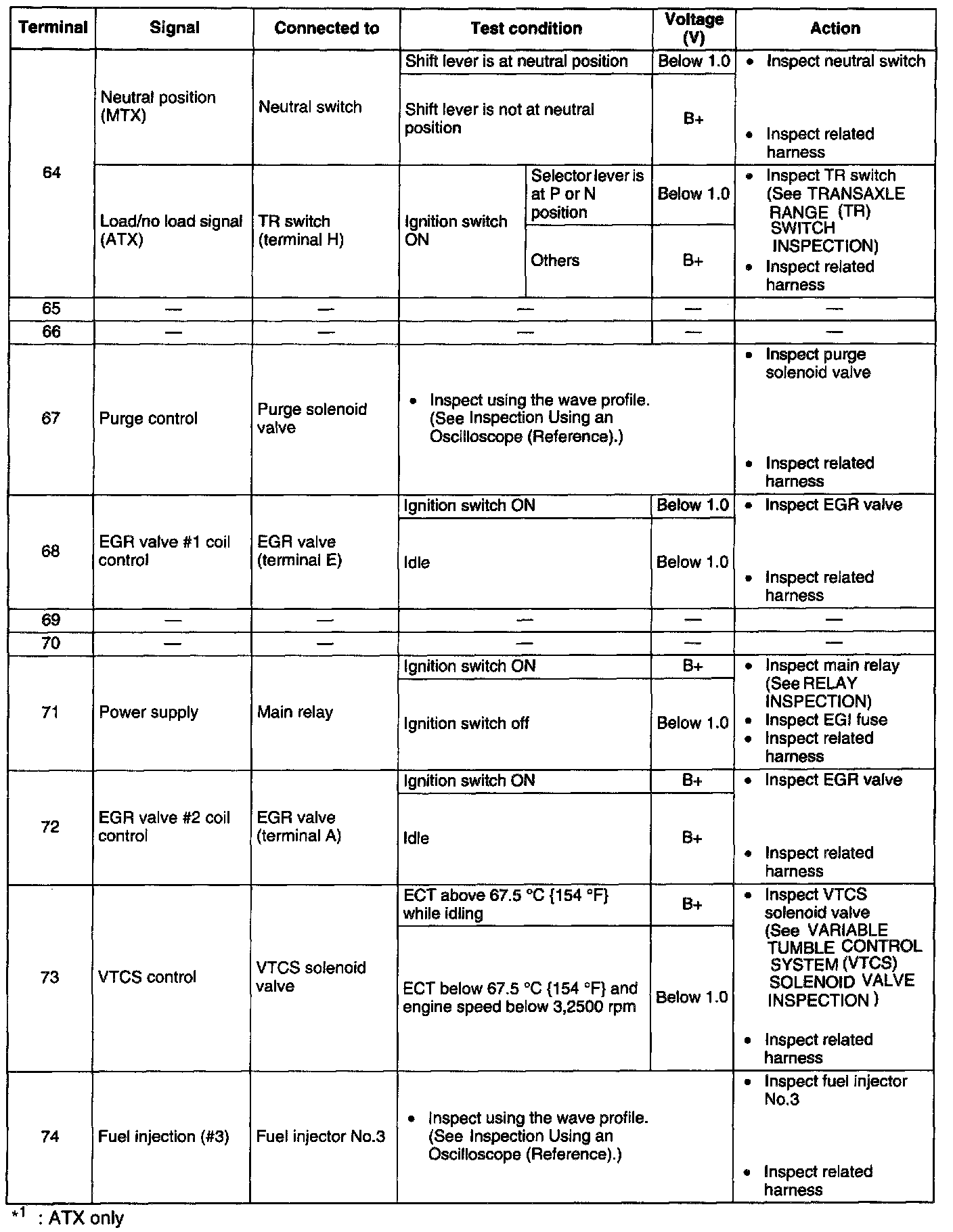

Terminal Voltage Table (Reference) - Terminals (64 - 74):

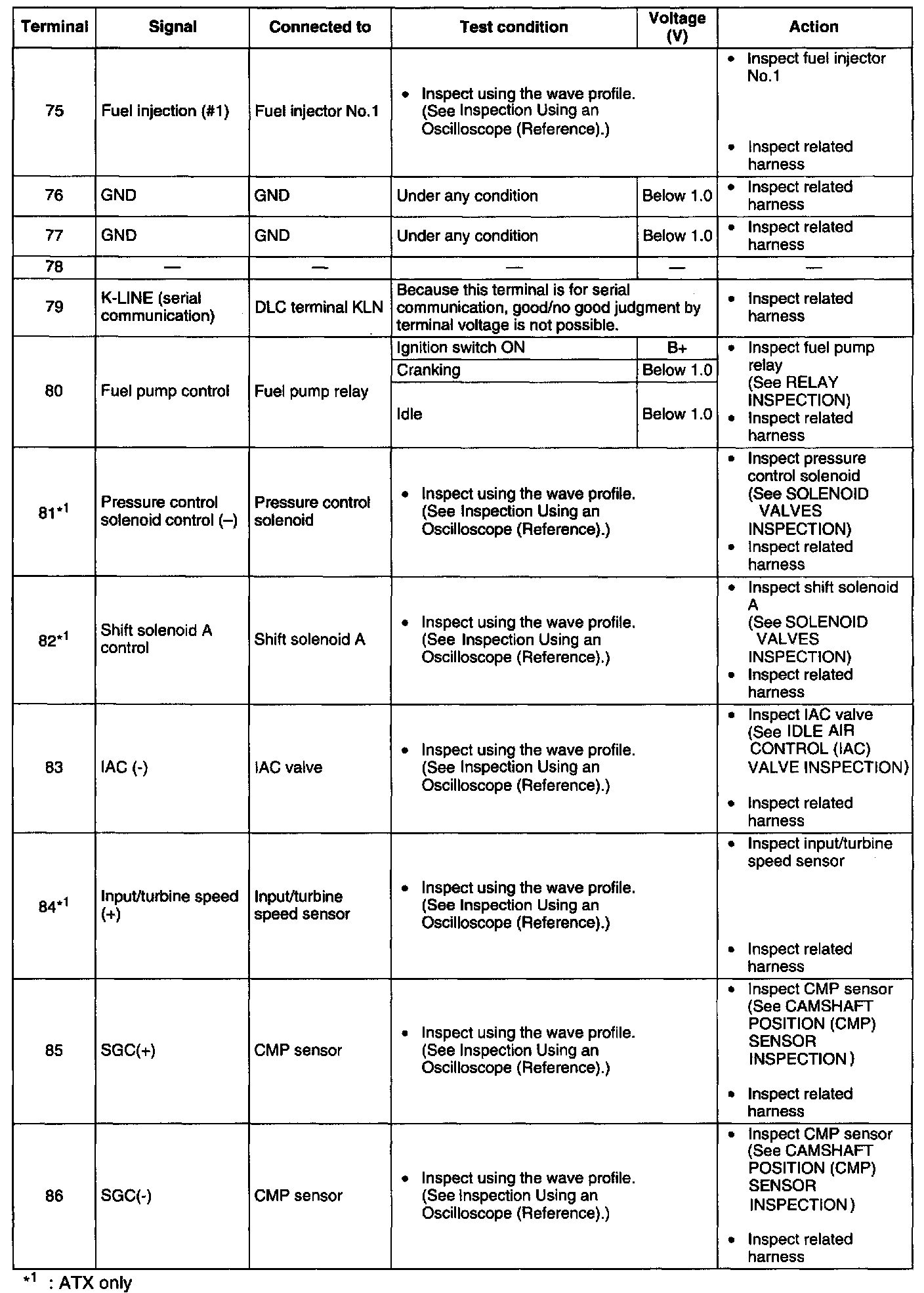

Terminal Voltage Table (Reference) - Terminals (75 - 86):

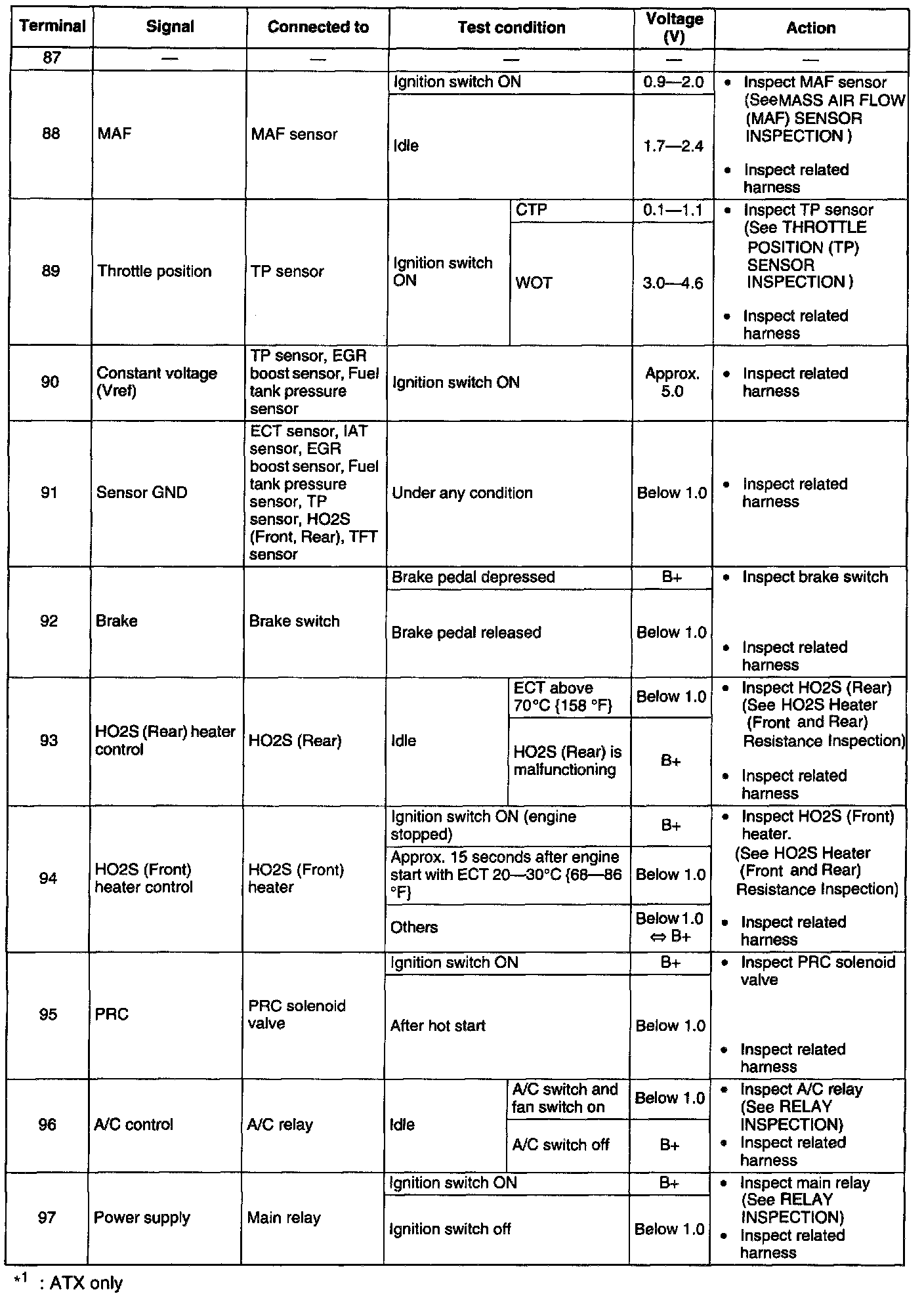

Terminal Voltage Table (Reference) - Terminals (87 - 97):

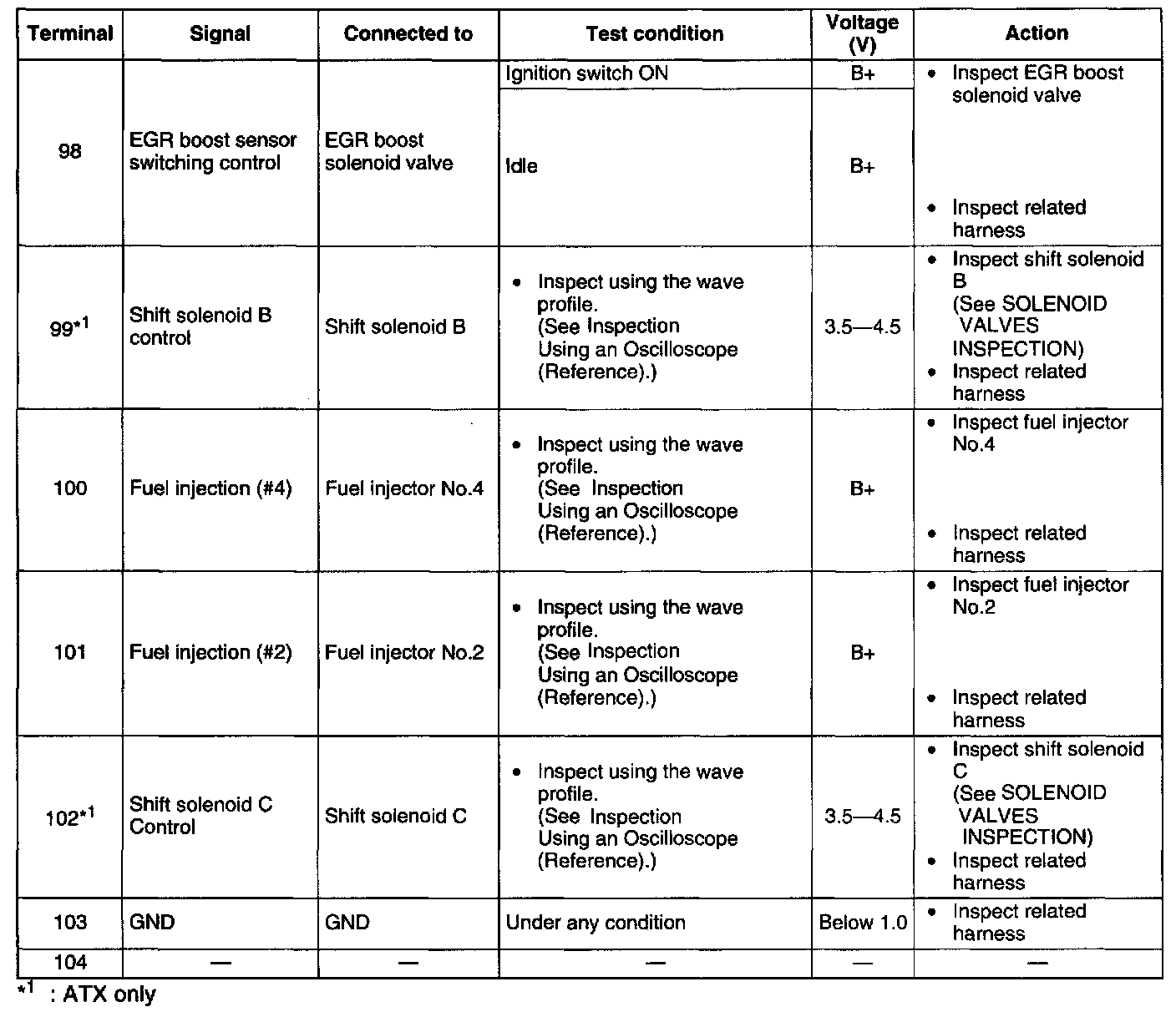

Terminal Voltage Table (Reference) - Terminals (98 - 104):
