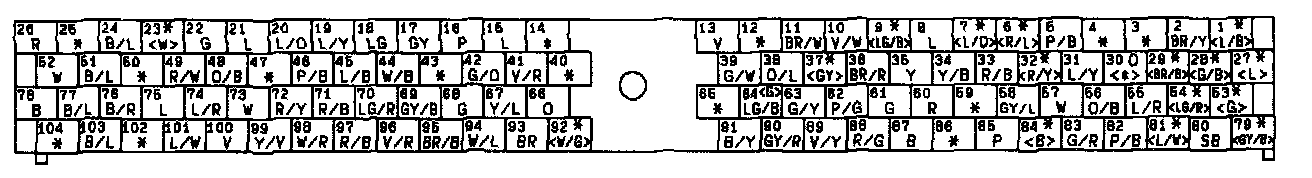

Engine Control Module

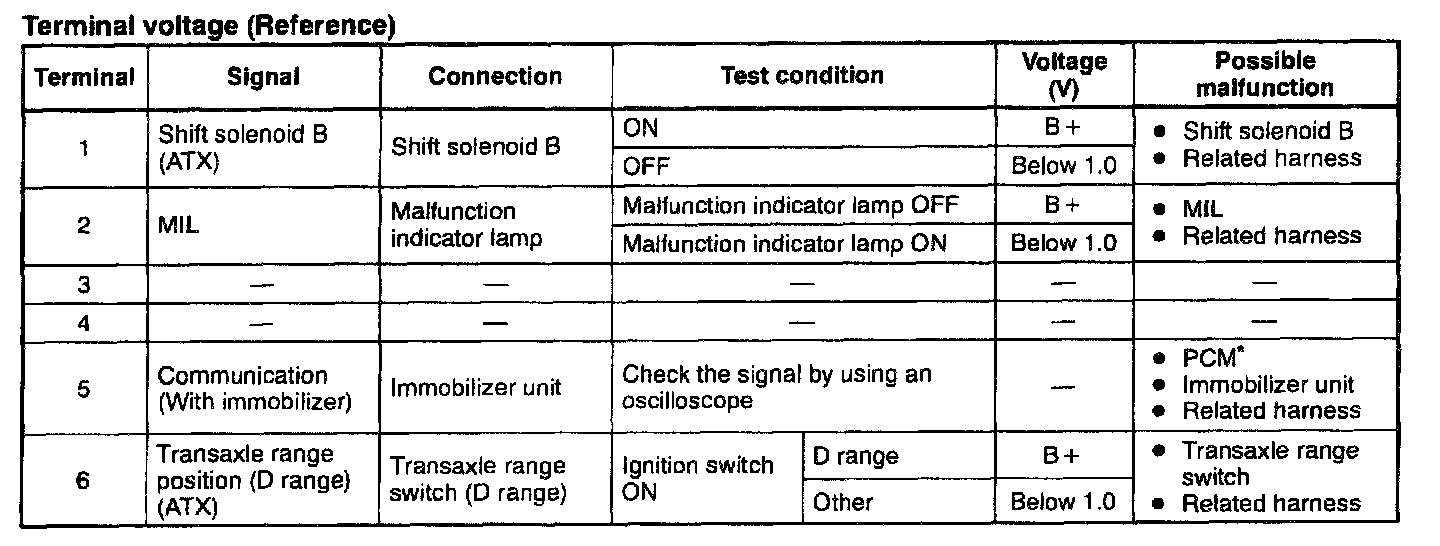

Terminal 1 - 6:

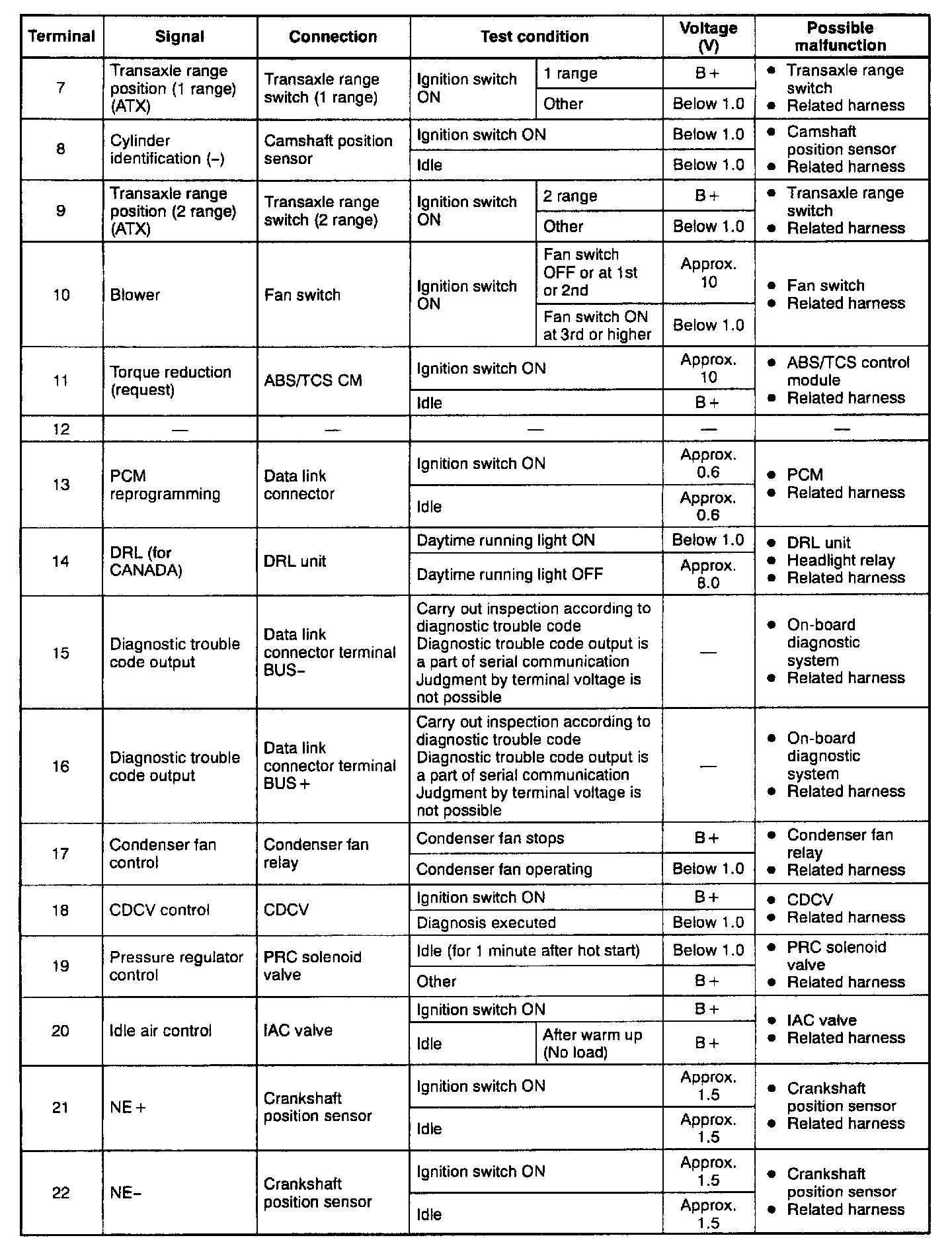

Terminal 7 - 22:

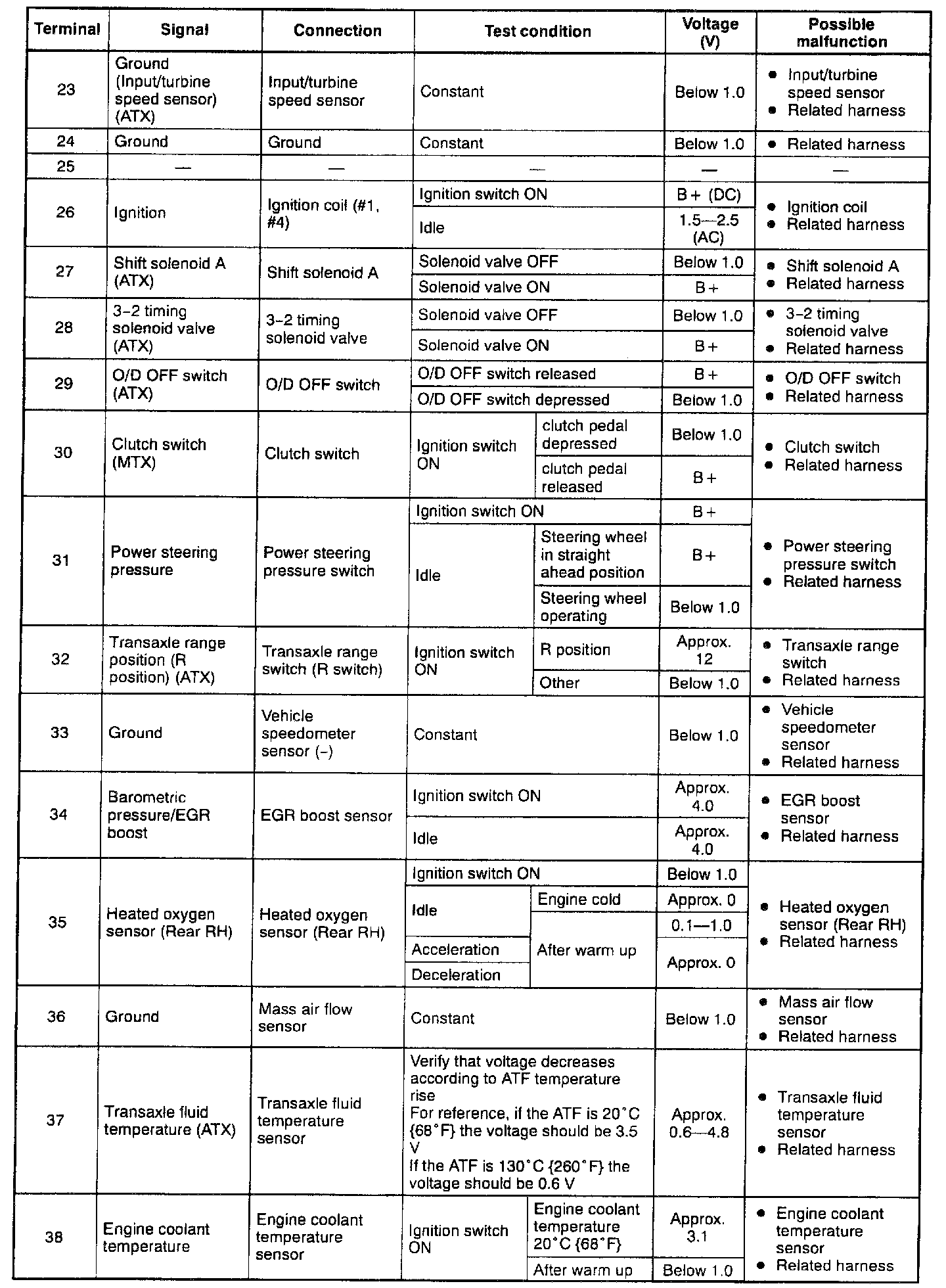

Terminal 23 - 38:

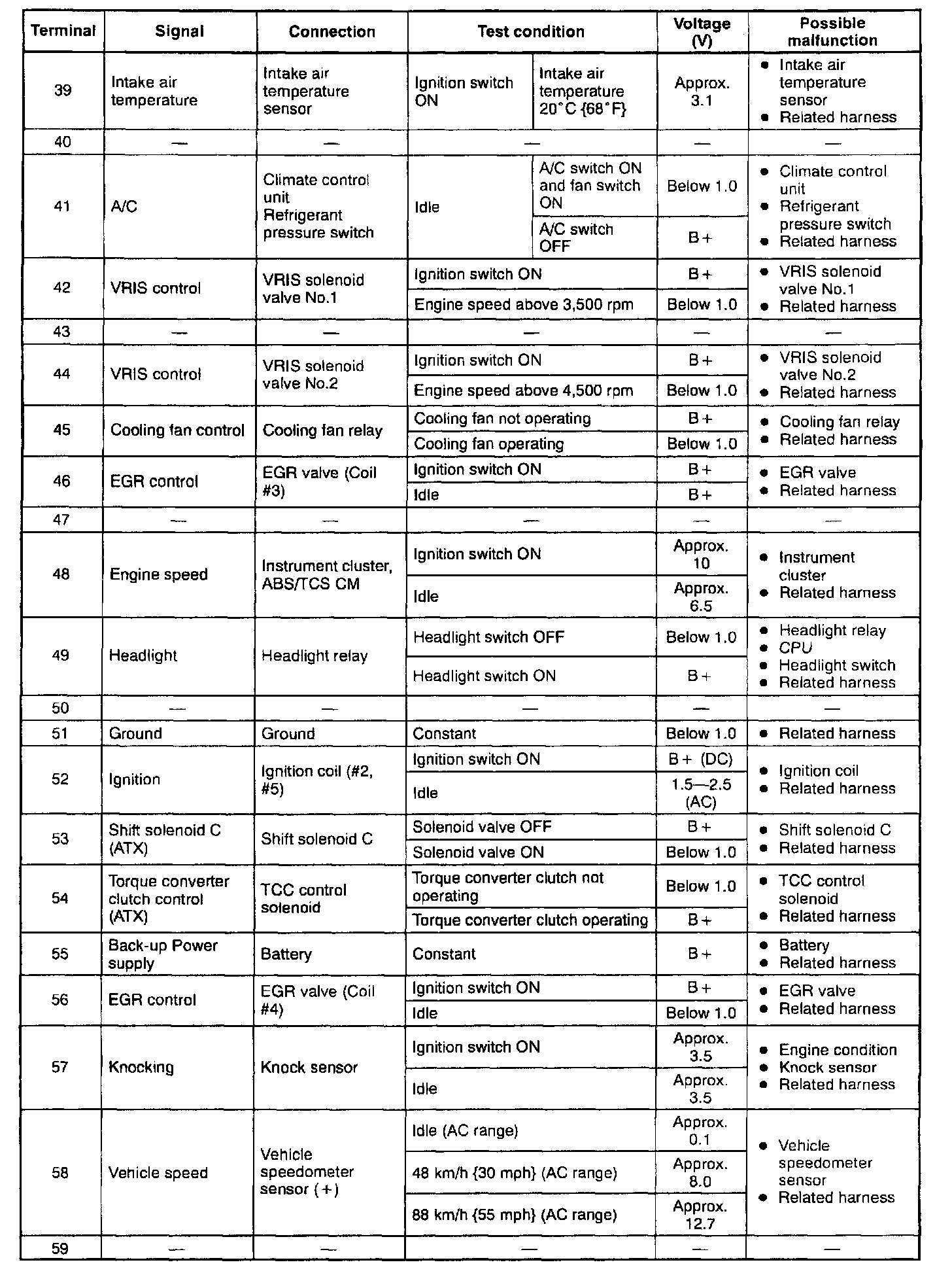

Terminal 39 - 59:

Terminal 60 - 73:

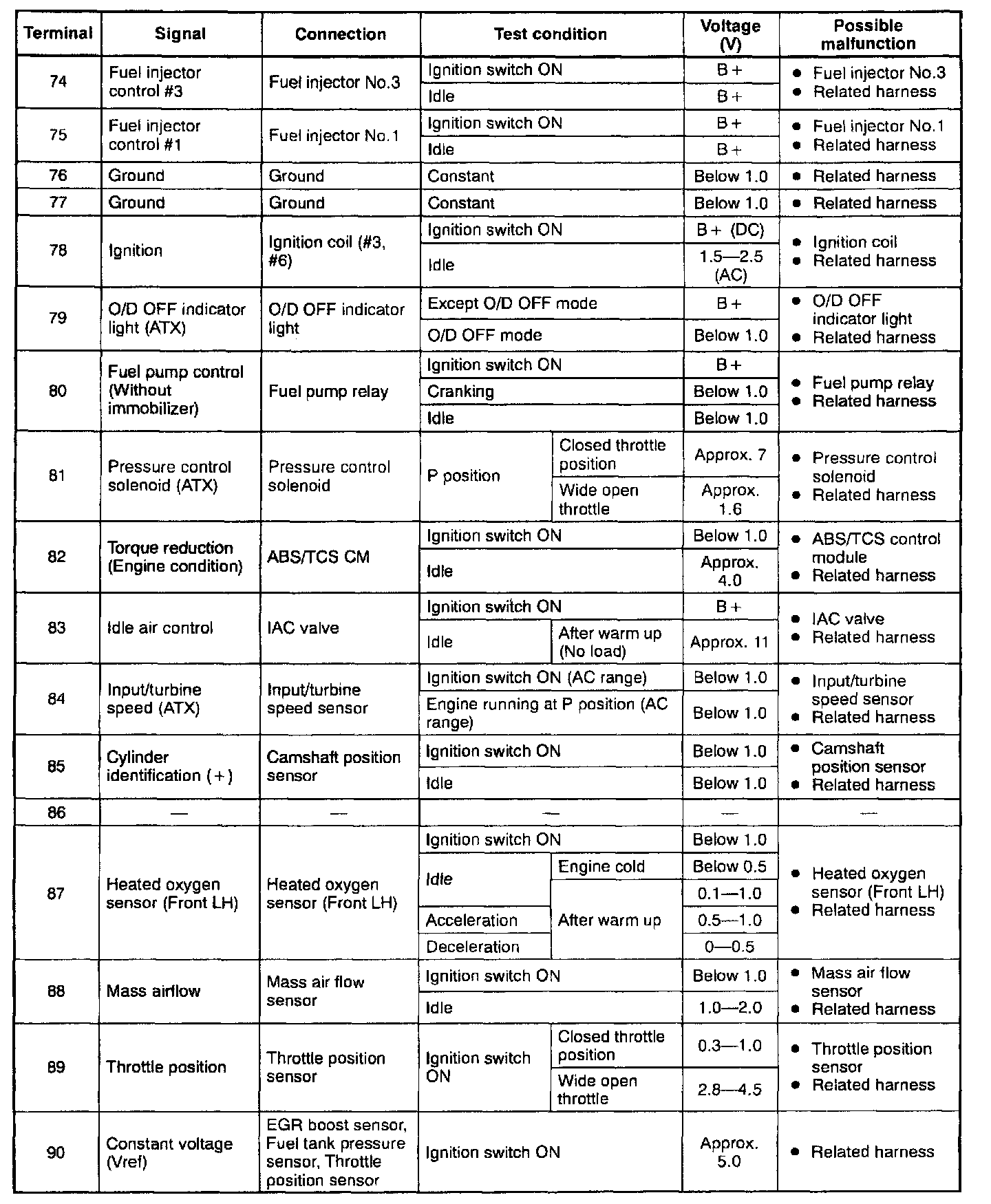

Terminal 74 - 90:

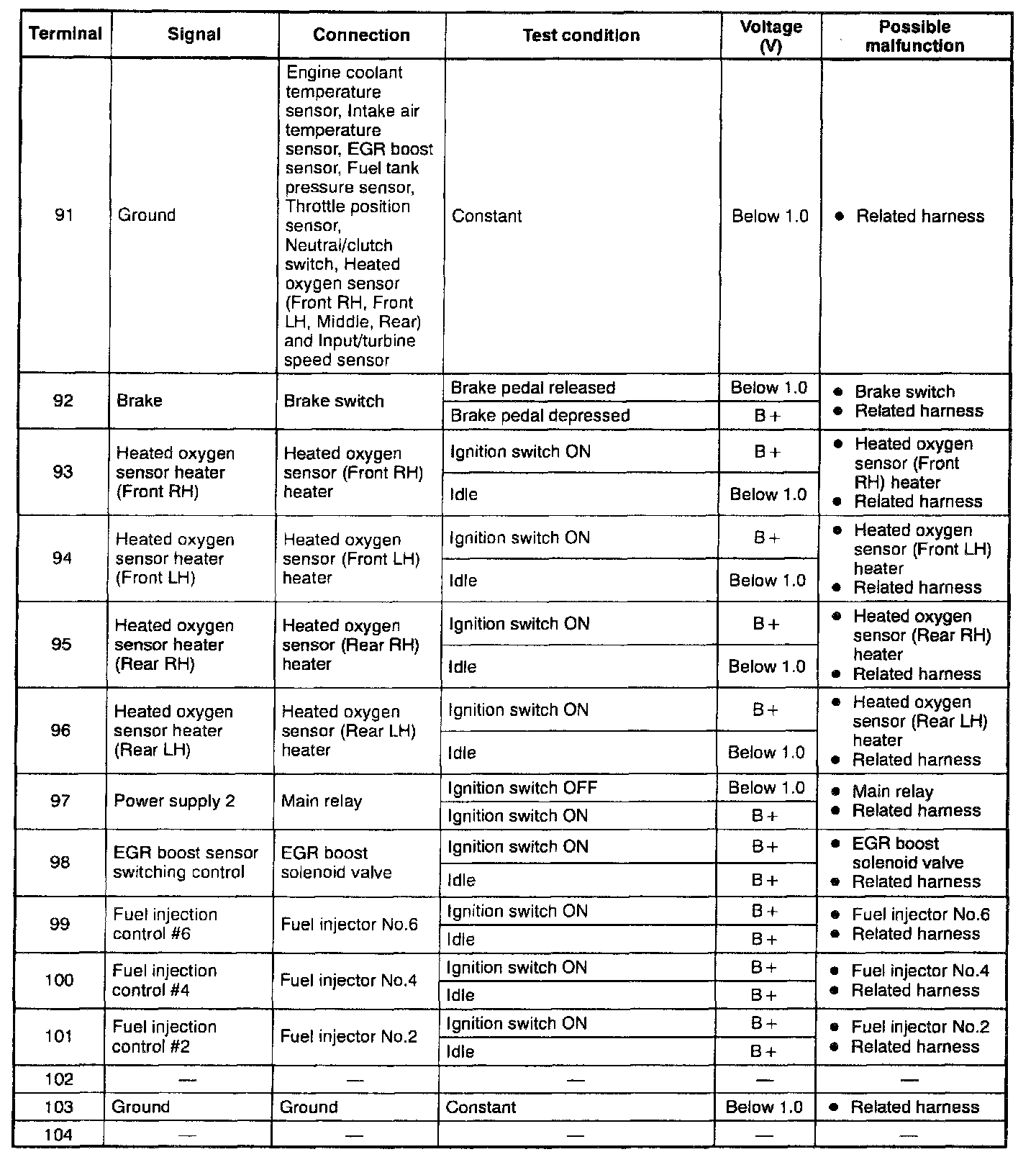

Terminal 91 - 104:

*: If the immobilizer unit functions normally, replace the PCM.
