Keyless Entry Transmitter: Service and Repair

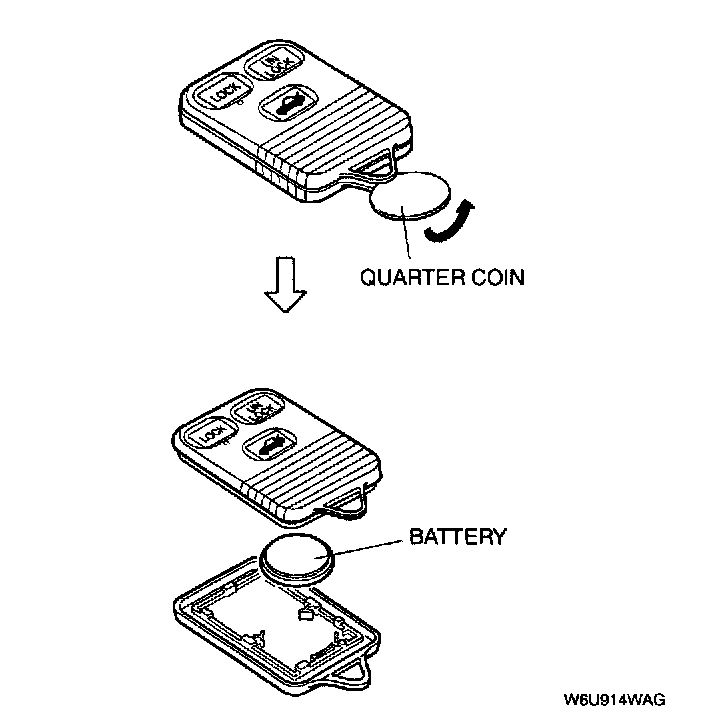

TRANSMITTER DISASSEMBLY/ASSEMBLY

1. Remove the cover by using a quarter coin.




2. Remove the battery.

Battery specification Lithium CR 2032 x 1

3. Assemble in the reverse order of disassembly.

NOTE: The battery will last about 2 years when used 10 times a day.
