Control Module Pinout Values

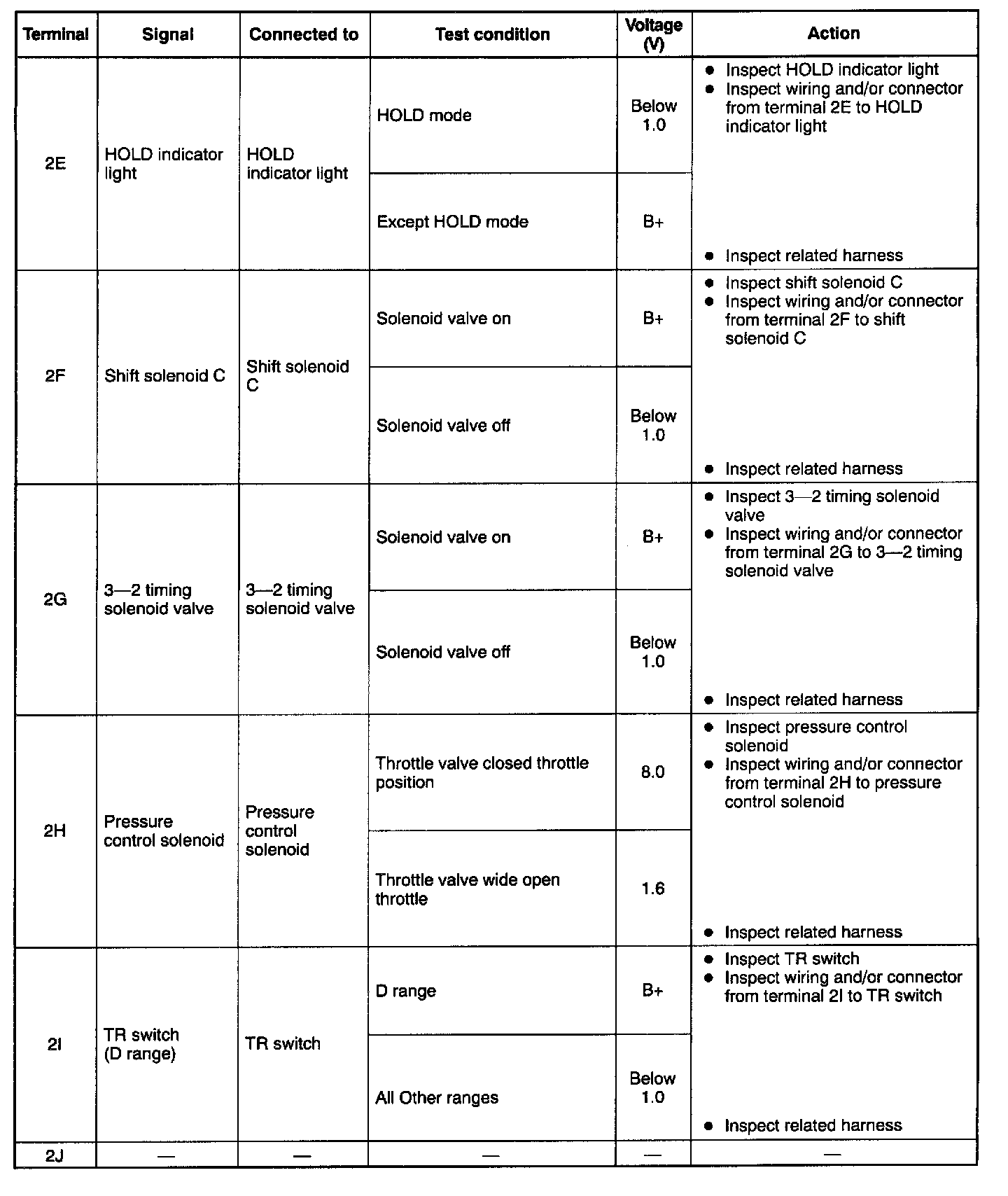

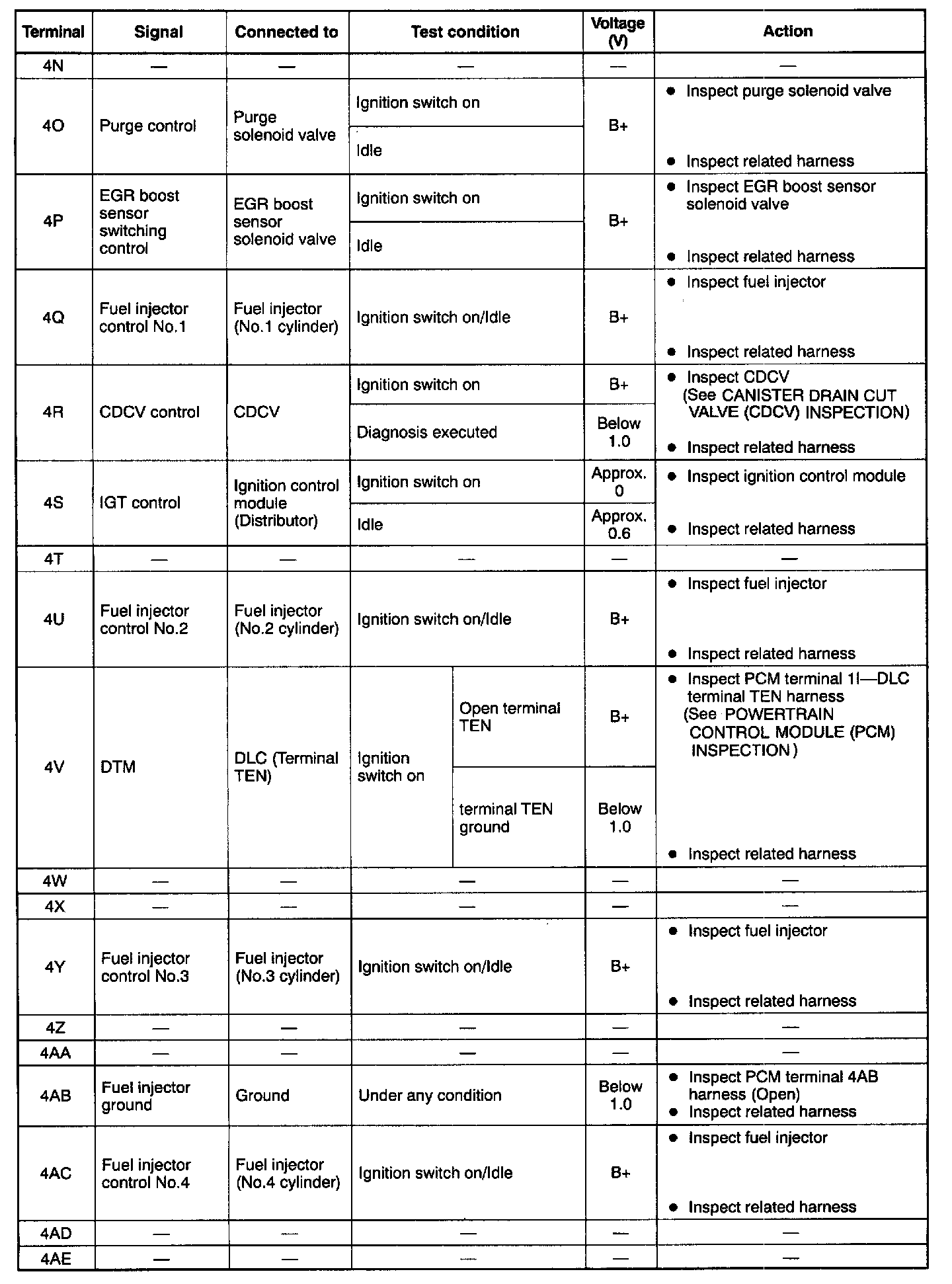

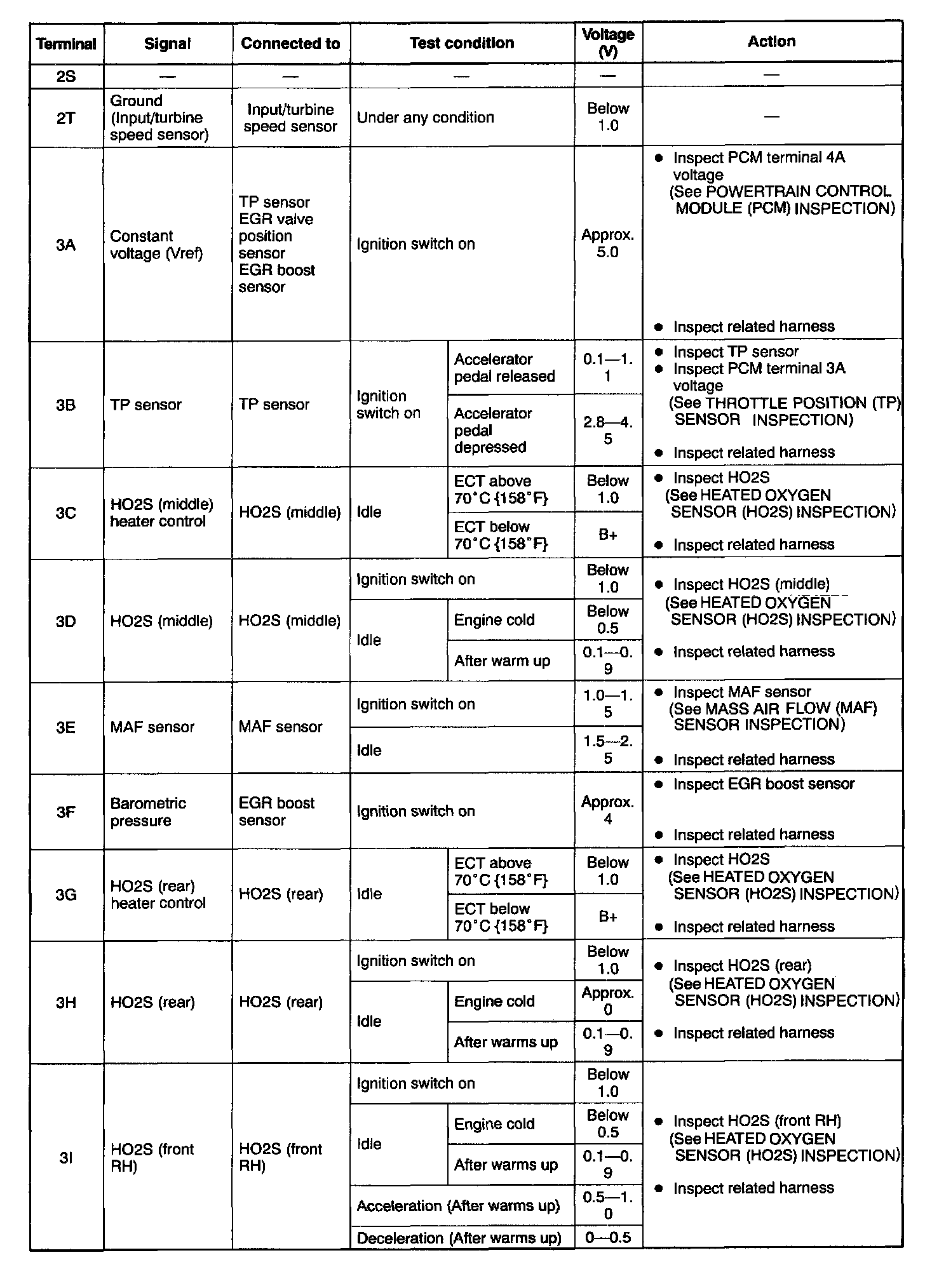

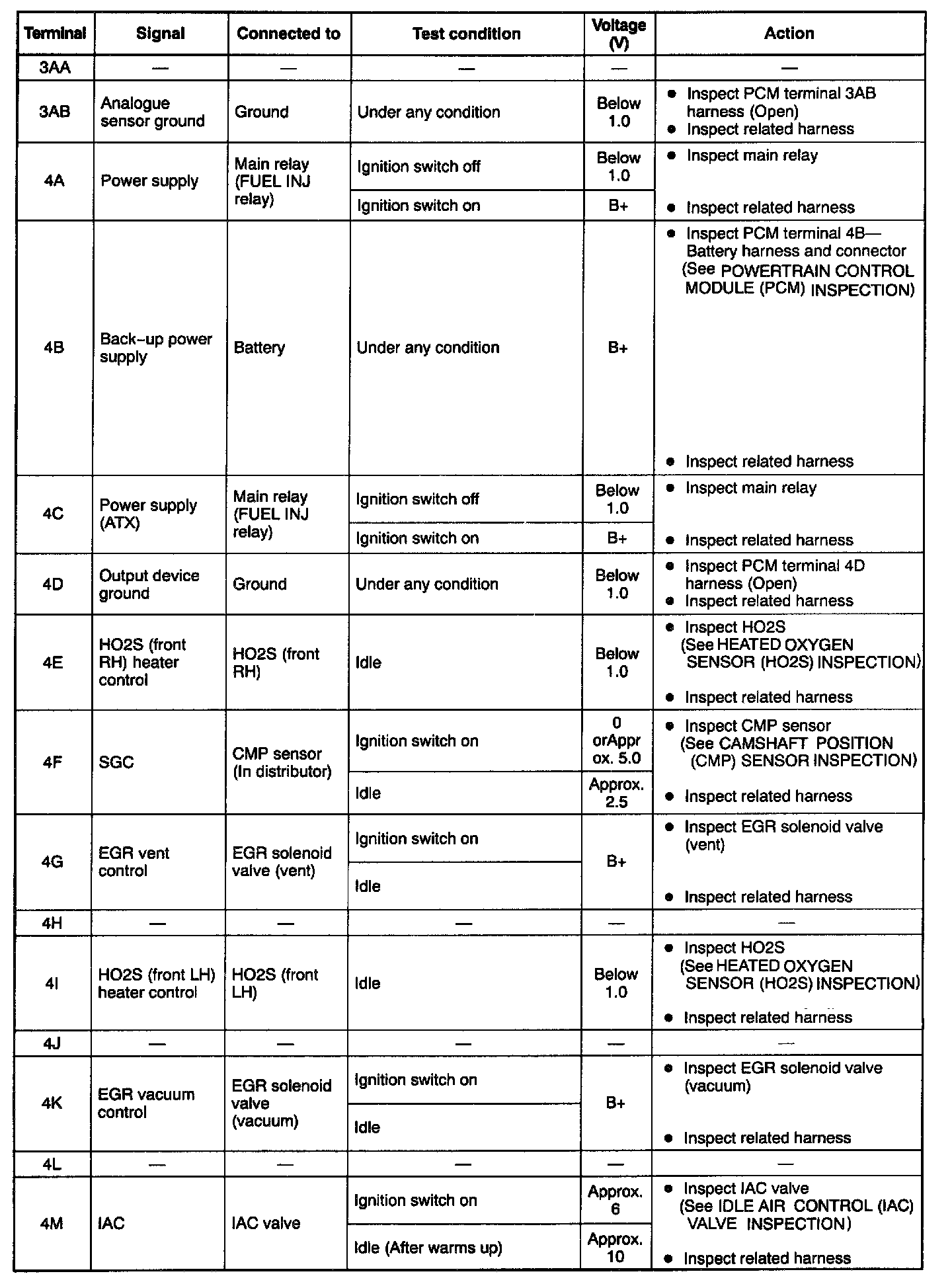

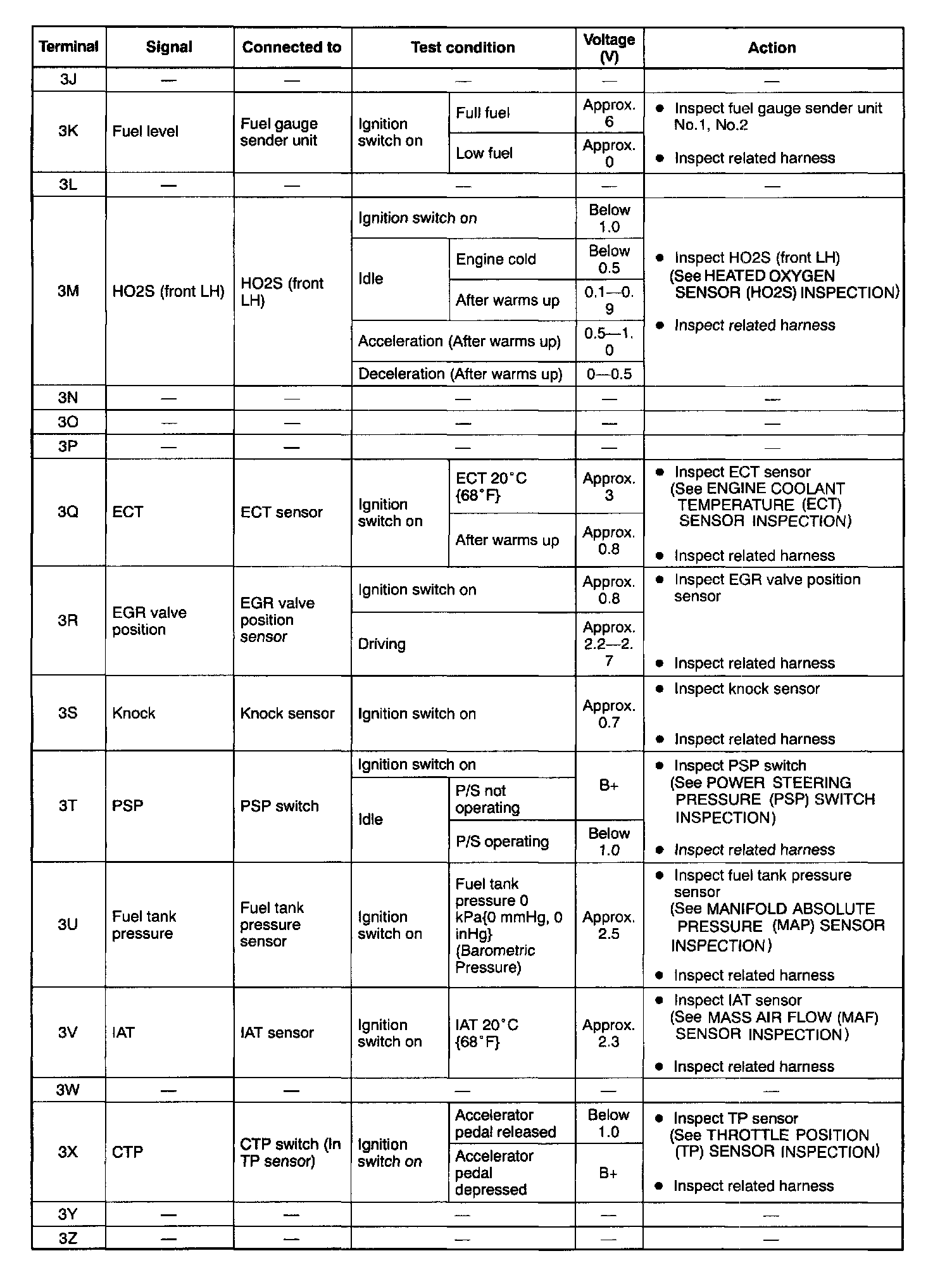

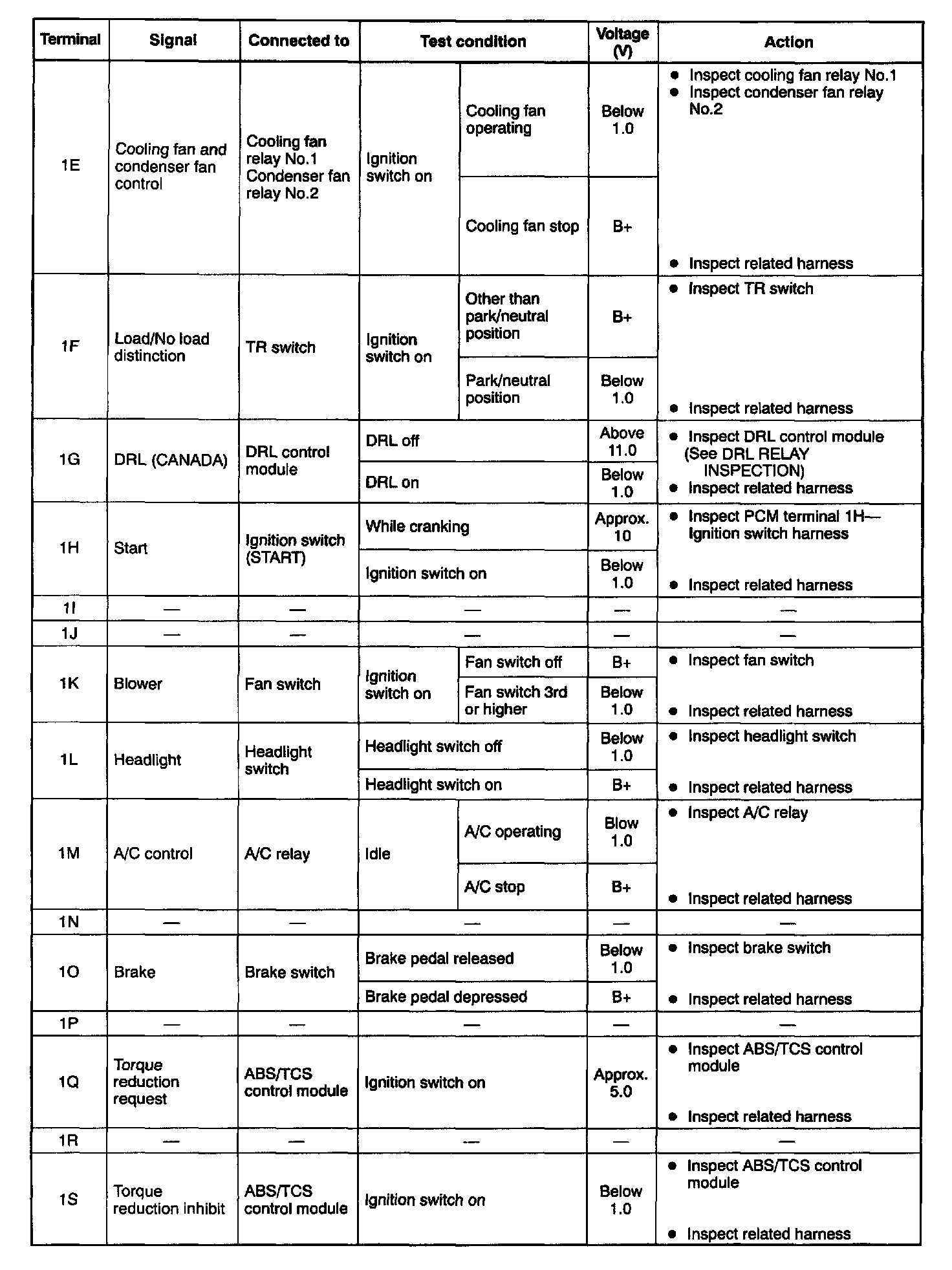

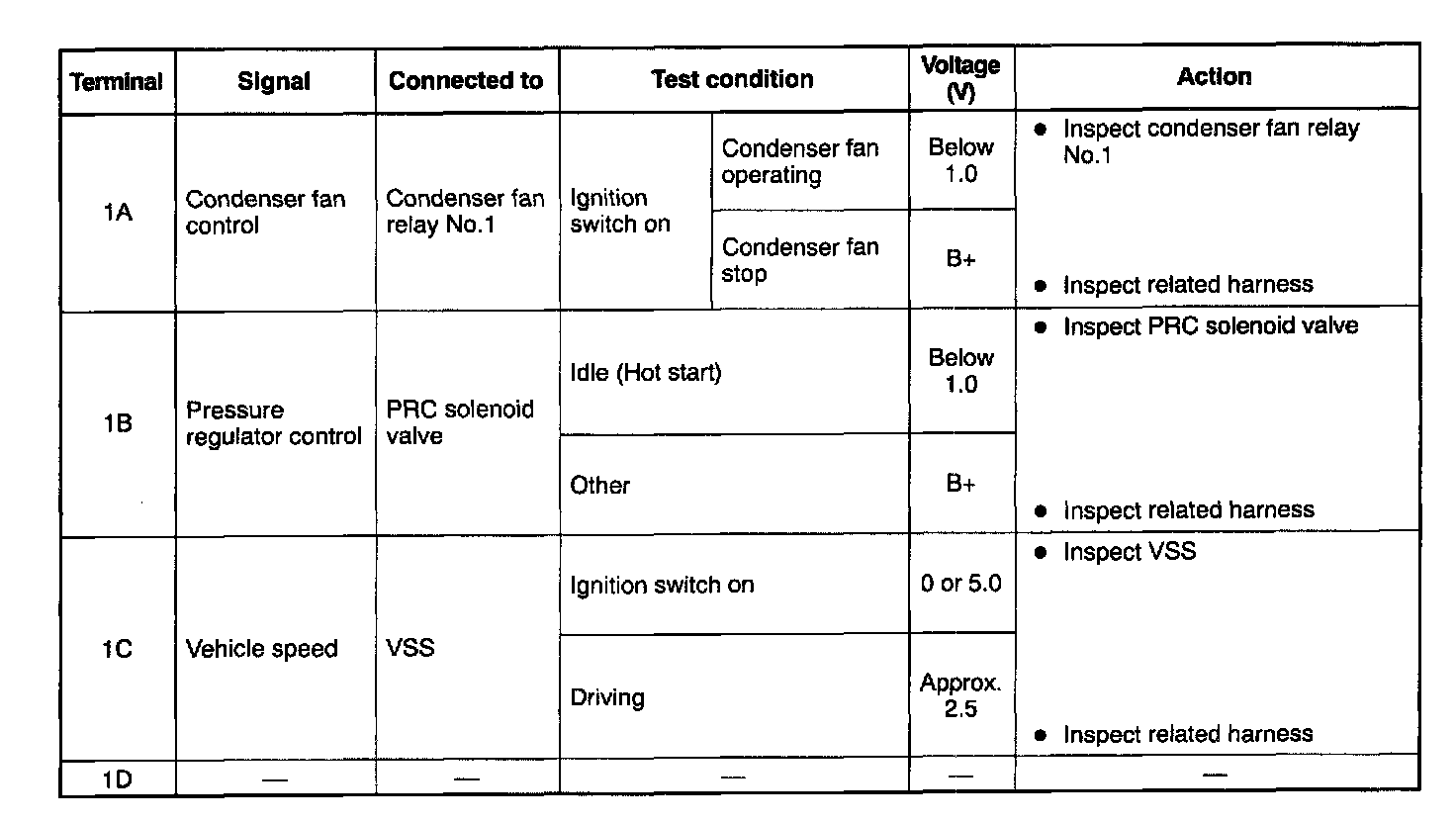

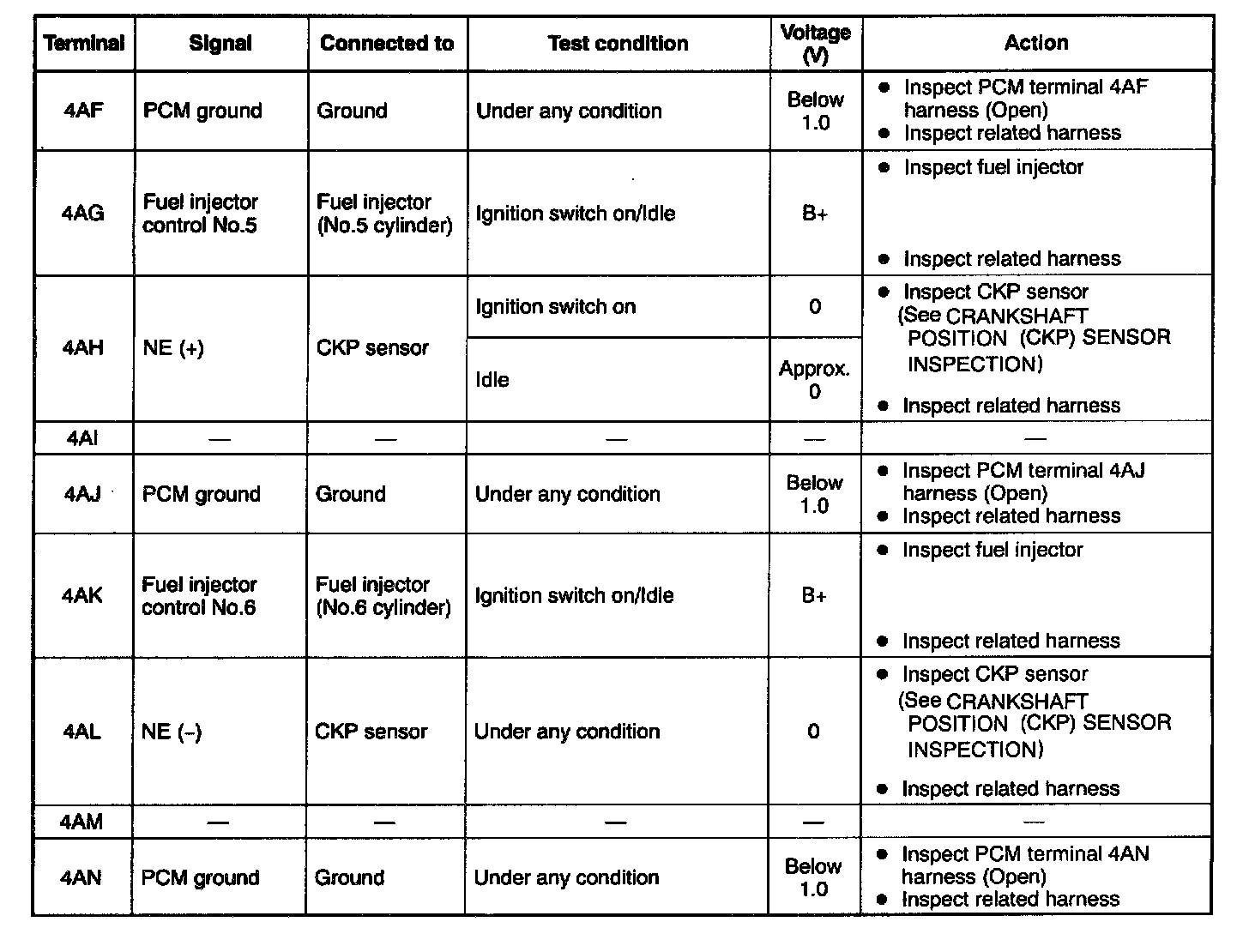

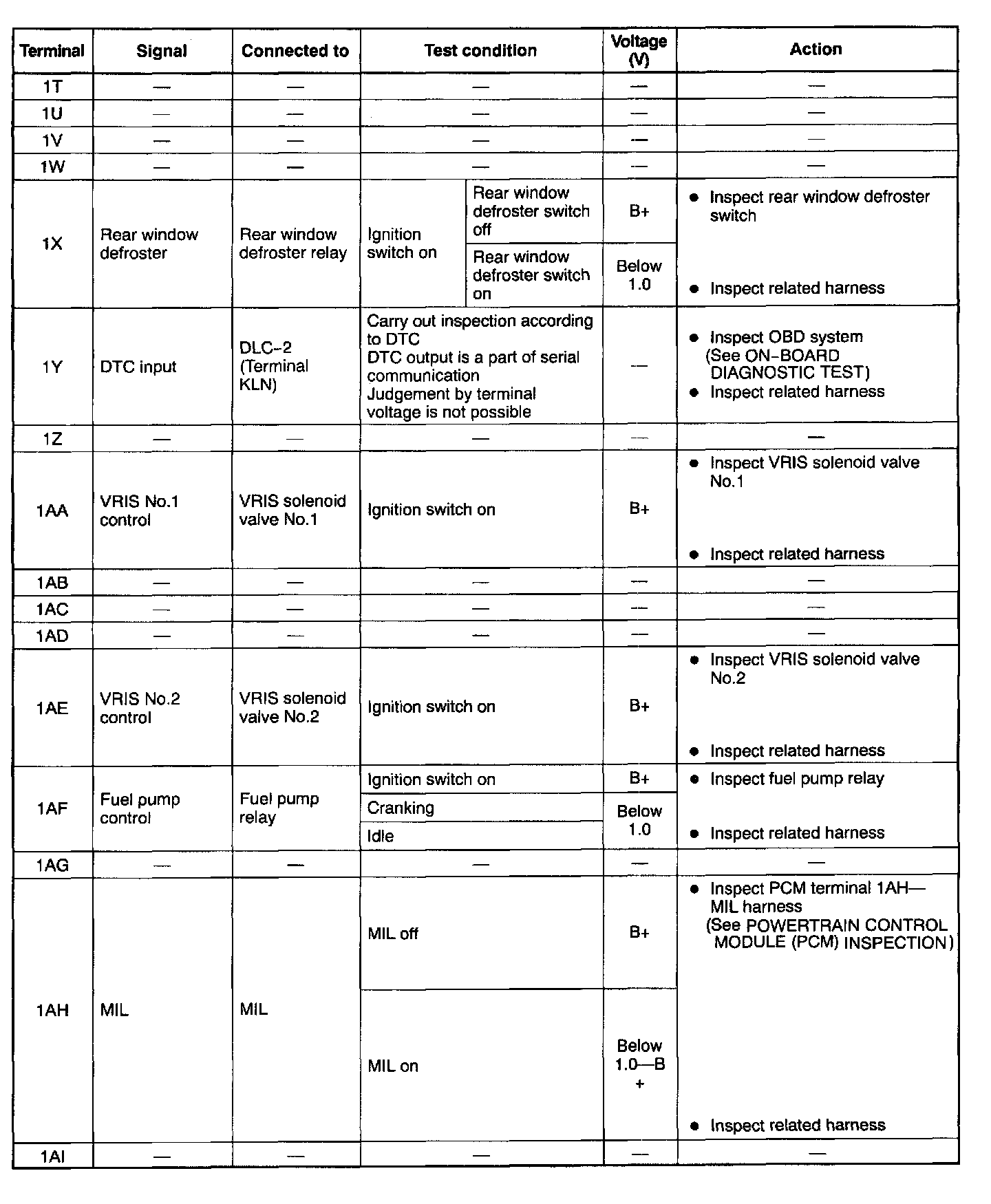

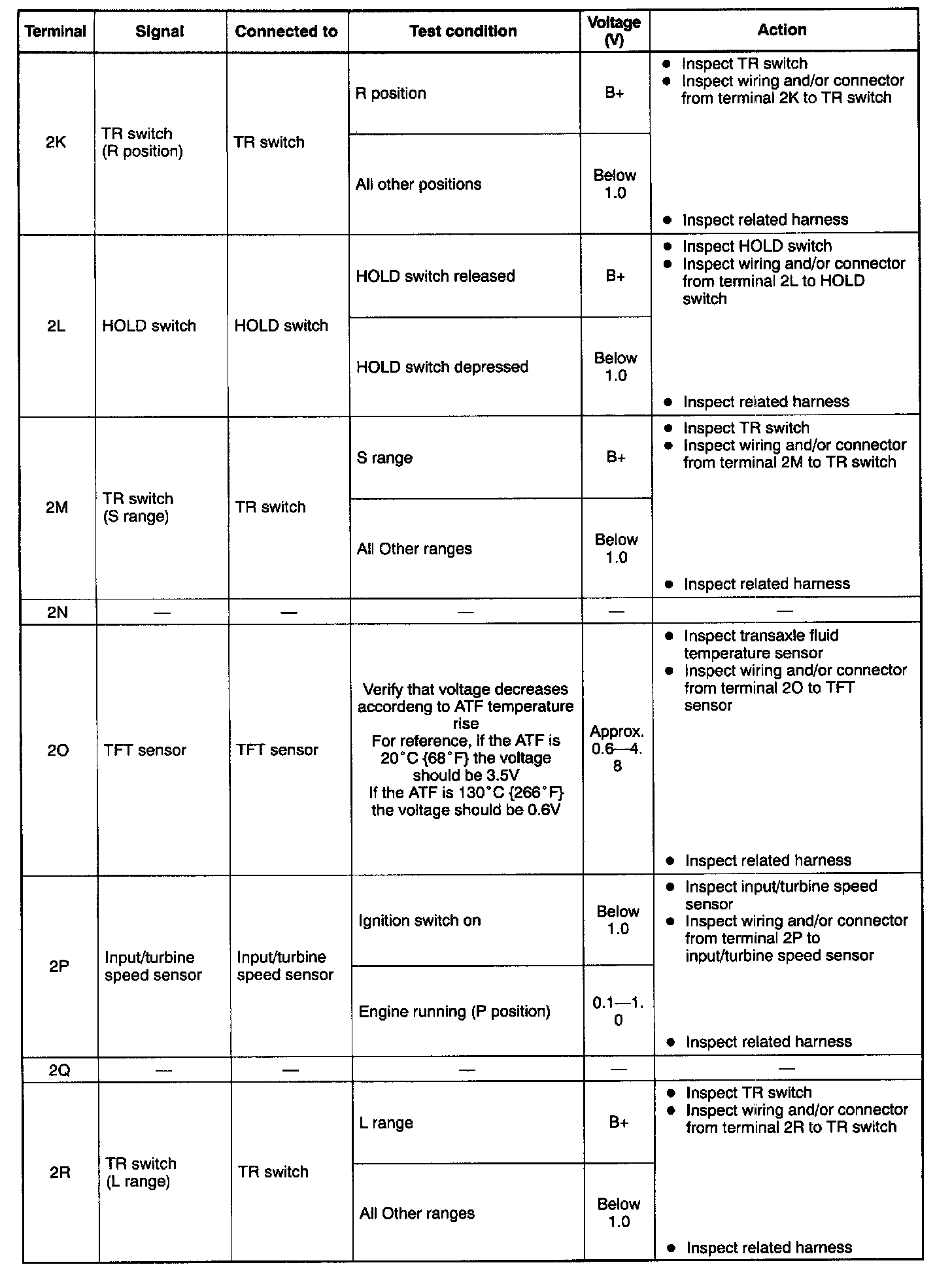

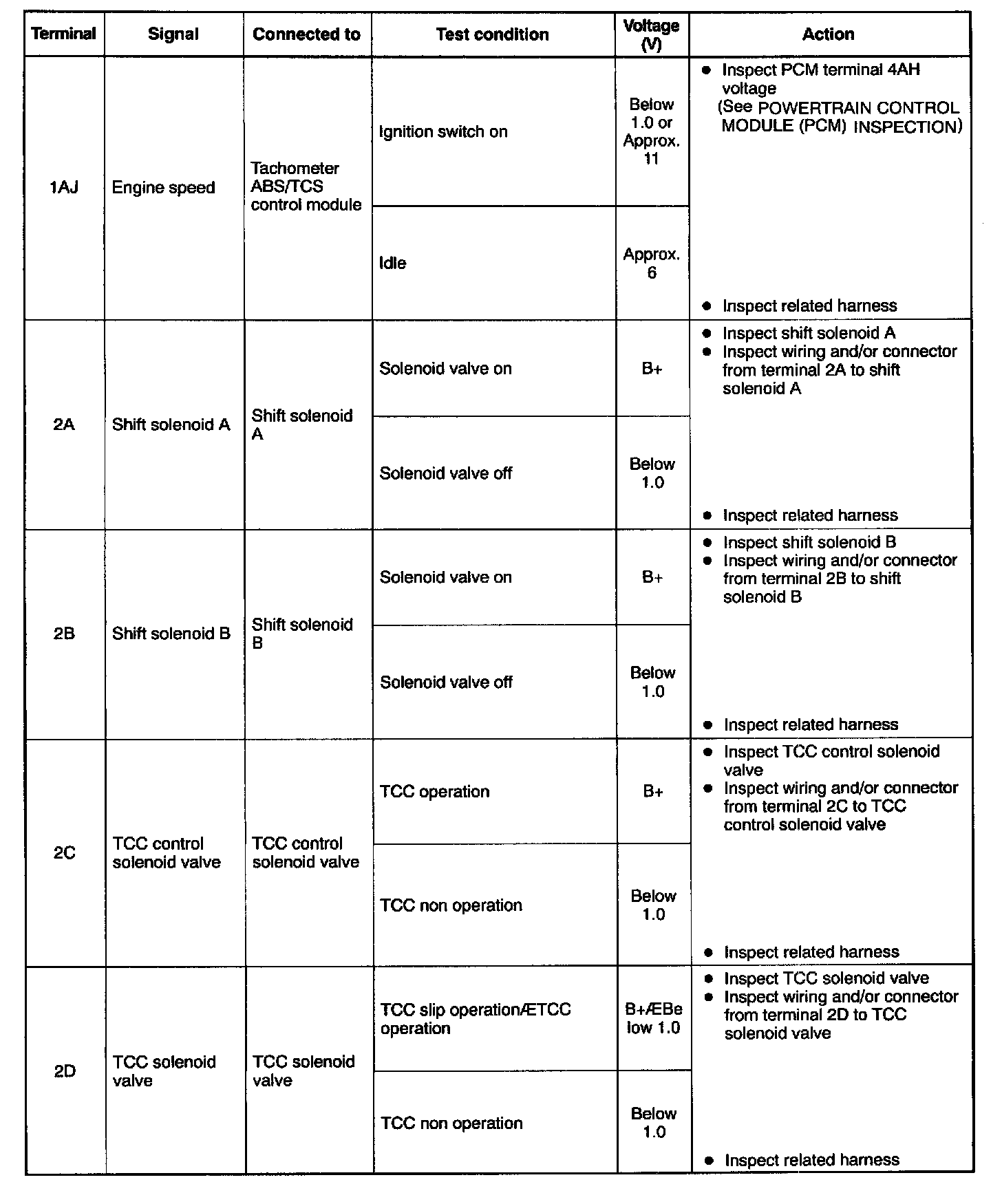

Terminal Voltage Table (Reference)

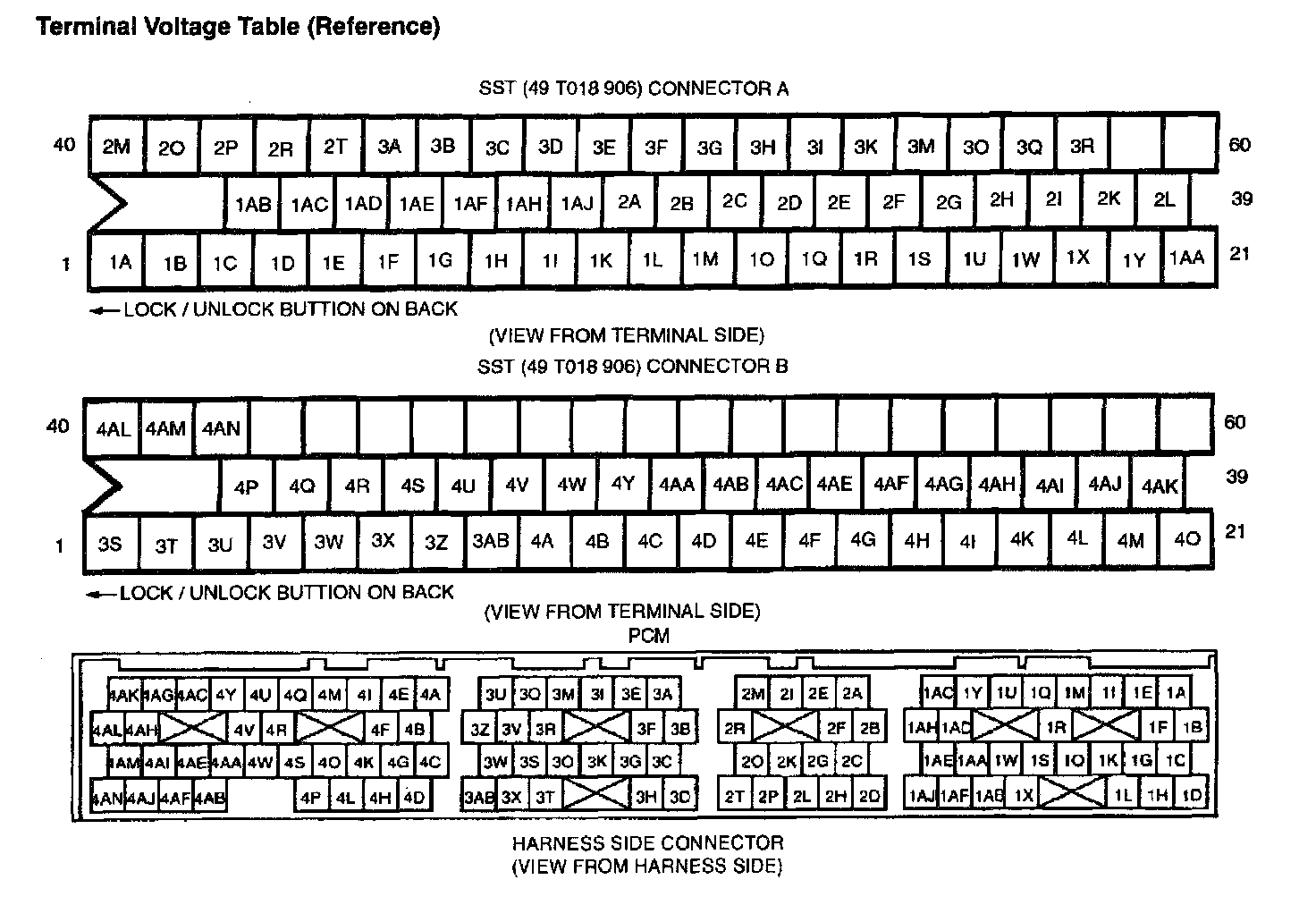

Connector View:





Part 1 Of 11:





Part 2 Of 11:





Part 3 Of 11:





Part 4 Of 11:





Part 5 Of 11:





Part 6 Of 11:





Part 7 Of 11:





Part 8 Of 11:





Part 9 Of 11:





Part 10 Of 11:





Part 11 Of 11:
