Home >> Mazda >> 2000 >> MPV ES V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Cable >> Testing and Inspection

Ignition Cable: Testing and Inspection

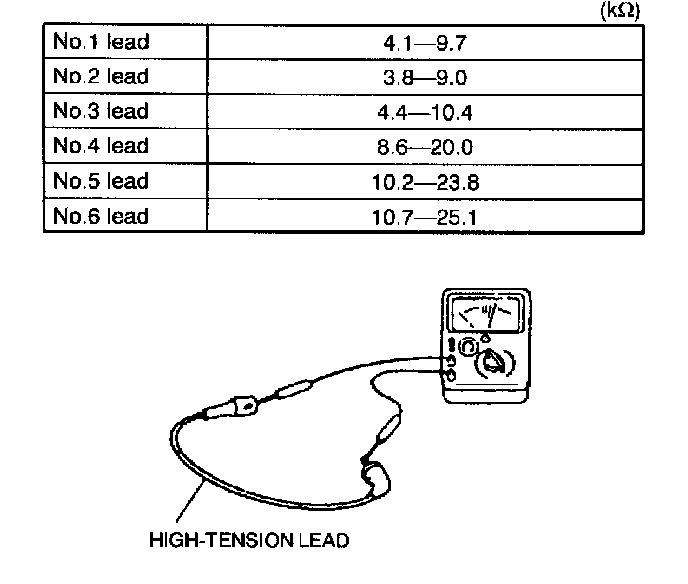

Specification:




1. Measure the resistance of the high-tension leads using an ohmmeter.
- If not as specified, replace the high-tension leads.
