Home >> Mazda >> 2000 >> MPV DX V6-2.5L DOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Service and Repair

Cruise Control Module: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the lower panel.

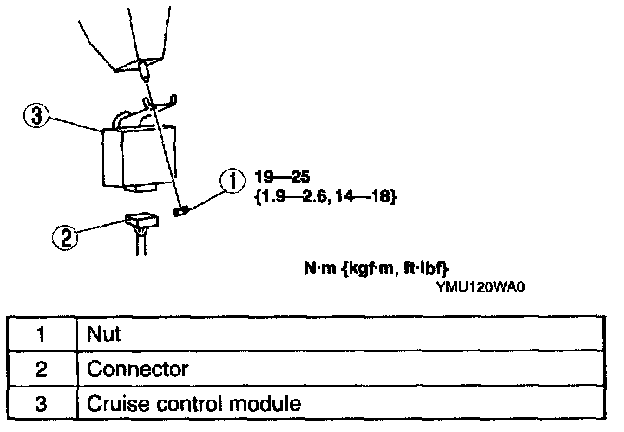

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
