Home >> Mazda >> 2000 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Torque Specifications

Torque Specifications

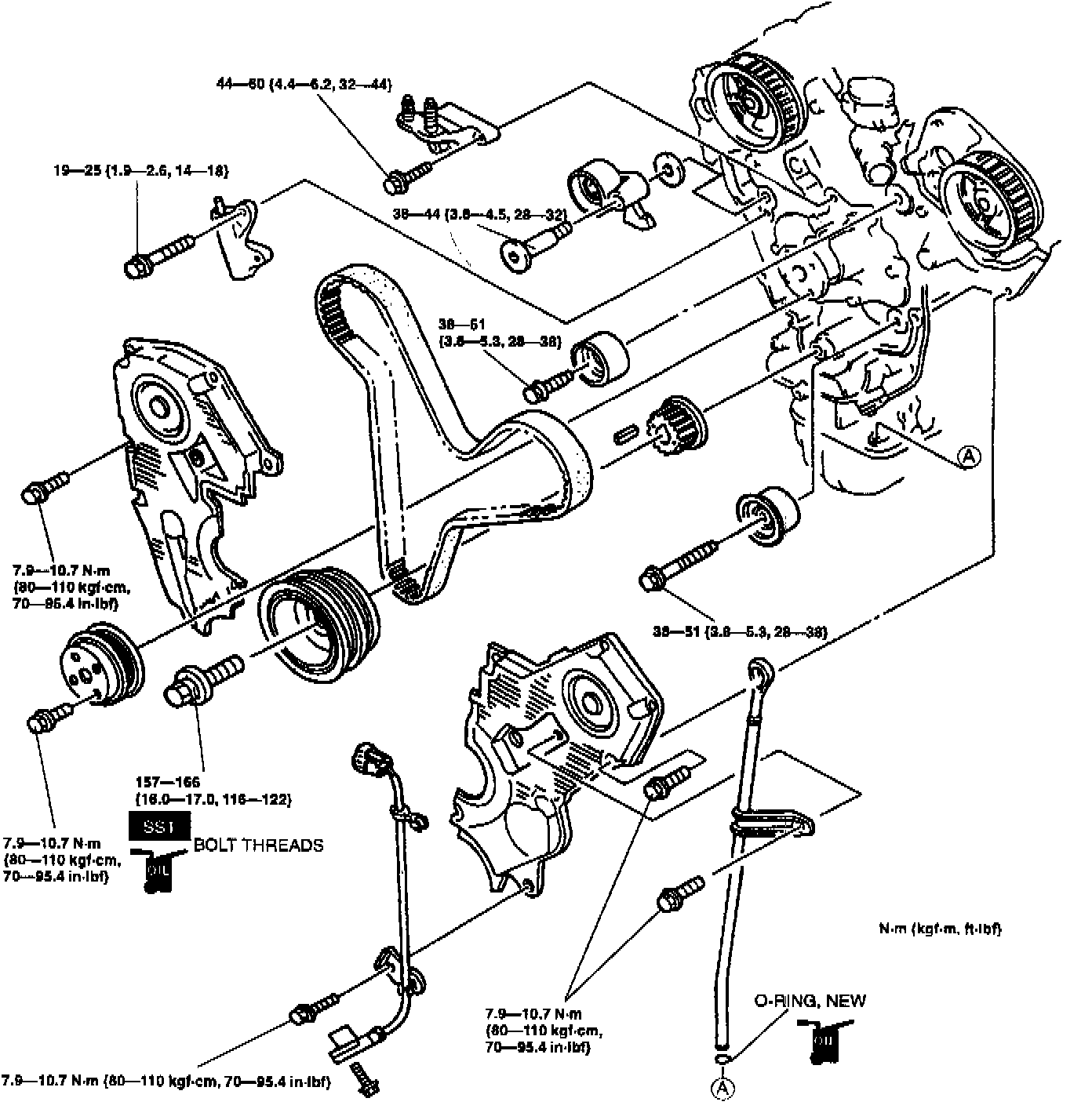

Timing Components:

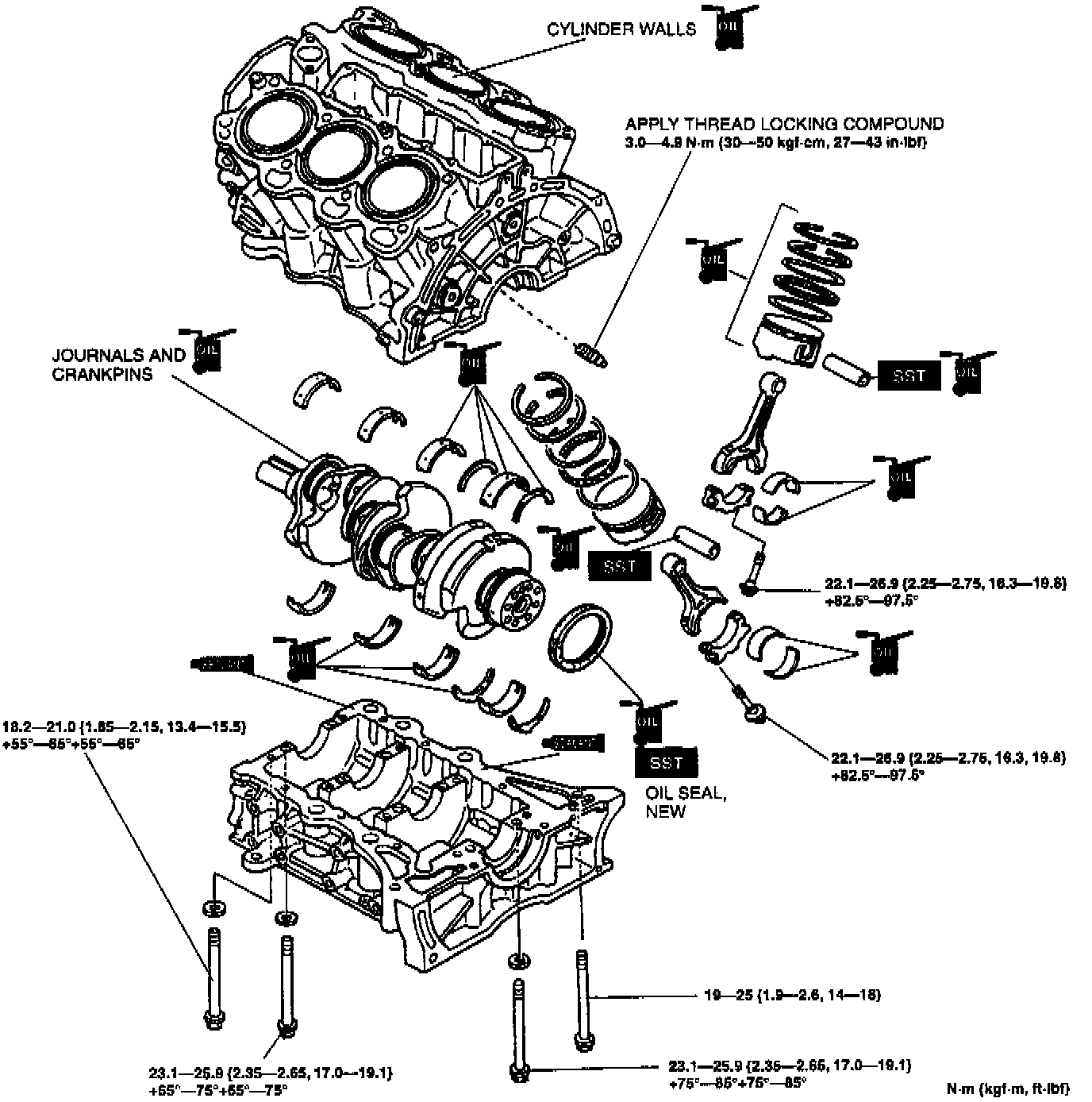

Lower Engine:

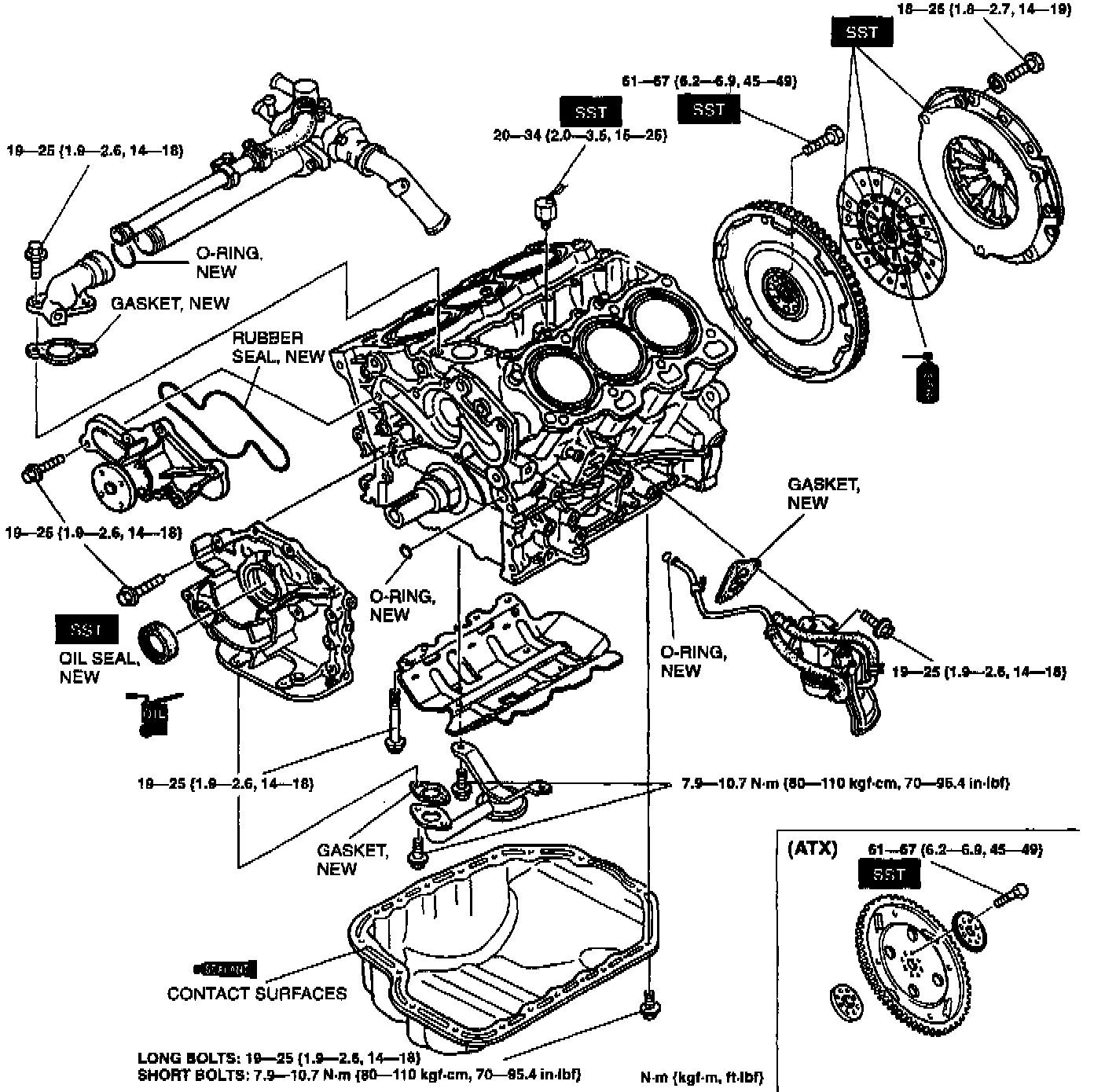

Engine Block:

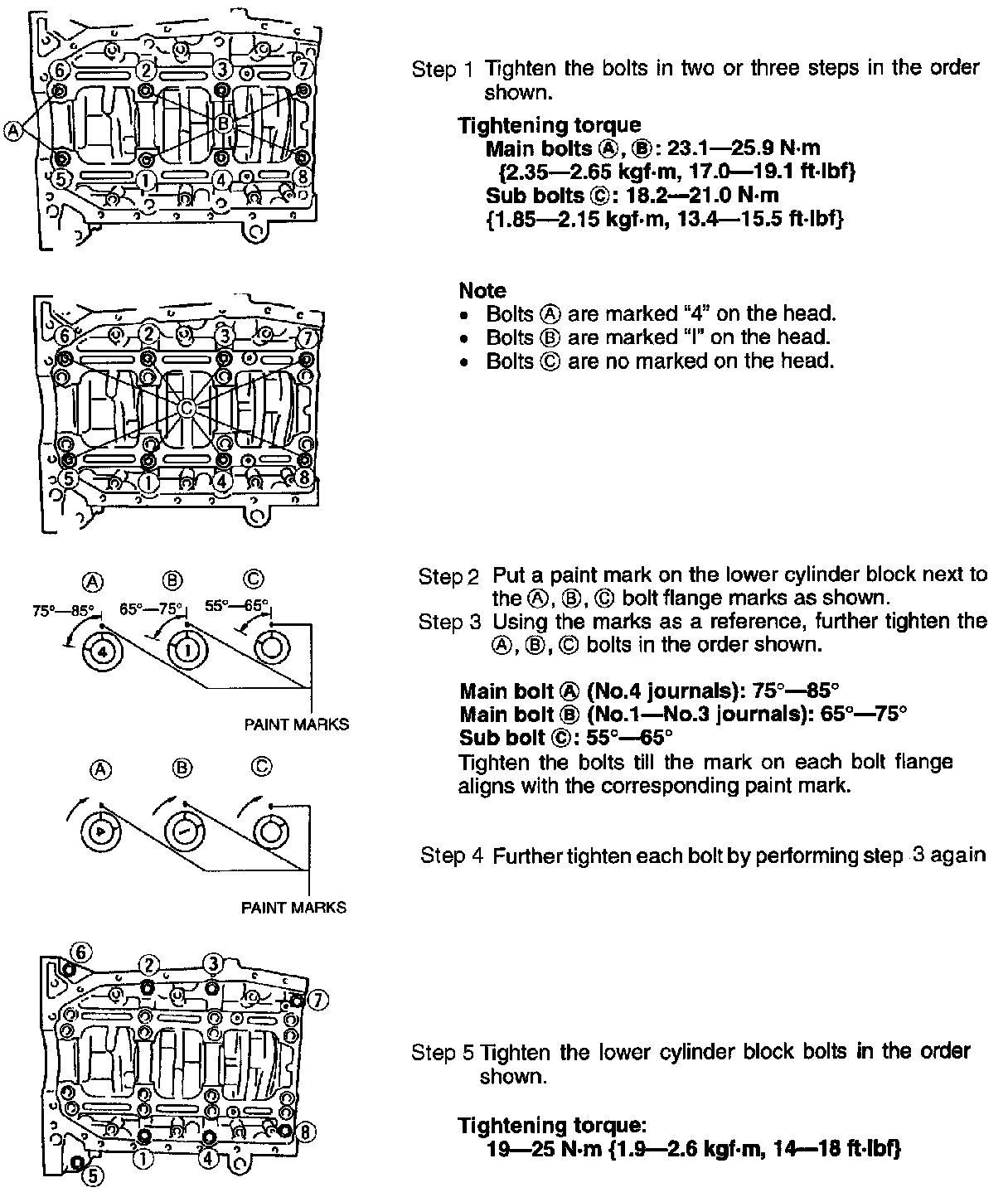

Tightening Sequence:
