Neutral Switch Inspection

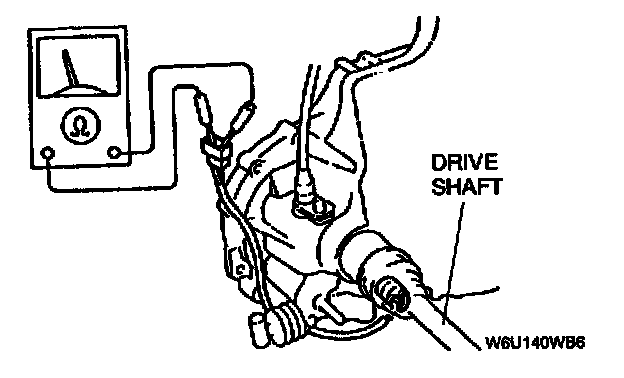

1. Disconnect the neutral switch connector.

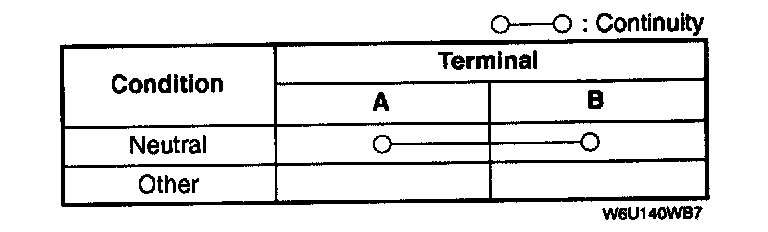

2. Check continuity of the switch by using an ohmmeter.
- If not as specified, check the related harness and neutral switch continuity.
