Component Inspection

1. Disconnect the battery negative cable.
2. Disconnect the throttle position sensor connector.

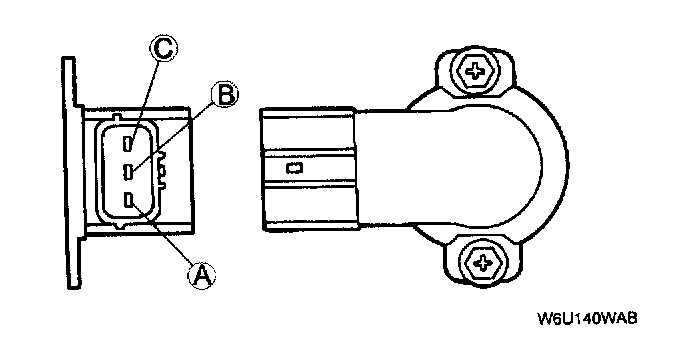

3. Using an ohmmeter, measure the resistance between throttle position sensor terminals A and C.
- If not as specified, replace the throttle position sensor.

Specification : 4.0 - 6.0 kohms

4. Reconnect the throttle position sensor connector.
