Rear Wheel Alignment

TOTAL TOE-IN ADJUSTMENT
1. Remove the access hole caps of the rear crossmember.
2. Loosen the cam nut on the lateral link.

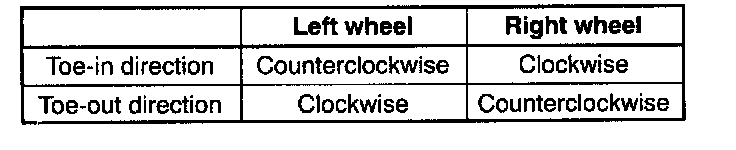

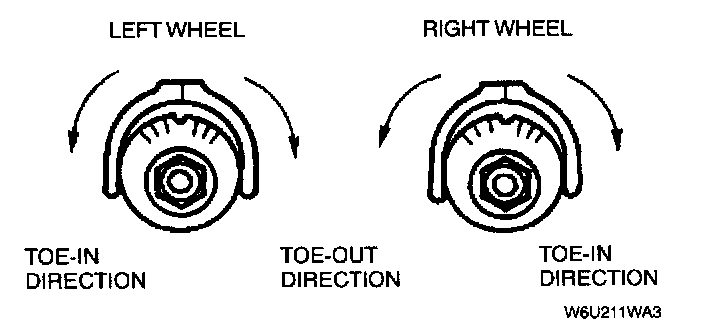

3. Turn the adjusting cam bolt as indicated to adjust the toe-in.

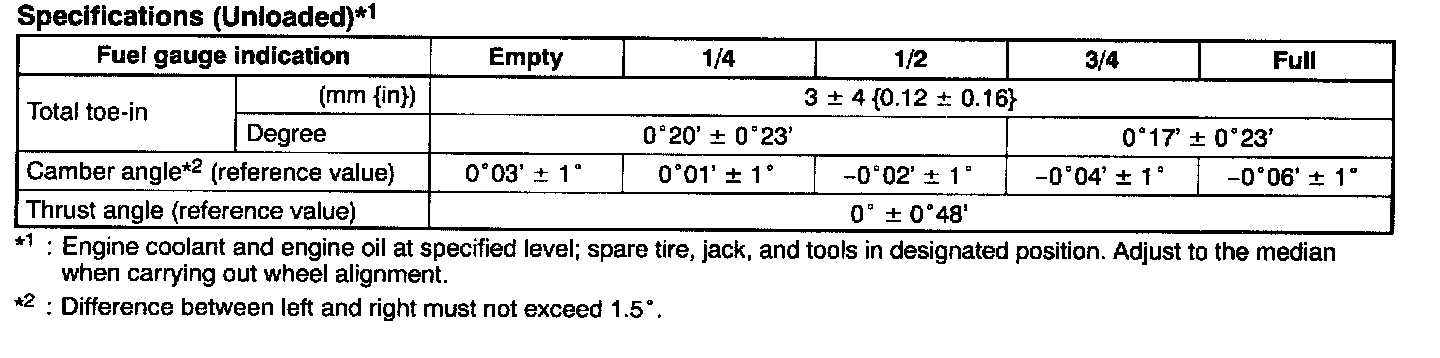

Note: Turning the adjusting cam bolt one graduation changes the toe-in about 2.9 mm (0.11 inch) (0°18').

4. Tighten the cam nut.
Tightening torque 87 - 116 Nm (8.8 - 11.9 kgf-m, 63.7 - 86.0 ft. lbs.)
5. Install the caps.
