Main Relay (Computer/Fuel System): Testing and Inspection

Main Relay Location Engine Compartment Left Fender.:

Inspection
1. Verify that the main relay clicks when the ignition switch is turned ON and OFF.

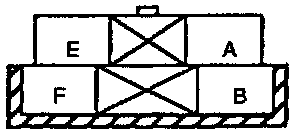

Main Relay Connector:

2. Apply battery positive voltage (B+) to terminal E and ground terminal A of the relay.

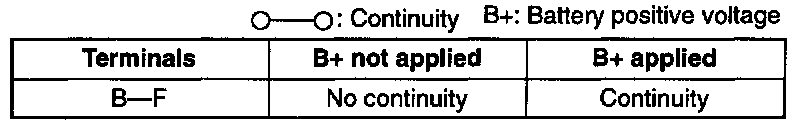

Main Relay Testing Details:

3. Check continuity of the relay as shown.
4. If not as specified, replace the main relay.
