Cruise Control Module: Service and Repair

Removal / Installation

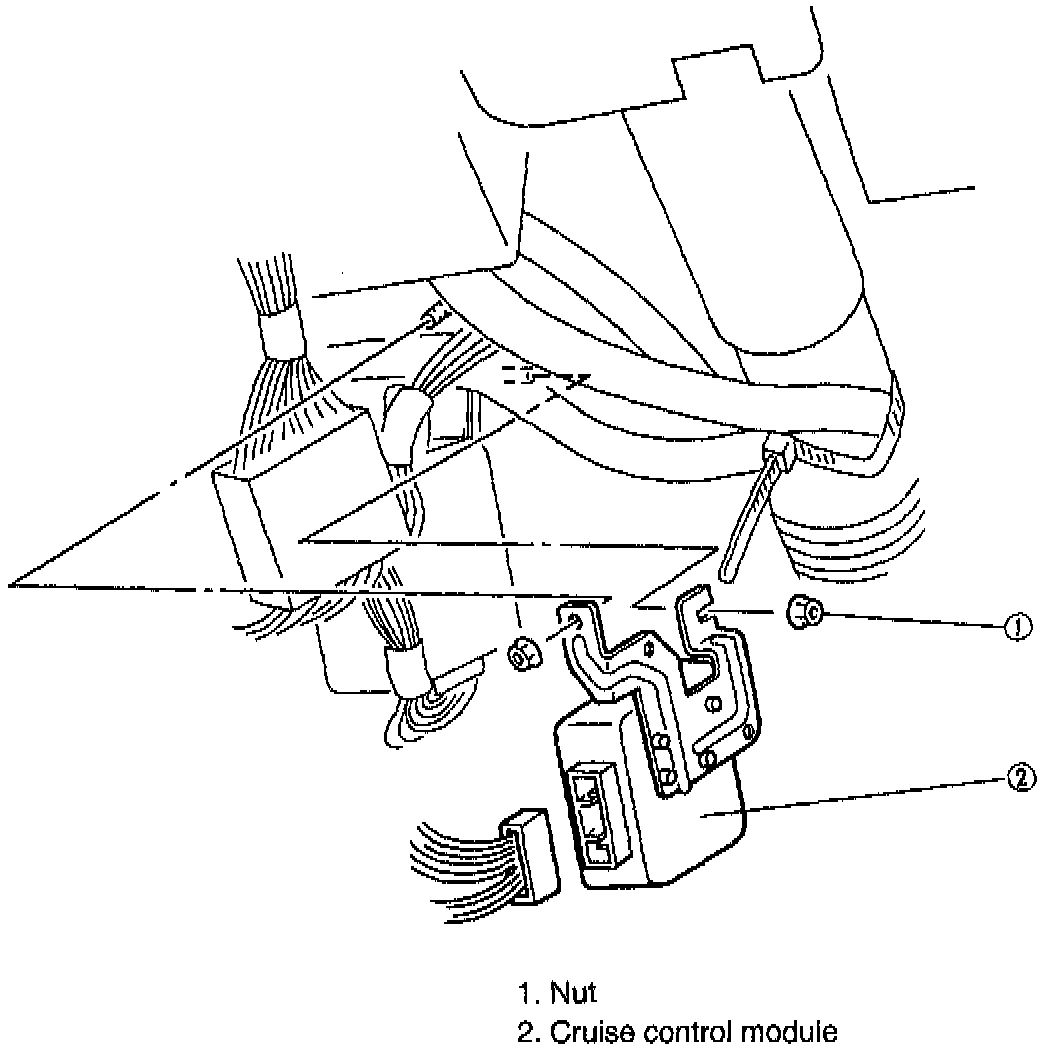

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
3. After installing the cruise control module, verify that the cruise set indicator light in the instrument cluster illuminates when the ignition switch and cruise control main switch are on.
