RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
>>
Terminals 1I-1P
Terminals 1I-1P

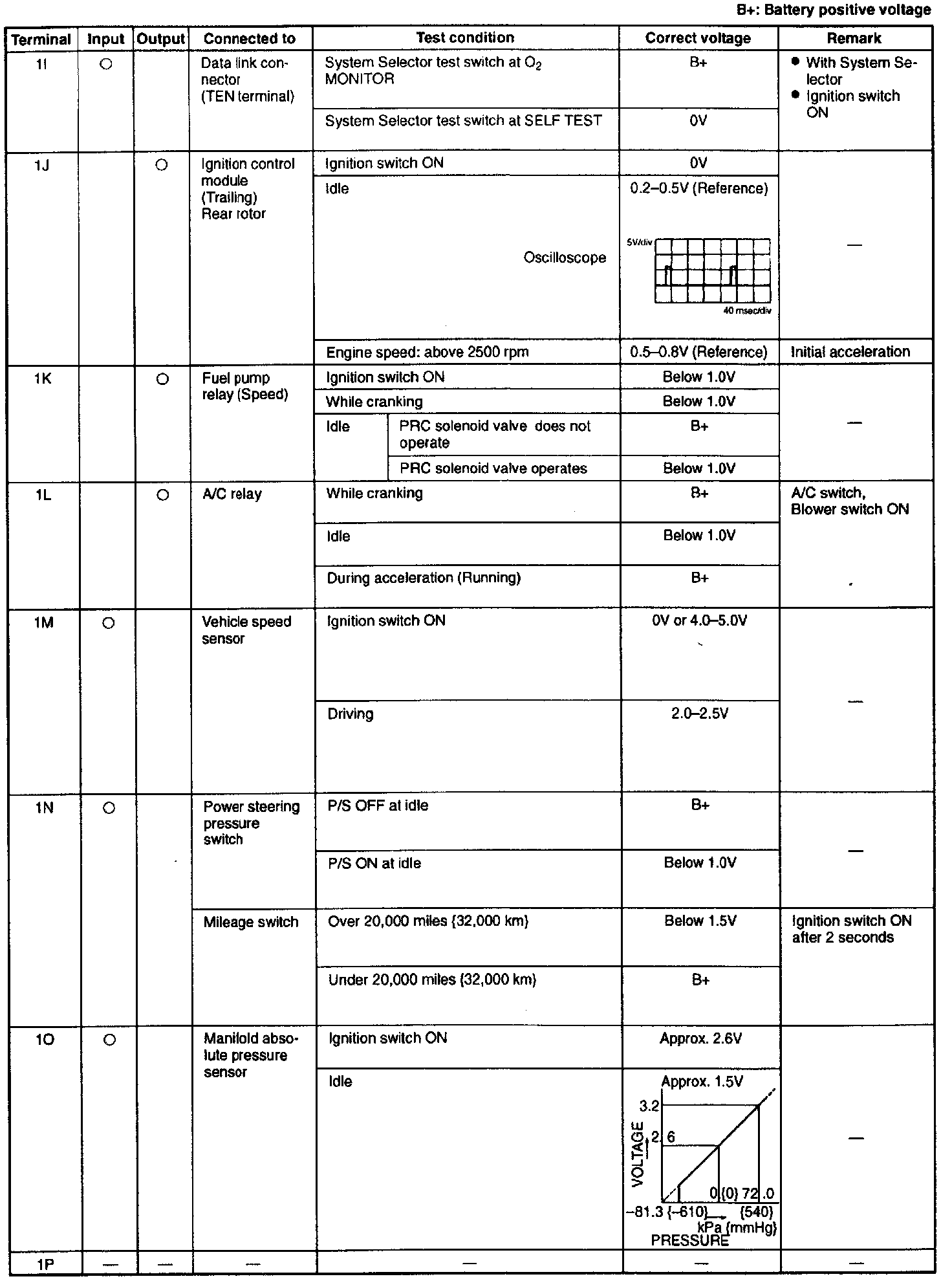

Terminal Voltage Charts:
