lemon-mirror
:
Home
>>
Mazda
>>
1995
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Terminals 4H-4V
Terminals 4H-4V

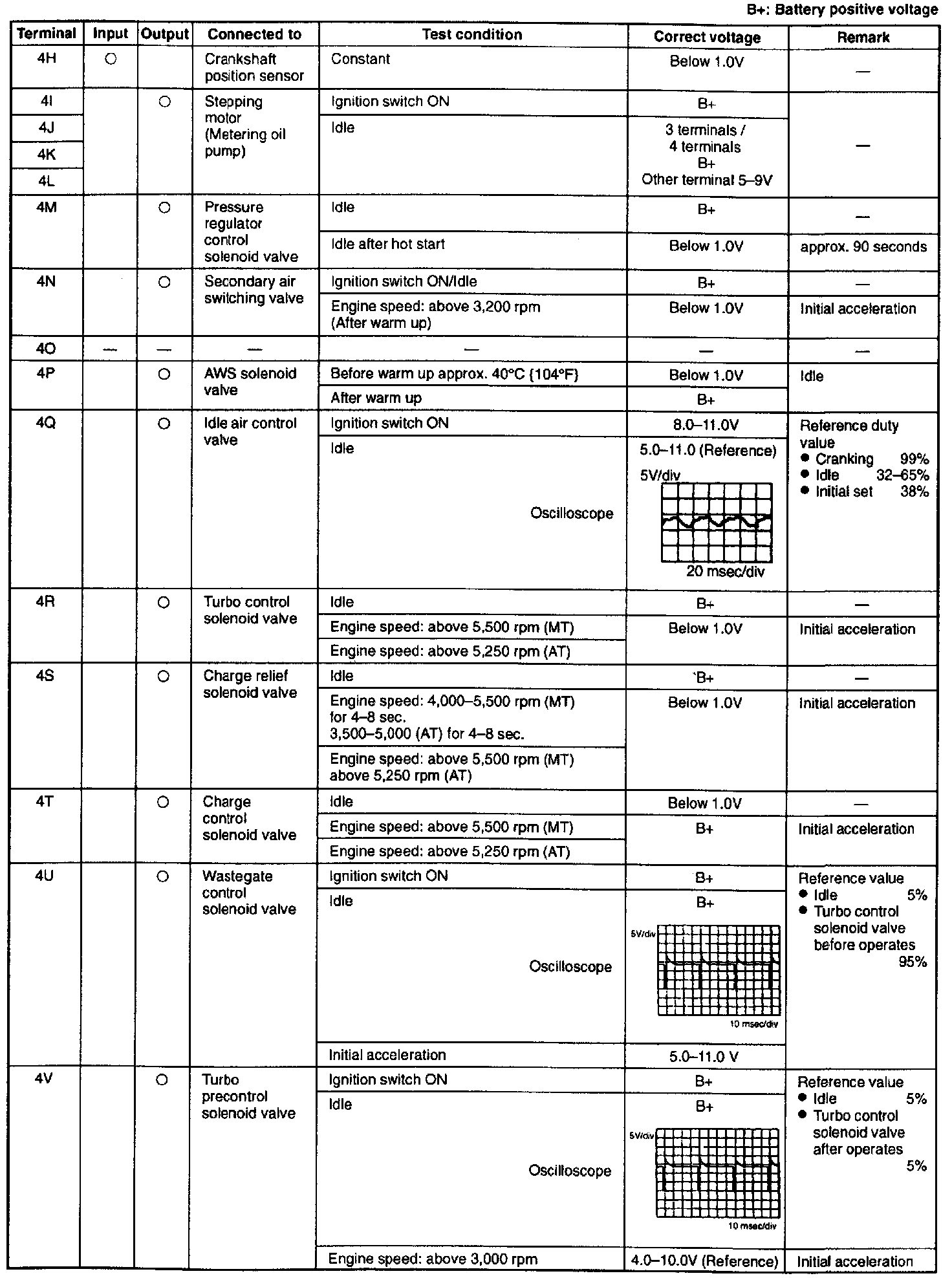

Terminal Voltage Charts:
