Home >> Mazda >> 1995 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminals 2K-3H

Terminals 2K-3H

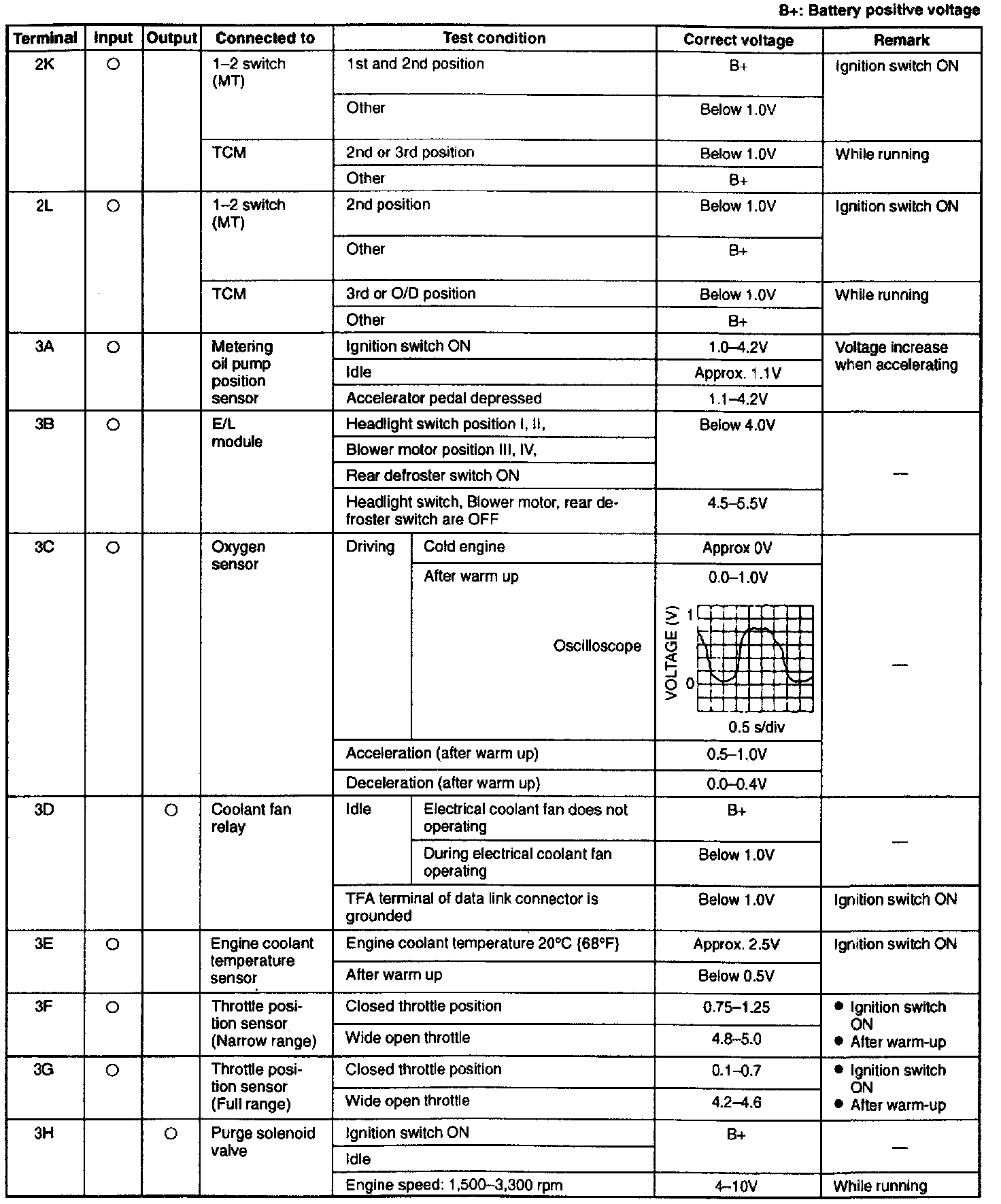

Terminal Voltage Charts:
