Mazda
>>
1995
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Central Control Module
>>
Terminals A-H
Terminals A-H

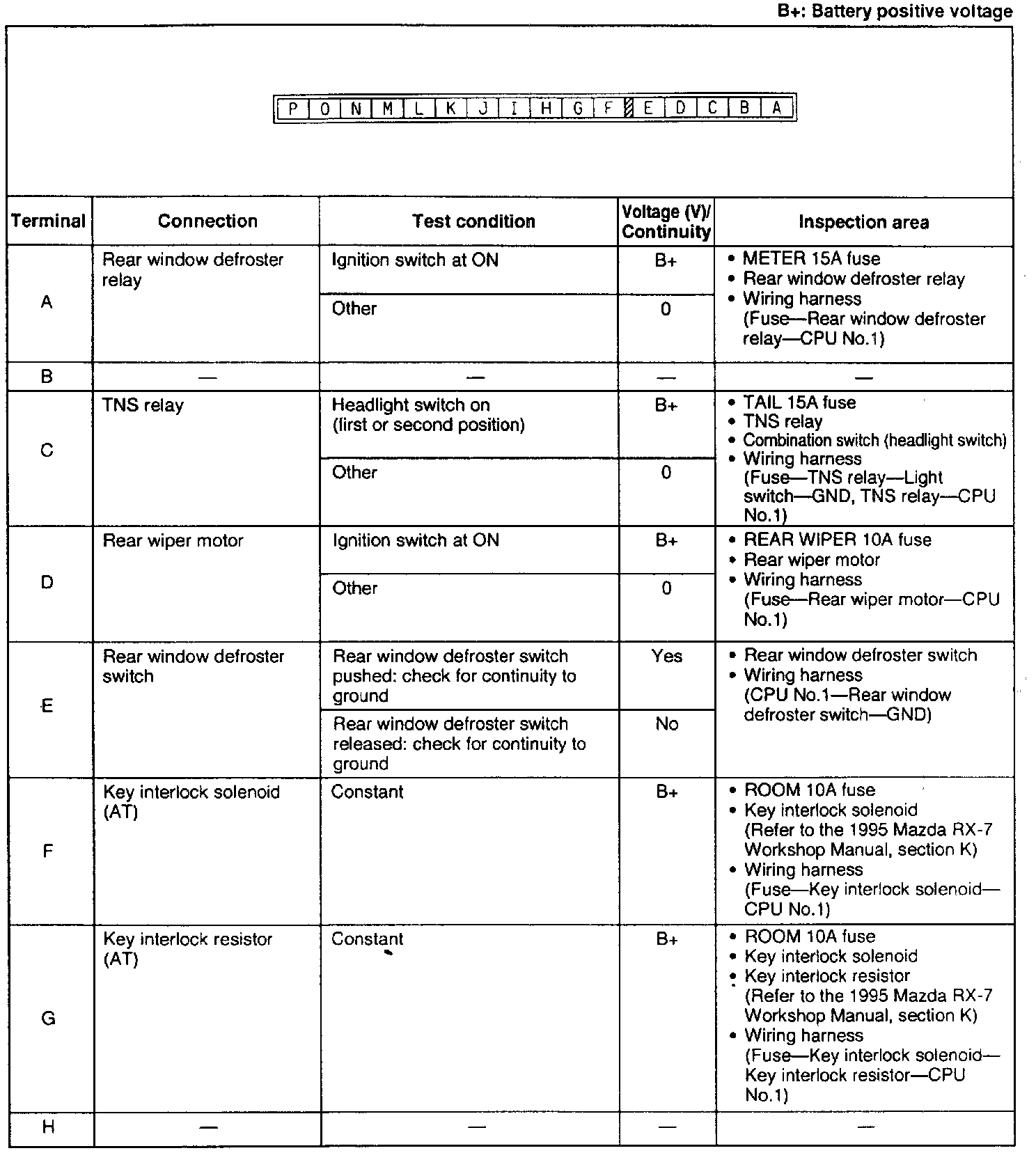

Terminal Voltage Charts:
