RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Central Control Module
>>
Terminals 3H-3H
Terminals 3H-3H

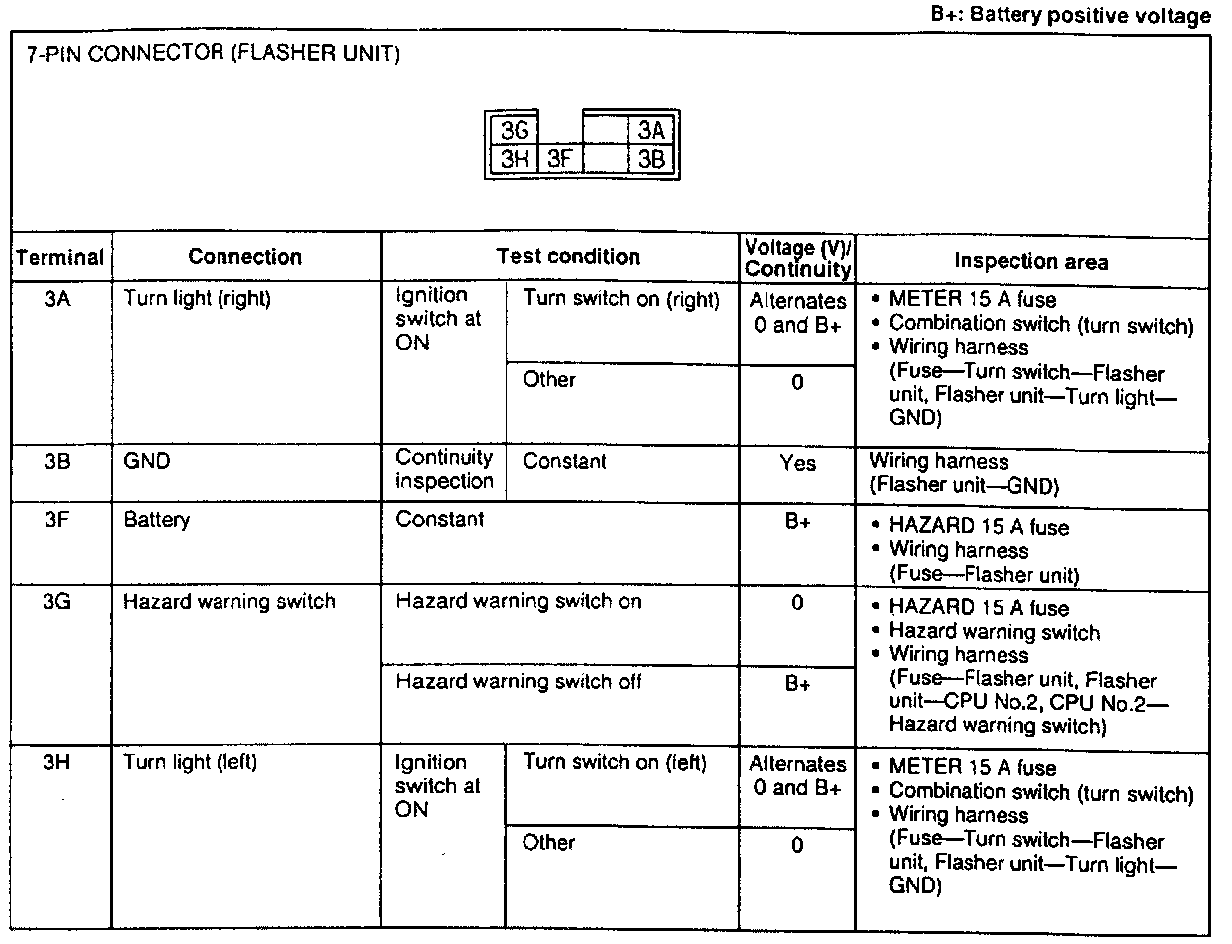

Terminal Voltage Charts:
