Home >> Mazda >> 1995 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Central Control Module >> Terminals 1A-1I

Terminals 1A-1I

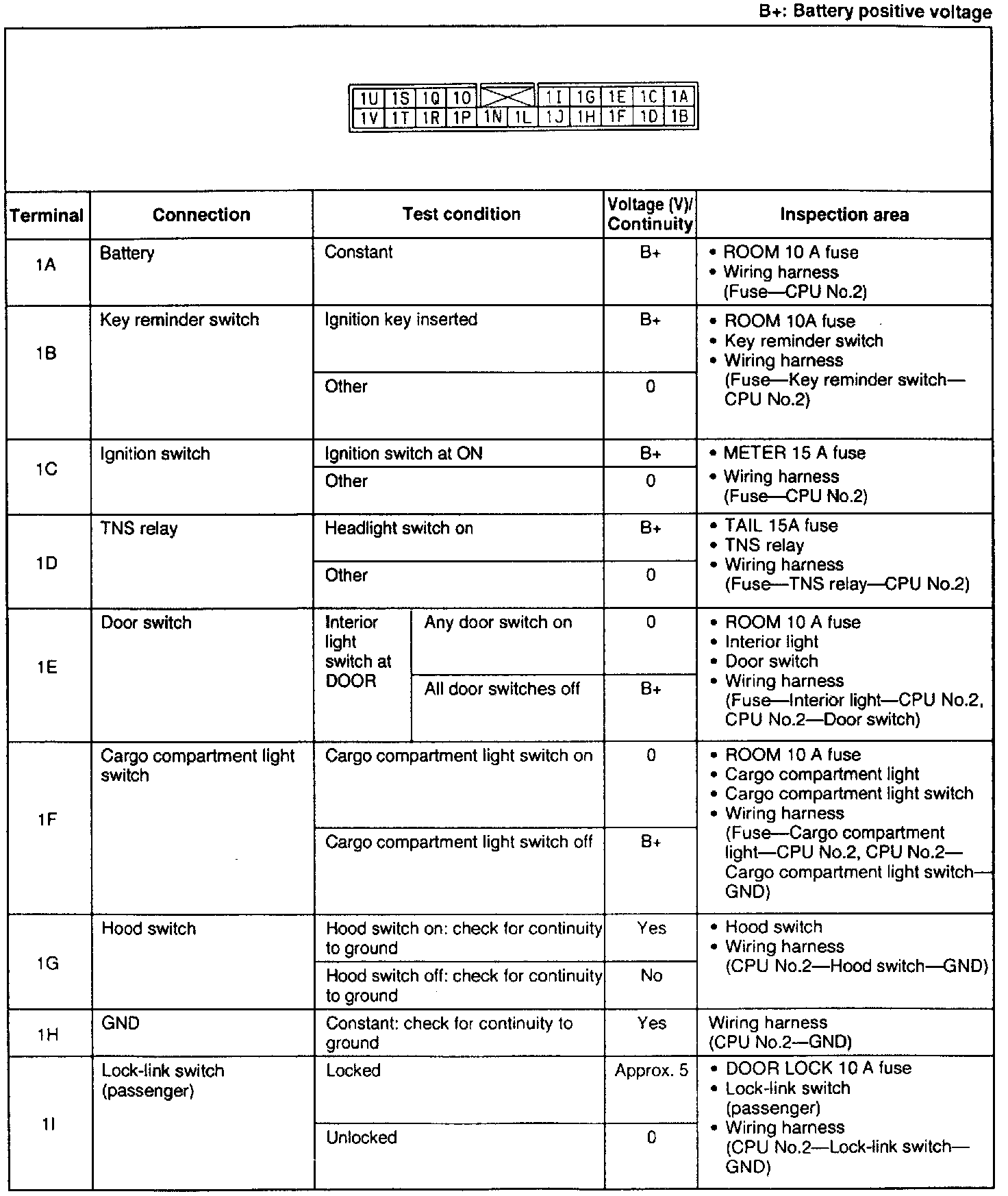

Terminal Voltage Charts:
