Control System Component Overview

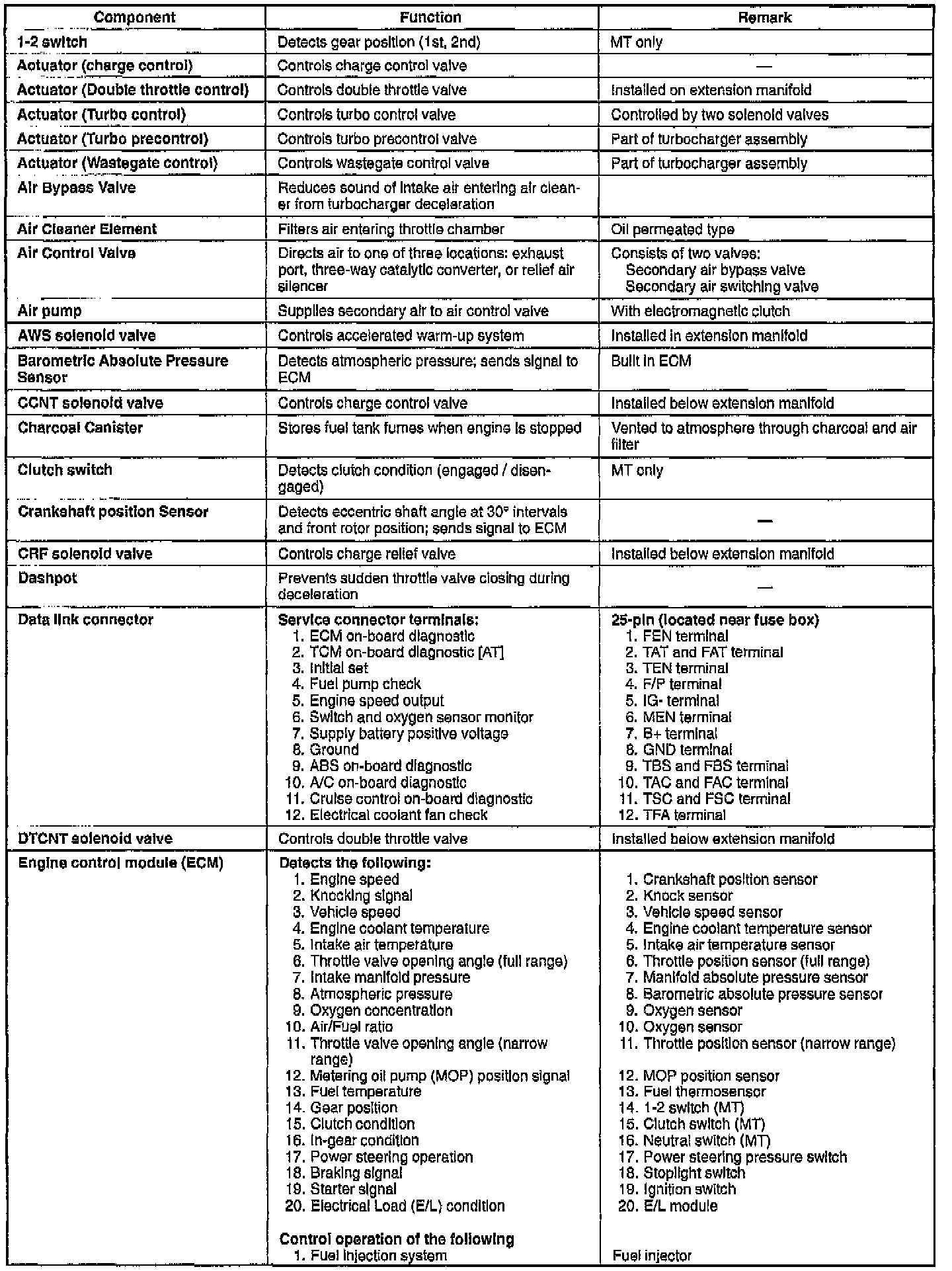

Actuator Through Engine Control Module

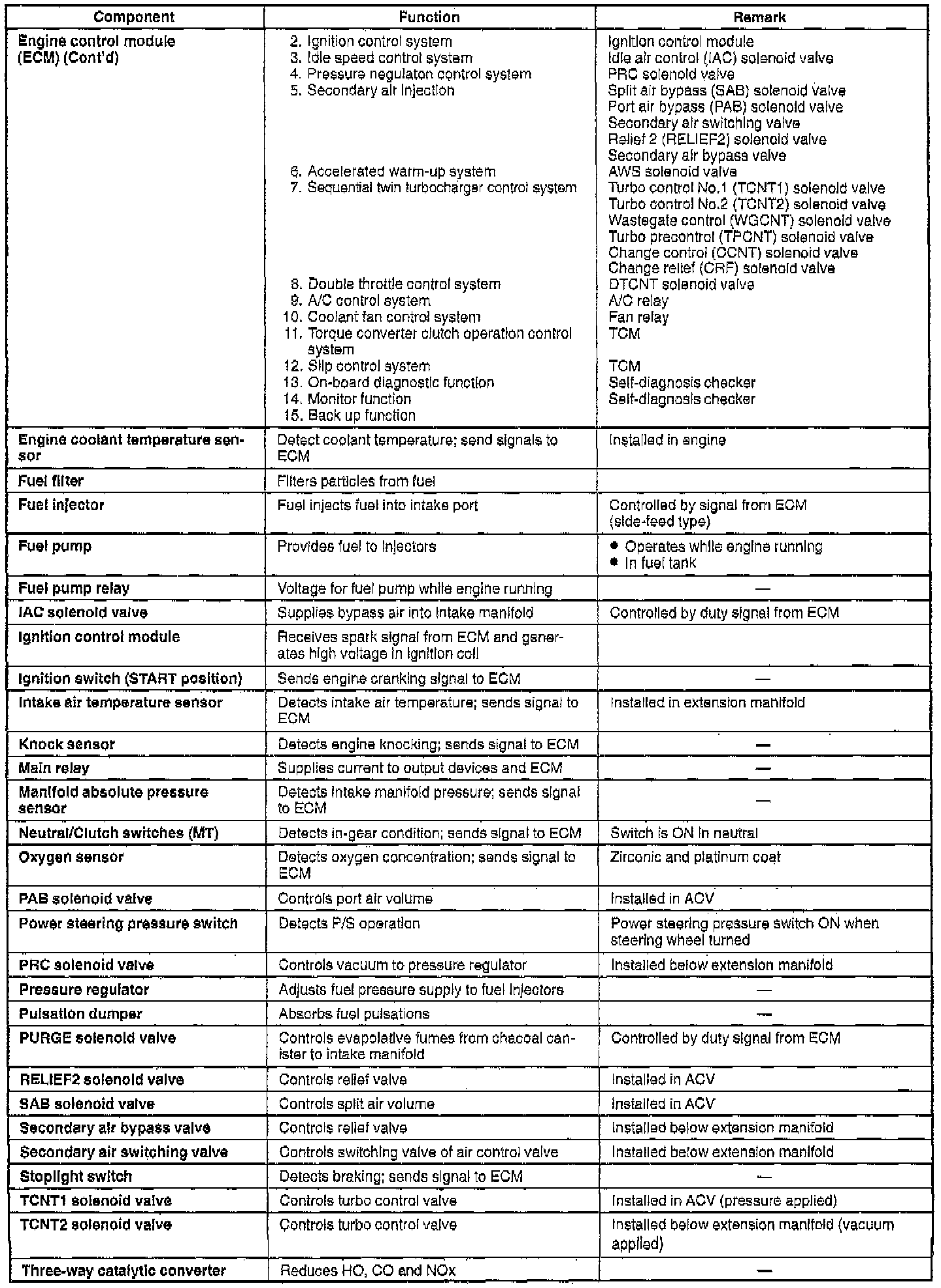

Engine Control Module Through Three-way Catalytic Converter

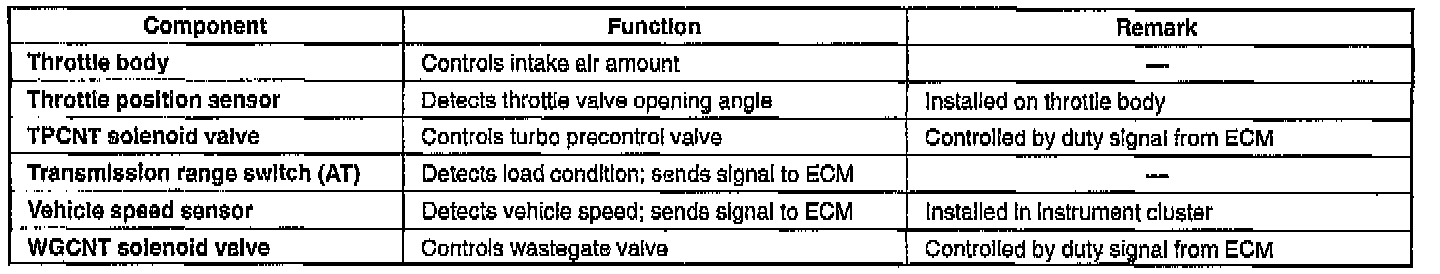

Throttle Body Through Wastegate Control Solenoid Valve
