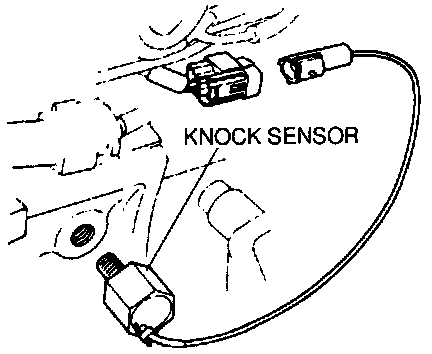

Knock Sensor: Service and Repair

Removal/Installation
1. Disconnect knock sensor connector.
2. Remove the knock sensor.
3. Install in the reverse order of removal.

Tightening Torque: 20-34 Nm (15-25 ft.lb.)
