Electric Load Sensor: Testing and Inspection

1. Connect the SST (Special Service Tool) (System Selector) to the data link connector.
2. Set switch A to position 1 and TEST SW to SELF-TEST.
3. Connect the SST (Self-Diagnosis Checker) to the System Selector and a ground.
4. Set the SELECT SWITCH to position A.
5. Turn ignition switch ON.
6. Check if the monitor lamp illuminates when the following E/L module relative switches are activated.
- Head Light Switch
- Blower Switch
- Rear Window Defroster Switch

Inspection
1. Remove the E/L module.
2. Connect the E/L module connector.

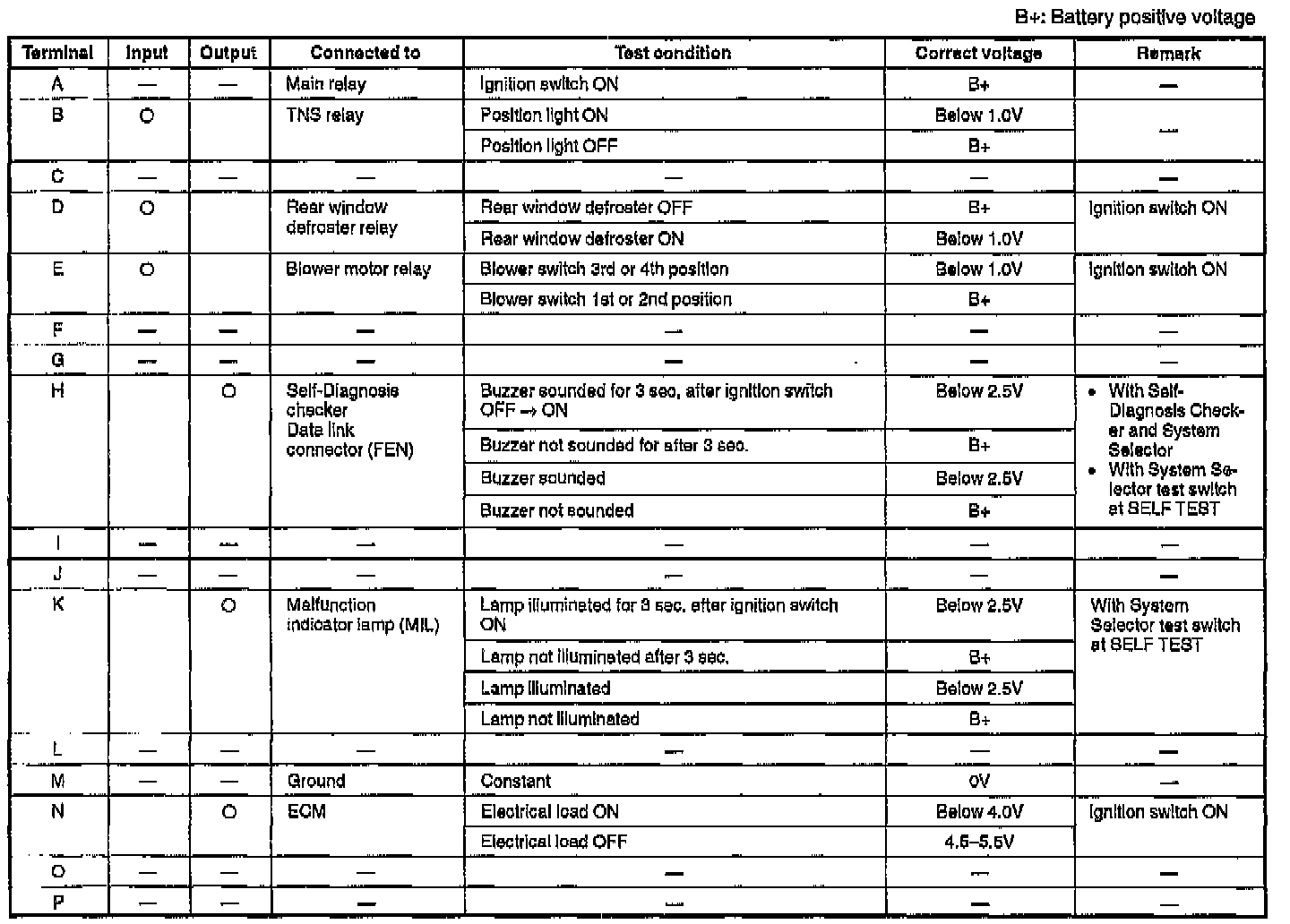

3. Measure the voltage at each terminal by using a voltmeter.




4. If any E/L module terminal voltage is incorrect, check the input or output device and related wiring harness. If they are normal, replace the E/L module.
